Specifications
This production line uses LLDPE as main raw material,and adopts several different kinds of resin.
1.The supplier provide all the machinery and equipment can meet the requirements of agreement and the corresponding standards.
2. Main parts warranty for one year, unit electric parts warranty half a year.
3.The supplier should be 12 months after shipment in equipment, material and process of design defects caused by any free on the damage to the machinery and equipment repair.
4.The supplier would be irresponsible for error handing, assembly, tighting and operation caused by damage.
» Features and application

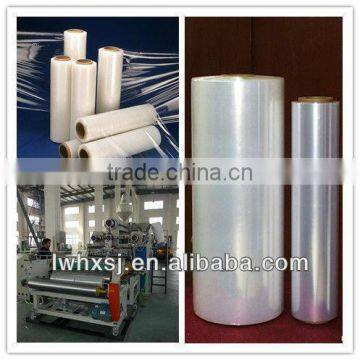

1.This unit is mainly used to produce the packaging film to package food and top grade texile.The main raw material are LDPE,LLDPE,HDPE and EVA.If adding knurling device,it also can produce knurling film.
2. This unit is composed of efficient extruder, shock chilling constant temperature cooling system, film swing system, corona disposal system, rolling constant swelling automatic control system and extruder constant temperature constant voltage automatic control system.
3.This unit can adopt three extruders to coextrude to produce three-layer(A.B.C)or five-layer(A.C.B.C.A)composite film.This unit also can produce monolayer,double-layer or three-layer plastic packaging film according to the customer requirements.
4.This production line has the advantage of high output,low energy consumption and advanced tension control system. The film tension can be below 10N.m.
» Technical parameters
| Model | 2FM700 | 2FM1250 | 3FM1800 | 3FM2500 |
| Die head width(mm) | 700 | 1250 | 1800 | 2500 |
| Film width (mm) | 500 | 1000 | 1500 | 2200 |
| Film thickness (mm) | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 | 0.02-0.15 |
| Screw dia. (mm) | Ø45×2 | Ø 55 × 2 | Ø65/ Ø 90/ Ø 65 | Ø 90/Ø120/ Ø 90 |
| Screw speed(r/min) | 100 | 100 | 100 | 100 |
| Main motor(kw) | 11 × 2 | 22× 2 | 37/75/37 | 75/132/75 |
| Line speed(m/min) | 100 | 100 | 100 | 100 |
| Winding dia. (mm) | Ø 600 | Ø 600 | Ø 800 | Ø 800 |
