Specifications
1. raw material: LDPE or LLDPE2.single screw
3. sticking property

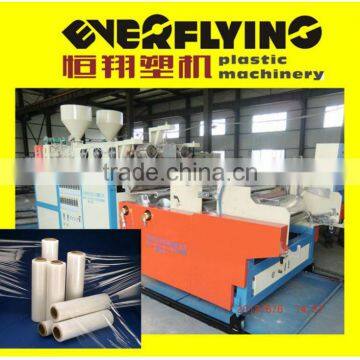

Cast Film Making Machine
Structural characteristics:
1. The machine set is applicable for producing LDPE or LLDPE plastic cast film.
2. It adopts single screw extruder.
3. When adopting two extruders, different ingredients can be mixed into the raw material
4. Both the screw and barrel adopt 38CRMOALA alloy steel and are nitrogen treated.
5. It adopts circulated water cooling method, and cooling effect is good
6. The coiling device adopts friction coiler
7. Coiler is fitted with deburring device, which makes the coiled film neater.
8. Film can be sticky at one side or both sides.
9. Films are widely used for packaging of building material and hardware fittings.
10. Film produced has good transparency.
Main Technical Parameters:
Model | SJ-50*2 | SJ-65 |
Screw diameter | Φ50MM×2 | Φ65MM |
L/D of screw | 28:1(L/D) | 30:1 (L/D) |
Product’s width | 200-550MM | 200-550MM |
Product’s thickness | 0.015-0.03MM | 0.015-0.03MM |
Main motor power | 7.5KW×2 | 15KW |
Heating power | 30KW | 30KW |
Weight of the machine | ≈2.8T | 3T |
Dimensions of the machine | 5,600×2,600×1,800 MM | 6,000×1,500×2,500 MM |
Pictures:
Extruder and Frame
Extruder and Control Cabinet
Mould
Frame and Extruder
Auxiliary Device (including haul-off device and Coiler)
Auxiliary Device (including haul-off device and Coiler)
Company Image:
Workshop of Laiwu Everflying Machinery Company
Working Office
Qualifcation:
Guarantee:
Machines supplied by our company shall be guaranteed for 12 months.
We will dispatch engineers to customer's factory for installation and adjustment, and train staffs about how to operation the machine, and how to solve problems when some problems happen.
