Specifications
1)Deutz diesel generator set2)10kva to 150kva
3)CE & ISO certificates
4)four hours tested
5)two years warranty

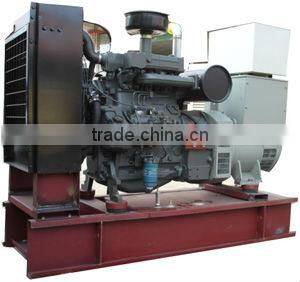

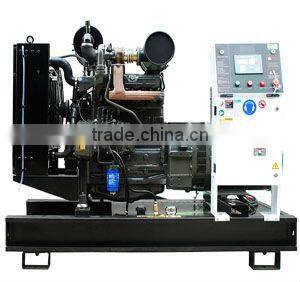

10kva to 150kva Deutz diesel generator set Specification data
|
|
1), Heavy duty of Engine
a,Engine-Industrial 4strokes cooled diesel engine complete with air, fuel and oil filters,
b,electric starting and charging equipment, engine protection against oil low water level.
c, Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45°C,radiator suitable for higher temperature are available. Low water level protection fitted as standard.
d, Exhaust system-Heavy duty industrial exhaust silencer with flexible piping. Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.
| |

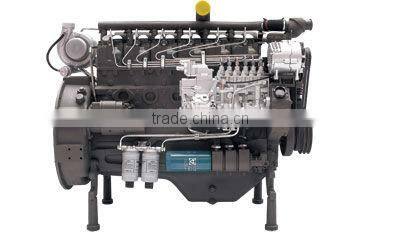

Diesel Engine specification,
| Engine model | D226B-3D,TD226B-3D,TD226B-4D,TD226B-6D,TBD226B-6D,TBD226B-6D5 |
| Type | water cooling, 4 strokes, direct injection |
| Air Intake type | naturally or turbocharged |
| Cylinder number | 4,6 |
| Piston speed | 6m/s |
| Mechanical governor rate | ≤5% |
| Electronical Governor rate | ≤1% |
| Noise Level | ≤96dBA |
2), Reliable quality of alternator
a, Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034.
b,Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity.
c, Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.
| |
Alternator specification,
| Stamford |
| Brushless, self excited, Class "H" insulation, Standard degree of protection is IP23 |
| AVR self regulation, With fan cooling, Resist humid grease |
| AC excitation, roating, rectification tube, Stator frease insulation covered |
| Rotator balance is in accordance with BS5625 standard 12.5 |
| High quality lubrication sealed long-time bearing |
| Rotator sillicon steel close tight |
3), Deutz generator production,
4), Deutz generator test,
5), Deutz generator delivery,
6), Certificate
| | |
