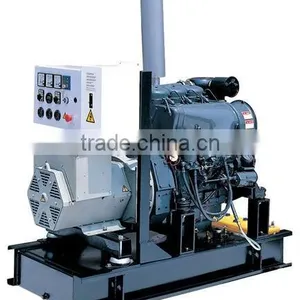

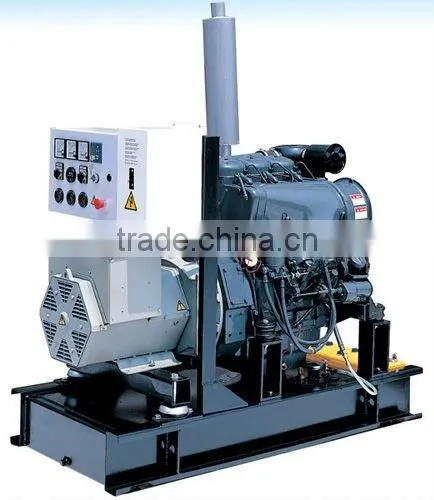

20kw to 100kw Air Cooled Deutz Generator Set

Weifang Huatian Diesel Engine Co., Ltd.

US$ 2,500 - 4,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

20GFA

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name HT

Model Number 20GFA

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60hz

Rated Power 20kw/25kva

Rated Voltage 400/230v

Rated Current 36A

Specifications

1)Air Cooled Generator
2)50/60hz, 3phase and 1 phase
3)2years warranty
4)Power:20kw/25kva
5)Lifetime Service

1,20kw Air Cooled Generator Specification,

GENSET MODEL	20GF
	PRIME	STANDBY
GENSET OUTPUT	20KW	22kw
GENSET OUTPUT	25KVA	27.5KVA
SHORT CIRCUIT PROTECTION	MCCB
VOLTAGE/FREQUENCY/POWER FACTOR	400V,50Hz,0.8lag, 3 Phase and 4 Wires
RELATIVE VOLTAGE ADJUST RANGE	0~5%
MOMENT VOLTAGE ADJUST RATIO	-15%~+20%
STEADY FREQUENCY ADJUST RATIO	0~5%
MOMENT FREQUENCY ADJUST RATIO	3%
TIME OF STEADY VOLTAGE	≤ 4s
TIME OF STEADY FREQUENCY	≤ 3s
WINDAGE OF STEADY VOLTAGE	≤ ±1%
FREQUENCY FLUCTUATION RATIO	0.5%
DIESEL ENGINE MODEL	F3L912D
ENGINE OUTPUT (KW)	24kw
ENGINE CONFIGURATION	In-Line,Air Cooling,Four -Stroke
ASPIRATION	Naturally Aspirated
DISPLACEMENT(L)	3
SPEEDING (R/MIN)	1500
START MODEL	ELECTRIC MOTOR START
SPEED GOVERNOR	Mechanical
FUEL CONSUMPTION G/KW.H)	224
ALTERNATOR	STAMFORD
ALTERNATOR MODEL	162G
TYPE	3 PHASE AND 4 WIRES,BRUSHLESS EXCITATION,SELF-RADIATOR,SELF REGULATING VOLTAGE
INSULATION CLASS	H
APPRXOMATE DIMENSION(MM)	16007501000
Net Weight(KG)	640
