Best Quality CE Approved 500kw Water Cooled Generator Price List/ Diesel Generator Set

Weifang Huatian Diesel Engine Co., Ltd.

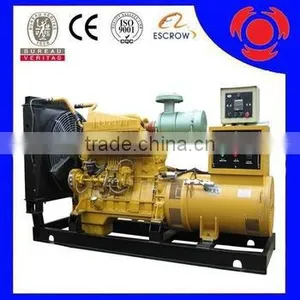

Best Quality CE Approved 500kw Water Cooled Generator Price List/ Diesel Generator Set thumbnail-1
Best Quality CE Approved 500kw Water Cooled Generator Price List/ Diesel Generator Set photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Weichai Huatian
Model Number:
HT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Weichai Huatian
Model Number HT
Output Type AC Three Phase
Speed 1500/1800 rpm
Frequency 50/60 Hz
Rated Power 8kw-2000kw
Rated Voltage 400/230V
Rated Current 14.4A-3600A


Water Cooled Generator Price List/ Diesel Generator Set



-------------------Diesel Generator Main Specification----------------

1. Specification of genset
Gensets model550GF
Prime power(KVA)687.5
Standby power(KVA)750
Rated voltage(V)400/230
Rated current(A)992.3
Rated frequency(Hz)50
Rated Speed1500rpm
Power Factor0.8(lagging)
Dimensions(mm) (L×W×H)3800x1660x2160open type with base fuel tank
Genset Weight(kg)4300
2. Specification of diesel engine
Engine brandWudong
Engine modelWD287TAD58
Number of Cylinders12
Cylinder arrangementin "V"
CycleFour stroke
Air Intake SystemTurbocharged
Fuel SystemDirect Injection
Bore×Stroke (mm×mm)138 x 160
Displacement (Liter)28.7
Speed GovernorElectronic
Cooling SystemForced Water Cooling Cycle
Fuel Consumption at 100% Load (g/kwh)217
Oil Consumption at 100% Load (g/kwh)1.5
Starting MethodDC24V electrical starting
3. Specification of alternator
Alternator brandChinese Stamford
Alternator modelXN-500KW
Number of Phase3
Connecting Type3 Phase and 4 Wires
Number of Bearing1
Protection GradeIP21
Altitude≤1000m
Exciter TypeBrushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation ClassH
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
4. Specification of control Panel
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of GU620A controller:
GU620A is a new generation Automatic control module for single Genset, which adopts bran-new
outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
The module also monitors and protects the engine, indicating operational status, fault conditions and
metering on the front panel LCD and LED’s.
• True RMS measure of voltage and current.
• Multi-Language menu.
• 128 x 64 pixel LCD display.
• 4 analog inputs for kinds of optional sensors that can be used for measuring oil pressure, coolant
temperature, fuel level and so on; parameters can be configured by user.
• More outputs of configurable auxiliary control relays.
• More configurable isolated digital inputs.
• Buttons on control panel are used for selecting control modes, starting and stopping the operating
procedure, displaying data and modifying the parameters. LED indicators are used for indicating
the operation mode of controller and the running status of Genset, and LCD displays each
measuring parameter and status.
• Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with
PC, fully realizing functions of remote signaling, telemetering and remote control, can read and set
the running parameters of controller.
• With GPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB
port for remote communication.
• Optional CANbus, read and control the parameters for ECU engine.
• All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain and replace the device.

------------------------Customers Service Center-------------------------



Manager: GZ

Mobile:0086-13589215967

Whatsapp: 0086-13589215967

Viber: 0086-13589215967

Skype:0086-13589215967

-------------------------------Features & Benefits---------------------------

-------------------------Soundproof & Packaging-------------------------

----------------------------------Control System------------------------------

-----------------------------Certifications Show-----------------------------
