Specifications
1)Diesel Welding Machine Generator2)Welding Current:300A-600A
3)50/60hz, DC voltage
4)Duty Cycle:60%
5)2Years Warranty

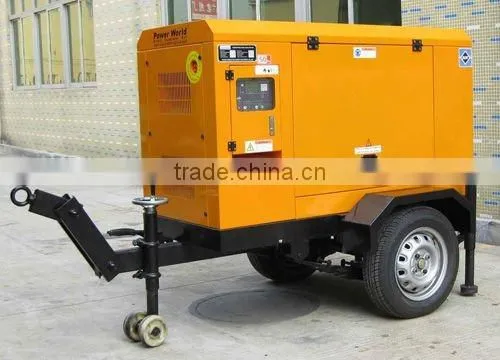

1, Diesel Welding Machine Generator Set Information,
Welding Generator | DC or AC |
Welding Current | 50A-600A |
Type | Both Welding and Generating |
Rated Voltage | 400/230v, 415/240v, 380/220v, 220/127v, 220/115v.
|
Rated Frequency | 50/60HZ
|
Phase | 1 phase and 3 phase |
Duty cycle | 60% |
Steady Voltage Regulation | within ±1% |
Transient Voltage Regulation | -15 to +20% |
Steady Frequency Regulation | ±3% |
Transient Voltage Recovery Time | ≤1s |
Voltage Fluctuation (Tolerance) | within ±0.5% |
Voltage Waveform Distortion | ≤2.5% |
Voltage Unbalance Under Unbalanced Loads | ≤;3% |
Insulation | Class H (125K) |
Generator Type | Open Type, Weatherproof/Soundproof, |
Engine Brand | Cummins/Perkins/Deutz/Ricardo |
Alternator Brand | Brushless |
2,Characteristics and uses
It can balance automatic when voltage is waving, with high resist to electrical wave (V15%).
It has high efficiency, small unload loss, save over 40% than the traditional welder.
3,Generator Set information,
Rated Frequency: 50/60hz.
Rated Voltage:Frequency at 50Hz: Available in 400/230v, 415/240v, 380/220v, 220/127v,220/115v.
Frequency at 50Hz: Available in 480/227v, 440/254v, 220/117v,208/120v. DC type.
Phase: 3 Phase and 1 phase.
Both Generating and Welding.
Welding Current:200A-700A.
4,General Features,
Universal design and manufacture
With most service terminals
You can find spare-parts very easy.
5,Special Type Generator Set
Acoustic Soundproof Generator Set
Trailer-Mounted Generator Set
Automatic(With AMF and ATS Panle)
6, Warranty Information,
Guarantee Peried: 2 years or 2000hours whichever comes first.
24 hours service hotline is alvailable for customers.
We will supply Full Life Technical Consultation at any time free of charge.
| |
| |
| |
| |
