Diesel Engine Water Pump Set

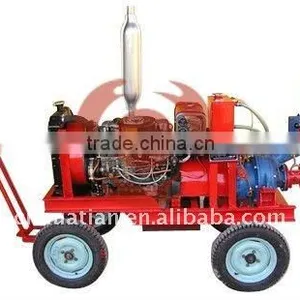

Diesel Engine Water Pump Set thumbnail-1
Diesel Engine Water Pump Set photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Huatian Power
Model Number:
R series
Contact Supplier Request Quote Chat Now
Weifang Huatian Diesel Engine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Huatian Power
Model Number R series
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Other, diesel engine
Standard or Nonstandard Standard
Fuel Diesel
Pressure Low Pressure
Application Other, irrigation or fire

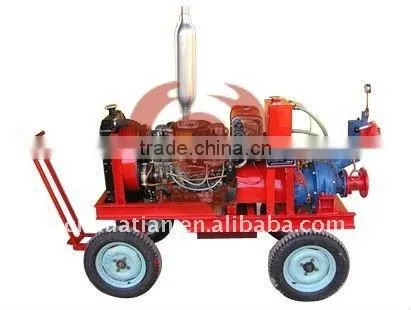

Diesel engine pump water set


Product Description





Usage: Farm irrigation,fire fighting,industrial water supply system



Treated Water: Fresh water,River water



Outflow:30-2016m³/h



Head Lift:7-120m



Diesel Engine



1)Model:R6105AZLD

2)Rated output/Max output(KW):110/121KW

3)Rated speed(r/min):1500

4)Starting method: Electric motor 24V DC

5)Cooling method: Water cooling

6)Governing method: Mechanical/Electronic governing

7)Intake method: turbocharged intercooled

8)Cylinders:6

9)Bore/Stroke:105/130mm

10)Type: in line,4 stroke, direct injection



Water Pump



1)Model:IS250-200-400A

2)Type: Single grade, single suction,centrifugal

3)Outflow:600m3/h

4)Head:45m

5)Shaft power:89KW

6)Inlet diameter:250mm

7)Outlet diameter:200mm

8)Casing material: cast iron

9)Shaft material: cast iron

10)Impeller material:cast iron

11)Sealing method: Stuffing sealing/Mechanical sealing(Optional)



Control System(OPTIONAL):



1)ATS function

2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc

3)Display functions with warning ,start and stop



Standard Equipment:



1)Diesel engine: 1set

2)Water pump: 1set

3)Control panel: 1set

4)Flexible shaft joint: 1pc

5)Common base:1set

   Fuel tank:Optional

6)Accessory spare parts 1set

7)Technical file: 1set

8)With affiliated sensors and sensor wires

9)Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)




Packaging & Shipping

  Diesel Engine Water Pump Set


Our Services



Diesel Engine Water Pump Set


Company Information

  Diesel Engine Water Pump Set

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Weifang Huatian Diesel Engine Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2004
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
