Diesel Engine Centrifugal Water Pump Set for Farm Irrigation or Fire Fighting

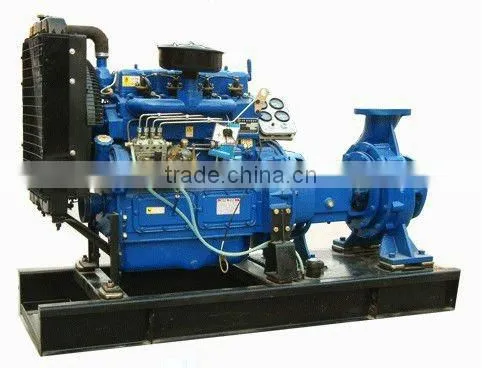

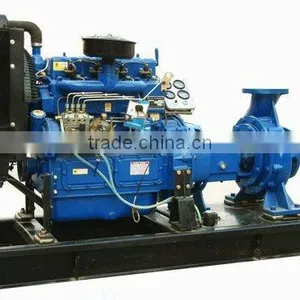

Diesel Engine Centrifugal Water Pump Set for Farm Irrigation or Fire Fighting photo-1
US$ 1 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Shandong, China
Brand Name:
Huatian
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Huatian
Model Number HTSBJZ
Material Metal
Feature Good
Diameter 123 inch
After-sales Service Provided Engineers available to service machinery overseas

Diesel Engine Centrifugal Water Pump Set for Farm Irrigation or Fire Fighting


Product Description



Usage: Farm irrigation,fire fighting,industrial water supply system





Treated Water: Fresh water,River water





Outflow:30-2016m³/h





Head Lift:7-120m







Diesel engine parameters:





1) Model:K4100D



2) Rated output/Max output(KW):30.1/33KW



3) Rated speed(r/min):1500rpm



4) Starting method: Electric motor 12V DC



5) Cooling method: Closed water cooling



6) Governing method: Mechanical/Electronic governing(Optional)



7) Intake method: Natural



8) Cylinders:4



9) Bore/Stroke:100/115mm



10) Type: in line,4 stroke, humid liner, direct injection







Water pump parameters:





1) Model:IS150-125-315



2) Type: Single grade, single suction,centrifugal



3) Outflow:240m3/h



4) Head:29m



5) Shaft power:23.70KW



6) Inlet diameter:150mm



7) Outlet diameter:125mm



8) Casing material: cast iron



9) Shaft material: cast iron



10) Impeller material:cast iron



11) Sealing method: Stuffing sealing/Mechanical sealing(Optional)







Control system(OPTIONAL):





1) ATS function



2) Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc



3) Display functions with warning ,start and stop







Standard equipment:





1) Diesel engine: 1set



2) Water pump: 1set



3) Control panel: 1set



4) Flexible shaft joint: 1pc



5) Common base:1set,fuel tank:optional



6) Accessory spare parts: 1set



7) Technical file: 1set



8) With affiliated sensors and sensor wires



9) Inlet/outlet flange,bolt&screws,bottom valve and filters (OPTIONAL)







Warranty Term:



2year / 3000 working hours(the first reach is valid )
