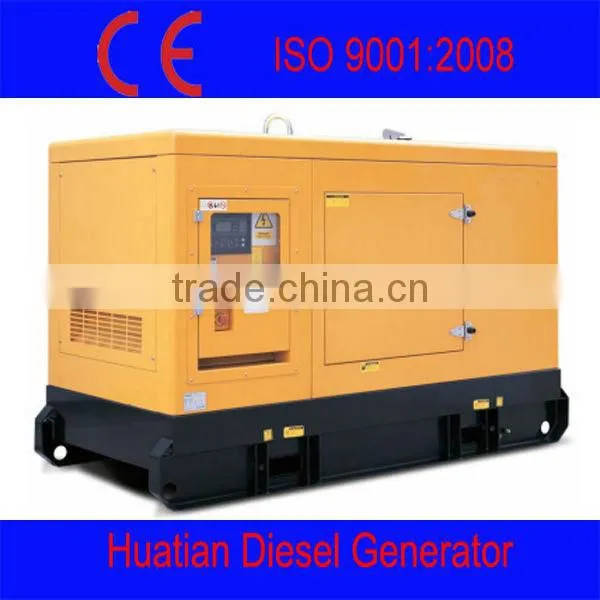

220 Volt Diesel Generator 50 Hz With or Without Silent Canopy

Name: 220 Volt Diesel Generator 50 Hz With or Without Silent Canopy
Brand: Weifang
SKU: 141184624
Availability: InStock

Weifang Huatian Diesel Engine Co., Ltd.

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Weifang

Model Number:

380/220V

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Weifang

Model Number 380/220V

Output Type AC Single Phase

Speed 1500/1800 rpm

Frequency 50/60 Hz

Rated Power 10kva-500kva

Rated Voltage 380/220V

Rated Current 18-902A

220 Volt Diesel Generator 50 Hz With or Without Silent Canopy

-------------------Diesel Generator Main Specification----------------

The main parameters of the set
The model of the unit:	150GF
Power:	150KW
Rated voltage:	400V
Rated current:	270A
Rated frequency:	50Hz
The factor of rated power	COS=0.8lagging
The regulating rate of steady voltage:	≤1%
The regulating rate of instantaneous voltage:	-15%~ +20%
The time of steady voltage:	≤1.5sec
The waving rate of voltage:	≤1.0%
The regulating rate of steady frequency:	≤3%
The regulating rate of instantaneous frequency:	≤±10%
The time of steady frequency:	3sec
The waving rate of frequency:	≤1%
Displacement (L):	3.613
The waste of fuel with full load:	≤254.3g/kwh
Lube-oil consumption (L):	16
Dimension (open type) (L×W×H) (mm):	2350×850×1500
Package(plywood case) dimension (open type) (L×W×H)(mm)	2450×950×1650
Net weight (open type) (kg):	1850
Gross weight (open type) (kg):	2050
The main parameters of the diesel engine
Brand:	Weifang Huatian
Model:	R6113AZLD
Type:	four strokes, waste gas turbine boost,direct spurting type
Cylinder:	6 cylinders
Cooling way:	water cooling
Rotating speed:	1500r/min
The regulation of rotating speed:	mechanical speed regulator
Starting way:	DC24V starting with electricity
The main parameters of the alternator
Brand:	Chinese Stamford
Type:	Brushless ,Self-excite, AVR automatic voltage regulating
The connecting way of the phase:	three phases four lines
Insulation degree:	H degree
Enclosure degree:	IP22
