Specifications
1)Soundproof Generator2)Rated Power:60kva/48kw
3)2 Years Warranty
4)60db noise level
5)Lifetime Service

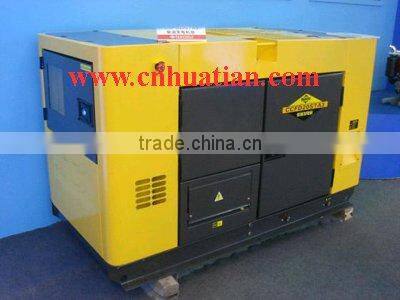

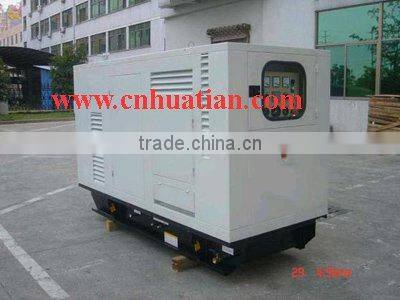

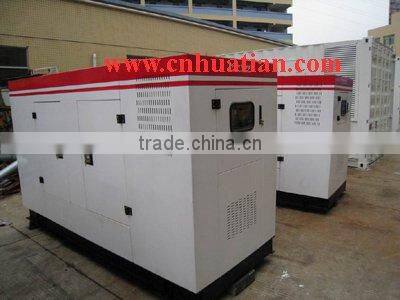

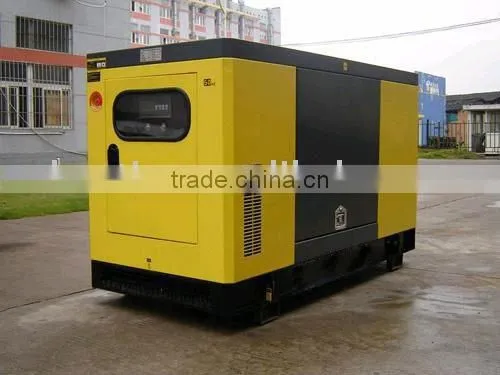

1,Soundproof Generator Information,
GENSET MODEL | 48GFS | |
PRIME | STANDBY | |
GENSET OUTPUT | 48KW | 52.8kw |
GENSET OUTPUT | 60KVA | 66KVA |
SHORT CIRCUIT PROTECTION | MCCB | |
VOLTAGE/FREQUENCY/POWER FACTOR | 400V,50Hz,0.8lag, 3 Phase and 4 Wires | |
RELATIVE VOLTAGE ADJUST RANGE | 0~5% | |
MOMENT VOLTAGE ADJUST RATIO | -15%~+20% | |
STEADY FREQUENCY ADJUST RATIO | 0~5% | |
MOMENT FREQUENCY ADJUST RATIO | 3% | |
TIME OF STEADY VOLTAGE | ≤ 4s | |
TIME OF STEADY FREQUENCY | ≤ 3s | |
WINDAGE OF STEADY VOLTAGE | ≤ ±1% | |
FREQUENCY FLUCTUATION RATIO | 0.5% | |
DIESEL ENGINE MODEL | RICARDO-R4105ZD | |
ENGINE OUTPUT (KW) | 56 | |
ENGINE CONFIGURATION | In-Line,Water Cooling,Four -Stroke | |
ASPIRATION | Turbocharged | |
DISPLACEMENT(L) | 4 | |
SPEEDING (R/MIN) | 1500 | |
START MODEL | ELECTRIC MOTOR START | |
SPEED GOVERNOR | Mechanical | |
FUEL CONSUMPTION G/KW.H) | 224 | |
ALTERNATOR | STAMFORD/COPY | |
ALTERNATOR MODEL | 224E | |
TYPE | 3 PHASE AND 4 WIRES,BRUSHLESS EXCITATION,SELF-RADIATOR,SELF REGULATING VOLTAGE | |
INSULATION CLASS | H | |
APPRXOMATE DIMENSION(MM) | 2800*1150*1850 | |
Net Weight(KG) | 1700 | |
2, Other optional configuration,
Engine and alternator brand.
Any colour.
Urgent Condition Protection Panel.
AMF and ATS.
Silent/Soundproof Canopy,with 60db noise level.
Wheels Trailer.
3,Commercial Term,
Warranty: 2 Years.
Payment: T/T or L/C.
Delivery:15days.
Minimum Order Quanty:1 Piece.
 |
|
|
