Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Weifang Diesel Generator Set 500kva/400kw Genset

Weifang Diesel Generator Set 500kva/400kw Genset

Name: Weifang Diesel Generator Set 500kva/400kw Genset
Brand: Huatian Power
SKU: 141184612
Availability: InStock

Weifang Diesel Generator Set 500kva/400kw Genset thumbnail-1

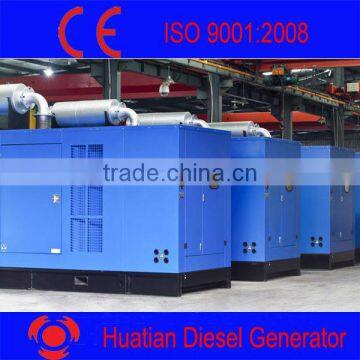

Weifang Diesel Generator Set 500kva/400kw Genset photo-1

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Huatian Power

Model Number:

500kva

Contact Supplier Request Quote Chat Now

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Huatian Power

Model Number 500kva

Output Type AC Three Phase

Speed 1500/1800 r/min

Frequency 50/60Hz

Rated Power 500kva/400kw

Rated Voltage 380/400V

Rated Current 721A

Weifang Diesel Generator Set 500kva/400kw Genset

-------------------Diesel Generator Main Specification----------------

Specification of genset
Gensets model	500GF
Prime power(KW)	500
Rated voltage(V)	400/230
Rated current(A)	902.1
Rated frequency(Hz)	50
Rated Speed	1500rpm
Power Factor	0.8(lagging)
Dimensions(mm) (L×W×H)	4900x2250x3600	silent type
Net Weight(kg)	8700
Specification of diesel engine
Engine brand
Engine model	KTAA19-G6A
Number of Cylinders	6
Cylinder arrangement	Vertical in-line
Cycle	Four stroke
Air Intake System	Turbocharged and Air to Air Aftercooled
Fuel System	PT type fuel pump, EFC
Bore×Stroke (mm×mm)	159 x 159
Displacement (Liter)	18.9
Compression Ratio	13.0:1
Speed Governor	Electronic
Cooling System	Forced Water Cooling Cycle
Total lubrication system capacity (L)	50
Fuel Consumption at 100% Load (L/h)	106.5
Starting Method	DC24V electrical starting
Specification of alternator
Alternator brand	Chinese Stamford
Number of Phase	3
Connecting Type	3 Phase and 4 Wires
Number of Bearing	1
Protection Grade	IP21
Altitude	≤1000m
Exciter Type	Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class	H
Telephone Influence Factor (TIF)	≤50
THF	≤2%
Voltage Regulation, Steady State	≤±1%
Transient State Voltage	≤-15%~+20%
Specification of control Panel
The control panel is AMF control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of controller
Controller is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
The module also monitors and protects the engine, indicating operational status, fault conditions and metering on the front panel LCD and LED’s.
• True RMS measure of voltage and current.
• Multi-Language menu.
• 128 x 64 pixel LCD display.
• 4 analog inputs for kinds of optional sensors that can be used for measuring oil pressure, coolant temperature, fuel level and so on; parameters can be configured by user.
• More outputs of configurable auxiliary control relays.
• More configurable isolated digital inputs.
• Buttons on control panel are used for selecting control modes, starting and stopping the operating procedure, displaying data and modifying the parameters. LED indicators are used for indicating the operation mode of controller and the running status of Genset, and LCD displays each measuring parameter and status.
• Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with PC, fully realizing functions of remote signaling, telemetering and remote control, can read and set the running parameters of controller.
• With GPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB port for remote communication.
• Optional CANbus, read and control the parameters for ECU engine.
• All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain and replace the device.
