1)Ricardo diesel Generator2)Low noise
3)10-200kw
4)low fuel consumption
6)low noise level 65db

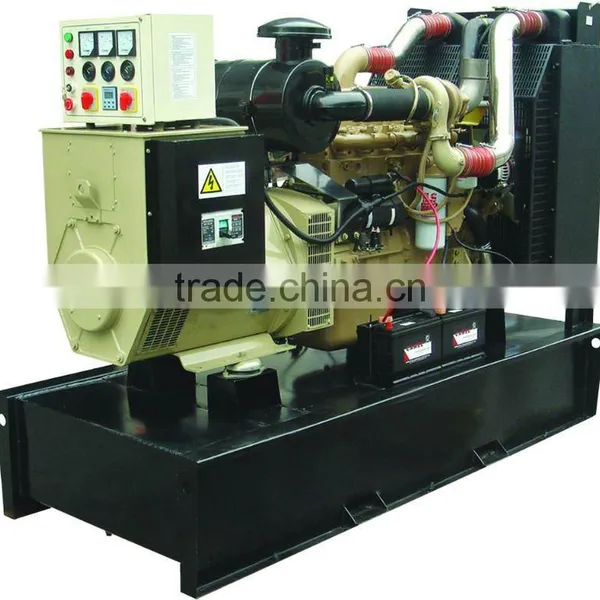

Ricardo diesel Generator Specification,
1),Main Specification,
a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)
b,Composed Deutz diesel engine and Stamford or Leroy Somer alternator
c,12V/24V DC start motor and storage battery
d,Brushless, Self-excited, IP23, insulation class H alternator
e, 40°C radiator as standard, 50°C is optional
f,Key start panel control system as standard, digital auto-start panel is optional
g,8-hour operation base tank
h,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
2),Data of Generator Set,
| Prime Power | 10kw/12.5kva-200kw/250kva | Standby Power | 11kw/13.75kva-200kw/250kva |
| Rated Speed | 1500rpm | Output Frequency | 50hz/60hz |
| Phase | 3 | Rated Voltage | 400v |
| Engine Brand | Deutz | Alternator Brand | Stamford |
| Fuel Consumption | 4L-200L | Fuel Tank capacity | 8 hours |
| Voltage Regulation Rate | ≤±1% | Random Voltage Rate | ≤±1% |
| Frequency Regulation Rate | ≤±5% | Random Frequency Variation | ≤±0.5% |

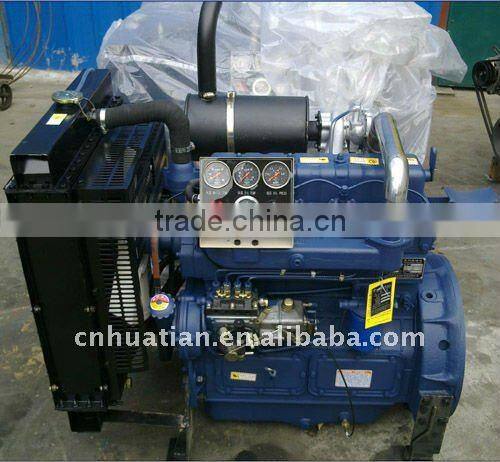

3),Engine Specification,
| Model | 295/2100/495/K4100/K4102/R4105/R6105/R6110/R6113/R6126 |
| Cooing Method | Forced water cooling |
| Rotating speed | 1500/1800rpm |
| Governor system | electrical or mechanical governor |
| Aspiration mode | natural aspirated or turbocharged |
| Starting method | 12/24V DC electric starting |
| Stroke | 4 stroke |
4),Alternator Specification,
| Alternator Brand | Stamford |
| Exciter Type | Brushless, Self-excited |
| Rated Speed | 1500/1800rpm |
| Rated Frequency | 50/60hz |
| Phase | three or single |
| Rated Voltage | 400V (Available with customer requirements) |
| Power | 0.8 |
| Voltage Adjust Range | ≥5% |
| Protection Grade | IP23 |
| Insulation Grade | H |
5),Control System,
Our standard genset controller provides functions,
a),Start/Stop controller
b),Ampere meter
c),Voltmeter and selector switch
d),Frequency meter/ Water temperature gauge/Oil pressure gauge/Hour counter/Battery voltage meter
e),Emergency stop pushbutton
f),Alarm System: Over speed, High Engine Temperature, Low Oil Pressure, Charge Fail
g),Protection System: Over speed, High Engine Temperature, Low Oil Pressure,Emergency Stop, and the other protection function pre-setting
h),AMF
i),ATS.
|
|
