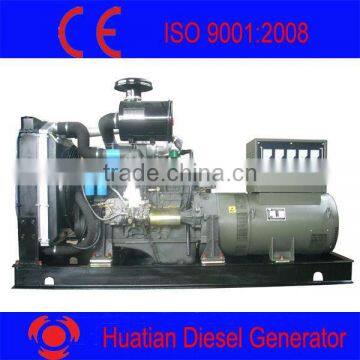

Weifang Weichai Diesel Generator 150KVA/120KW

Name: Weifang Weichai Diesel Generator 150KVA/120KW
Brand: Weichai
SKU: 141184352
Availability: InStock

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Weichai

Model Number:

150kva

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Weichai

Model Number 150kva

Output Type AC Single Phase

Speed 1500/1800 rpm

Frequency 50/60Hz

Rated Power 120KW

Rated Voltage 400/230V

Rated Current 271A

Weifang Weichai Diesel Generator 150KVA/120KW

-------------------Diesel Generator Main Specification----------------

Specification of genset
Gensets model				120GF
Prime power(KW)				120
Rated voltage(V)				400 / 230
Rated current(A)				217
Rated frequency(HZ)				50
Rated Speed (rpm)				1500
Power Factor				0.8(lagging)
Dimensions(mm) (L×W×H)				2450x930x1730
Genset Weight(kg)				1700
Specification of diesel engine
Engine brand				Weifang Huatian
Engine model				R6105IZLD
Air Intake System				Turbocharged
Fuel System				Direct Injection
Cycle				Four stroke
Cylinder Arrangement				6 in line
Displacement				7.01L
Bore×Stroke (mm×mm)				105 x 135
Rated RPM				1500rpm
Cooling System				Forced Water Cooling Cycle
Governor Type				Mechanical
Fuel Consumption at 100% Load (g/kwh)				238
Starting Method				DC24V electrical starting
Specification of alternator
Alternator brand				Chinese Stamford
Excitation				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Power Factor				0.8
Protection Grade				IP21
Altitude				≤1000m
Insulation Class, Temperature Rise				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
Specification of control Panel
The control panel is common integrated control panel, with the display of voltage,current, frequency, water temperature, oil pressure.
