Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Weifang Weichai 100kva/80kw Diesel Generator Manufacturer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WEIFANG
Model Number:
100kva
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Weifang 58kw/79hp /1500rpm Water-Cooled Gas Generator SetUS$ 3,000 - 3,000MOQ: 1 Set -
R6113ZLDdiesel GeneratorUS$ 3,000 - 10,000MOQ: 1 Set
-
Ricardo R6105IZLD Engine 150kva/132kw Diesel GeneratorUS$ 5,000 - 10,000MOQ: 1 Set
-
Weifang Weichai Diesel Generator 150KVA/120KWUS$ 1 - 10,000MOQ: 1 Set
-
10000 Watt Small Power Portable Diesel Generator for SaleUS$ 1 - 10,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
WEIFANG
Model Number
100kva
Output Type
AC Three Phase
Speed
1500/1800 rpm
Frequency
50/60Hz
Rated Power
10-500kw
Rated Voltage
400/380V
Rated Current
217A

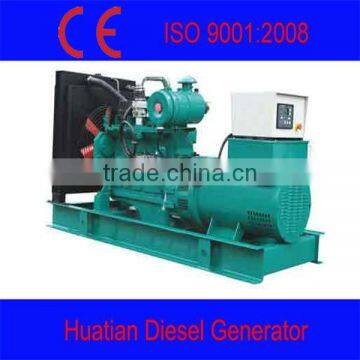

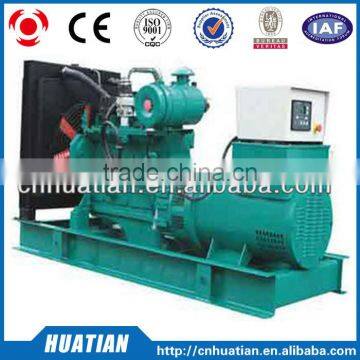

Weifang Weichai 100kva Diesel Generator Manufacturer
-------------------Diesel Generator Main Specification----------------
| Technical Specification | ||||||||
| Specification of genset | ||||||||
| Gensets model | 100GF | |||||||
| Prime power | 100KW | |||||||
| Rated Voltage | 380/220V | |||||||
| Rated frequency(HZ) | 50 | |||||||
| Rated Speed | 1500rpm | |||||||
| Power Factor | 0.8(lagging) | |||||||
| Dimensions(mm) (L×W×H) | 2160×820×1300 | |||||||
| Net Weight(kg) | 1200 | |||||||
| Specification of diesel engine | ||||||||
| Engine brand | WEIFANG | |||||||
| Engine model | 6BTA5.9-G2 | |||||||
| Number of Cylinders | 6 | |||||||
| Cylinder arrangement | Vertical in-line | |||||||
| Cycle | Four stroke | |||||||
| Aspiration | Turbocharged after air-air cooled | |||||||
| Bore×Stroke (mm×mm) | 102 x 120 | |||||||
| Displacement (Liter) | 5.9 | |||||||
| Compression Ratio | 17.5:1 | |||||||
| Speed Governor | Electrical | |||||||
| Cooling System | Water cooled | |||||||
| Speed Stability (%) | ≤1% | |||||||
| Total lubrication system capacity (L) | 16.4 | |||||||
| Fuel Consumption at 100% Load (L/h) | 211 | |||||||
| Starting Method | DC24V Electrical starting | |||||||
| Specification of alternator | ||||||||
| Alternator brand | Chinese Stamford | |||||||
| Number of Phase | 3 | |||||||
| Connecting Type | 3 Phase and 4 Wires | |||||||
| Number of Bearing | 1 | |||||||
| Protection Grade | IP21 | |||||||
| Altitude | ≤1000m | |||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | |||||||
| Insulation Class | H | |||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||
| THF | ≤2% | |||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||
| Transient State Voltage | ≤-15%~+20% | |||||||
| 4. Specification of control Panel | ||||||||
| The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | ||||||||
| The features of controller: | ||||||||
| Controller adopts high performance computer chip, can modify control procedure and protection parameters of generator, which incorporating measure, control, protection and three remote functions and so on, can fully satisfactory different kinds of Genset auto control requirements for generator user and or special assembly factory. | ||||||||
| The controller measure and display all output digital parameters for generator, and rpm, oil pressure, water temperature, DC voltage and runtime for engine. And the voltage and current use real virtual value measure to make sure the data more exacter. | ||||||||
| • Chinese/English menu for your choice, large LCD display. | ||||||||
| • Can select kinds of preset PT-sensor, and can custom parameter by corresponding software. | ||||||||
| • Keys on control panel are used for selecting control mode, startup running procedure, data display and modify the protection parameter. LED indicator is used for indicating the controller running mode and Genset running status, and LCD display measuring parameter and status. | ||||||||
| • Can select RS485 or RS232 communication port, realizing long distance monitor, and or fully realizing remote signaling, telemetering and remote control functions by communication with PC, can read and setting controller running parameter. | ||||||||
| • The controller is assembled by high strength plasticized panel and powdered steel shell, all connection are connected by pin-like and locked up terminal, more easier and convenient to connect, move, maintain and replace. | ||||||||
