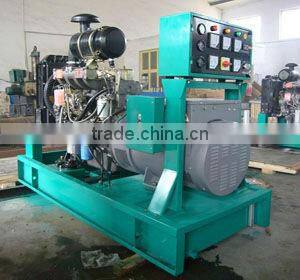

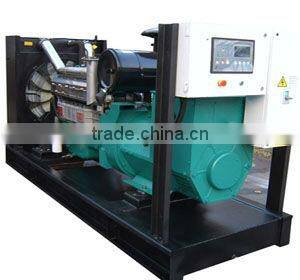

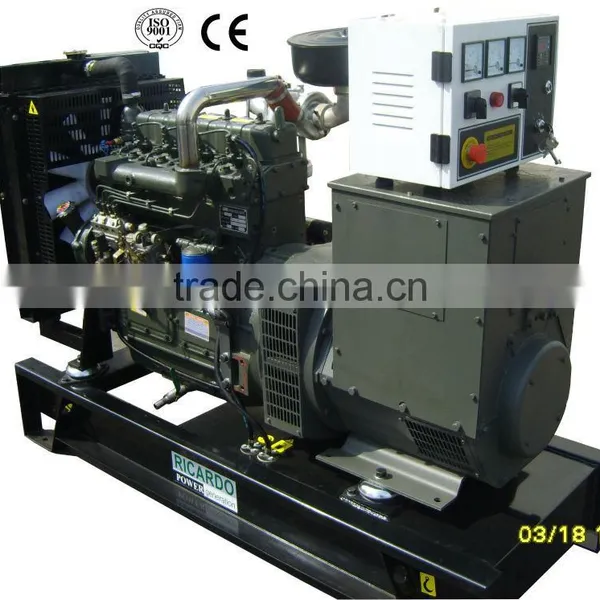

10kva to 250kva ricardo generator set

Specifications

1)Ricardo generator set
2)10kva to 250kva
3)CE & ISO certificates
4)four hours tested
5)two years warranty

10kva to 250kva Ricardo diesel generator set  Specification data









1), Heavy duty of Engine

a,Engine-Industrial 4strokes cooled diesel engine complete with air, fuel and oil filters,

b,electric starting and charging equipment, engine protection against oil low water level.

c, Cooling-Radiator and cooling fan complete with protection guards, designed to cool engine at specified output in air temperature up to 45°C,radiator suitable for higher temperature are available. Low water level protection fitted as standard.

d, Exhaust system-Heavy duty industrial exhaust silencer with flexible piping. Exhaust system-Heavy duty industrial exhaust silencer with flexible piping.





Diesel Engine specification,

Engine model	295,2100,495,4100,4105,6105,6110,6113,6126
Type	water cooling, 4 strokes, direct injection
Air Intake type	naturally or turbocharged
Cylinder number	2, 4,6
Piston speed	6m/s
Mechanical governor rate	≤5%
Electronical Governor rate	≤1%
Noise Level	≤96dBA



2), Reliable quality of alternator

a, Alternator-brushless, self exciting, self regulation, screen protected, drip proof rated in accordance with IEC60034.

b,Voltage regulation maintained within ±0.5% from no load to full load, between 0.8 lagging and unity.

c, Available in the following voltages, 220V to 240V, and 380V-415V-440V-50HZ.





Alternator specification,

Stamford

Brushless, self excited, Class "H" insulation, Standard degree of protection is IP23

AVR self regulation, With fan cooling, Resist humid grease

AC excitation, roating, rectification tube, Stator frease insulation covered

Rotator balance is in accordance with BS5625 standard 12.5

High quality lubrication sealed long-time bearing

Rotator sillicon steel close tight



3), Ricardo generator production,







4), Ricardo generator test,







5), Ricardo generator delivery,









5, Certificate
