Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Chinese 100kw Diesel Engine With Stamford Original Alternator

Chinese 100kw Diesel Engine With Stamford Original Alternator

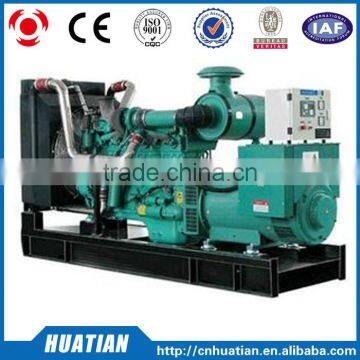

Chinese 100kw Diesel Engine With Stamford Original Alternator photo-1

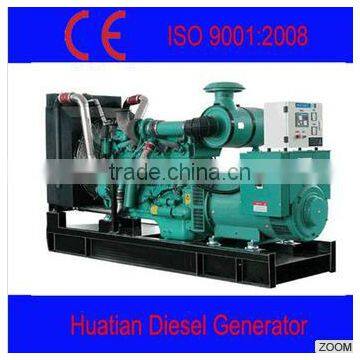

Chinese 100kw Diesel Engine With Stamford Original Alternator photo-2

US$ 2,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Model Number:

100GF

Contact Supplier Request Quote Chat Now

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name HT

Model Number 100GF

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60HZ

Rated Power 100KW

Rated Voltage 400/230V

Rated Current 216A

Product Description

Technical Specification
Specification of genset
Gensets model				100GF
Prime power				100KW
Rated Voltage				440/220V
Rated frequency(HZ)				50
Rated Speed				1500rpm
Power Factor				0.8(lagging)
Dimensions(mm) (L×W×H)				25007801600
Net Weight(kg)				1200
Specification of diesel engine
Engine brand				HT
Engine model				R6105AZLD
Number of Cylinders				6
Cylinder arrangement				Vertical in-line
Cycle				Four stroke
Aspiration				Turbocharged after air-air cooled
Bore×Stroke (mm×mm)				105*130
Displacement (Liter)				6.49
Compression Ratio				16:1
Speed Governor				Electrical
Cooling System				Water cooled
Speed Stability (%)				≤1%
Total lubrication system capacity (L)				16.4
Fuel Consumption at 100% Load (L/h)				230
Starting Method				DC24V Electrical starting
Specification of alternator
Alternator brand				Chinese Stamford
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
4. Specification of control Panel
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of controller:
Controller adopts high performance computer chip, can modify control procedure and protection parameters of generator, which incorporating measure, control, protection and three remote functions and so on, can fully satisfactory different kinds of Genset auto control requirements for generator user and or special assembly factory.
The controller measure and display all output digital parameters for generator, and rpm, oil pressure, water temperature, DC voltage and runtime for engine. And the voltage and current use real virtual value measure to make sure the data more exacter.
• Chinese/English menu for your choice, large LCD display.
• Can select kinds of preset PT-sensor, and can custom parameter by corresponding software.
• Keys on control panel are used for selecting control mode, startup running procedure, data display and modify the protection parameter. LED indicator is used for indicating the controller running mode and Genset running status, and LCD display measuring parameter and status.
• Can select RS485 or RS232 communication port, realizing long distance monitor, and or fully realizing remote signaling, telemetering and remote control functions by communication with PC, can read and setting controller running parameter.
• The controller is assembled by high strength plasticized panel and powdered steel shell, all connection are connected by pin-like and locked up terminal, more easier and convenient to connect, move, maintain and replace.
