Home > Products > Gas Generator > 200KW biogas generator

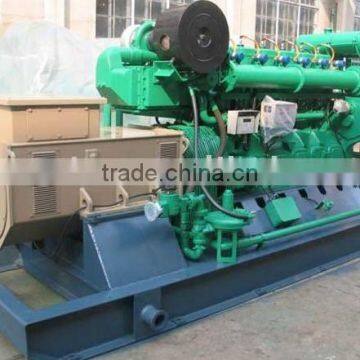

200KW biogas generator
- 600 Set / Sets per Month
- Qingdao
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | huatian | Model Number: | 200GFT gas genset |
Output Type: | AC Three Phase | Speed: | 1500R/MIN | Frequency: | 50HZ |
Rated Power: | 10KW | Rated Voltage: | 400A | Rated Current: | 18A |
Product Description
Specifications
Function of gen sets:Display voltage, current, power, power factor, battery voltage, speed, oil pressure and water temperatureMain technical performance parameter:
1.No-load voltage setting range:95--105%
2.Steady state voltage regulation rate:≤±1%
3.Transient state voltage regulation rate:≤-15%~20%
4.Voltage recover time:≤3s
5.Voltage fluctuation rate:≤±0.5%
6.Steady state frequency regulation rate:≤5%
7.Transient state frequency regulation rate:≤±10%
8.Frequency stabilization time:≤5s
9.Line -voltage waveform sinusoidal distortion rate:≤2.5%
Main components for the gen sets:
Gas engine, alternator, control panel, common base, muffler etc;
Optional components:
Parallel equipment, soundproof, canopy.
generator type | 200GFT | ||
structure | integral | ||
exciting method | AVR brushless | ||
Rated Power(KW) | 200 | ||
Rated Current(A) | 361 | ||
Rated Voltage(A) | 400 | ||
rated frequency(Hz) | 50 | ||
rated power factor | 0.8lag | ||
engine | type | WDT269D21 | |
model | in line,4 trokes,electric control ignition,pre-mixed stoichiometry burn | ||
Bore and stoke | 12*138*150 | ||
Total displacement(L) | 26.9 | ||
Compression ratio | 11.5 | ||
Rated Power(KW/PS) | 230/313 | ||
Rated Speed(r/min) | 1500 | ||
Speed Regulation Mode | ELECTRICAL | ||
starting mode | ELECTRICAL | ||
Fuel | natural gas or marsh gas | ||
max gas consumption(m3/h) | 80 | ||
overall dimension | 3200*1450*2100 | ||
net weight(kg) | 3200 |
Gas quality standard of Gas Generator
Gas type | Chemical formula | Restricted standards |
Methane | CH4 | More than 65% |
Ethane | C2H6 | Less than 6% |
Hydrogen | H2 | Less than 0.2% |
Propane | C3H6 | Less than 2% |
Butane | C4H10 | Less than 0.2% |
Other segregation of hydrocarbons | CxHy | Less than 2% |
Sulfureted hydrogen | H2S | Less than 0.01% |
Flammable substance |
| Less than 85% |
Remark: 1. Gas pleasure is between 5 to 10kpa
2. The lowest thermal value is 34.7MJ/m3
