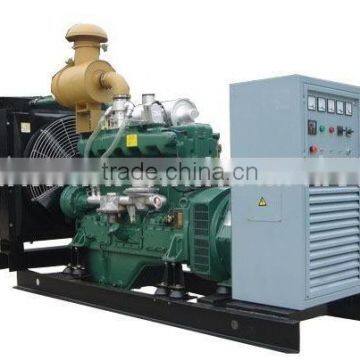

Help Center150KW Biogas Generator
Related Products
Specifications
Function of gen sets:Display voltage, current, power, power factor, battery voltage, speed, oil pressure and water temperature
Main technical performance parameter:
1.No-load voltage setting range:95--105%
2.Steady state voltage regulation rate:≤±1%
3.Transient state voltage regulation rate:≤-15%~20%
4.Voltage recover time:≤3s
5.Voltage fluctuation rate:≤±0.5%
6.Steady state frequency regulation rate:≤5%
7.Transient state frequency regulation rate:≤±10%
8.Frequency stabilization time:≤5s
9.Line -voltage waveform sinusoidal distortion rate:≤2.5%
Function of gen sets:
Display voltage, current, power, power factor, battery voltage, speed, oil pressure and water temperature etc;
Protection of when over speed,over water temperature, low oil pressure etc.
Main components for the gen sets:
Gas engine, alternator, control panel, common base, muffler etc;
Optional components:
Parallel equipment, soundproof, canopy.
| generator type | 150GFT | ||
| structure | integral | ||
| exciting method | AVR brushless | ||
| Rated Power(KW) | 150 | ||
| Rated Current(A) | 270 | ||
| Rated Voltage(A) | 400 | ||
| rated frequency(Hz) | 50 | ||
| rated power factor | 0.8lag | ||
| engine | type | WDT258D18 | |
| model | in line,4 trokes,electric control ignition,pre-mixed stoichiometry burn | ||
| Bore and stoke | 12*135*150 | ||
| Total displacement(L) | 25.8 | ||
| Compression ratio | 11.5 | ||
| Rated Power(KW/PS) | 180/245 | ||
| Rated Speed(r/min) | 1500 | ||
| Speed Regulation Mode | ELECTRICAL | ||
| starting mode | ELECTRICAL | ||
| Fuel | natural gas or marsh gas | ||
| max gas consumption(m3/h) | 60 | ||
| overall dimension | 3200*1450*2100 | ||
| net weight(kg) | 3000 | ||
