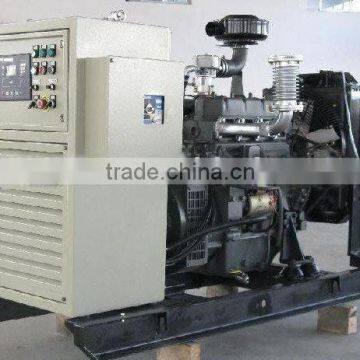

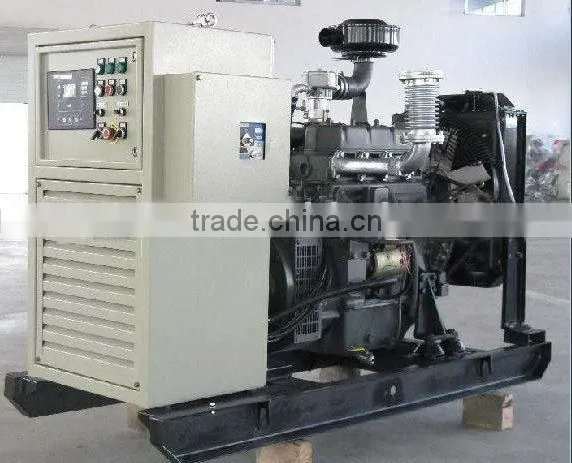

50KW CHP Gas Generator

Name: 50KW CHP Gas Generator
Brand: huatian
SKU: 141184034
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

huatian

Model Number:

50GFT gas genset

Weifang Huatian Diesel Engine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name huatian

Model Number 50GFT gas genset

Output Type AC Three Phase

Speed 1500R/MIN

Frequency 50HZ

Rated Power 10KW

Rated Voltage 400A

Rated Current 18A

Specifications

Function of gen sets:
Display voltage, current, power, power factor, battery voltage, speed, oil pressure and water temperature

generator type		50GFT	80GFT	120GFT
structure		integral
exciting method		AVR brushless
Rated Power(KW)		50	80	120
Rated Current(A)		90	144	217
Rated Voltage(A)		400
rated frequency(Hz)		50
rated power factor		0.8lag
engine	type	R6105Q	WDT129D10	WDT150D12
	model	in line,4 strokes,electric control ignition,pre-mixed stoichiometry burn
	Bore and stoke	6105125	6135150	6140160
	Total displacement(L)	6.5	12.9	14.8
	Compression ratio	11.5	11.5	11.5
	Rated Power(KW/PS)	58/78.9	100/136	126/172
	Rated Speed(r/min)	1500
	Speed Regulation Mode	ELECTRICAL
	starting mode	ELECTRICAL
	Fuel	natural gas or marsh gas
	max gas consumption(m3/h)	17	33	48
overall dimension		22507901350	27009801840	280011001900
net weight(kg)		1050	1900	2100

Gas quality standard of Gas Generator

Gas type	Chemical formula	Restricted standards
Methane	CH4	More than 65%
Ethane	C2H6	Less than 6%
Hydrogen	H2	Less than 0.2%
Propane	C3H6	Less than 2%
Butane	C4H10	Less than 0.2%
Other segregation of hydrocarbons	CxHy	Less than 2%
Sulfureted hydrogen	H2S	Less than 0.01%
Flammable substance		Less than 85%
