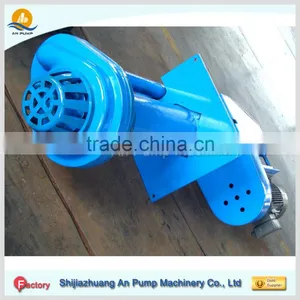

Vertical slurry pump with strainer & agitator for delivering large particle slurry
Vertical slurry pump with strainer & agitator for delivering large particle slurry application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
Vertical slurry pump with strainer & agitator for delivering large particle slurry specification
BP series slurry pump is suitable for handling slurry with abrasive and corrosive solids, which maximum
weight density of 45% (ash and coal slurry) and 60% (ore and heavy slurry). It widely used in power, metallurgy, mining, coal, construction materials and other sectors. AZ series can be installed in series according to end user’s requirements. AZ, AZL series slurry pumps lead in various technical performance in our domestic counterparts. With most of the approaching the quality, high performance, best service advanced world level in efficiency, the pumps are used all over the world and exported to Europe, America, and Africa.
Flow rate: 17~1267m3/h
Head: 4~40m
Outlet pressure: 4Bar
Outlet flange: 40~300mm
Vertical slurry pump with strainer & agitator for delivering large particle slurry structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.
Vertical slurry pump with strainer & agitator for delivering large particle slurry parameter
Vertical slurry pump with strainer & agitator for delivering large particle slurry curve
Vertical slurry pump with strainer & agitator for delivering large particle slurry show:
Vertical slurry pump with strainer & agitator for delivering large particle slurry spare parts:
Vertical slurry pump with strainer & agitator for delivering large particle slurry packing
Our Services
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
