Rubber liner vertical sump pump
- 5000 Set / Sets per Month
- Xingang/Shanghai/Guangzhou
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | BP vertical sump pump |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, Mine/Metallurgy/Coal/Electricity/Building Materials |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric or diesel |
Pressure: | High Pressure | Application: | Sewage |
Product Description
Rubber liner vertical sump pump
Rubber liner vertical sump pump application
The vertical slurry pump is widely used in delivery slurry with solids in electric power, metallurgy, coal, building material and other industries. Such as hydraulic removing ash for thermal power plants, pump mill slurry in metallurgy delivery coal slurry and heavy slurry for coal.
Typical application:
Mine: black, colored slurry feed pump and delivery for kinds of concentrates and tailings;
Metallurgy: transport of various kinds of aluminum and steel mill slurry;
Coal: delivery for coal mining, washing, all kinds of coarse and fine coal slurry;
Electricity: transport for power plant ash, ash washing, various ash slurry, or mortar;
Building Materials: delivery for all kinds of including sediment slurry (such as cement plant slurry);
Chemical: delivery of phosphate fertilizer, potash fertilizer plant all kinds of abrasive slurry;
Water Works: lake, river dredging, sediment, gravel, clay high plastic suction and discharge.
In the mine site pump station
Drainage slurry working condition
Rubber liner vertical sump pump specification
1.Flow: up to 1206 m3/h
2.Head: up to 54 m
3.Speed: 400 to 2200 rpm
4.Power:15 - 200 kw
5.Particle Size: max 64mm
Features:
1) Cantilevered shaft design.
2) Double suction semi-open impeller.
3) Agitator option keeps solids in suspension.
4) LBP models feature full rubber covering for corrosion resistance.
5) Recessed impeller option passes over sized material.
BP and BPR pumps are vertical, centrifugal slurry pumps submerged in sump to work.
They are designed for delivering abrasive, large particle and high density slurry.
These pumps have no need of any shaft seal and sealing water.
They can also be operated normally for insufficient suction duties.
Rubber liner vertical sump pump type
Models | |
(Metal Pump) | Rubber Pump |
40C-BP | 40C-BPR |
65D-BP | 65D-BPR |
100E-BP | 100E-BPR |
150F-BP | 150F-BPR |
200F-BP | 200F-BPR |
250S-BP | 250S-BPR |
300S-BP | 300S-BPR |
|
Rubber liner vertical sump pump parameter
PUMP MODEL | MATERIAL | CAPACITY | HEAD | MAX PARTICLE SIZE | SPEED | MAX POWER | |
LINER | IMPELLER | ||||||
40 LBP | M | M | 6 - 50 | 4 - 29 | 12 | 1000 - 2200 | 15 |
40 LBP | RU | RU | 5.8 - 64.8 | 5 - 54 | 12 | 1000 - 2200 | |
65 LBP | M | M | 14 - 120 | 4 - 33 | 15 | 700 - 1500 | 30 |
65 LBP | RU | RU | 10.8 - 149 | 5 - 49.5 | 15 | 700 - 1500 | |
100 LBP | M | M | 15 - 330 | 4 - 37 | 32 | 500 - 1200 | 75 |
100 LBP | RU | RU | 25 - 360 | 6 - 49 | 40 | 600 - 1200 | |
150 LBP | M | M | 36 - 648 | 5 - 37 | 43 | 500 - 1000 | 110 |
200 LBP | M | M | 90 - 828 | 6 - 41 | 64 | 400 - 850 | 110 |
250 LBP | M | M | 40 - 1206 | 7 - 36 | 64 | 400 - 750 | 200 |
PLEASE NOTE: "M" MEANS METAL MATERIAL. "R" MEANS RUBBER MATERIAL |
Rubber liner vertical sump pump curve
Rubber liner vertical sump pump structure
1. Material construction optional
BP: abrasion resisting metal construction
BPR: anti-corrosive rubber construction
2. Do not need any shaft seal or sealing water
Also worked well under insufficient suction duty.
3. The type with “L” is the pump with extension shaft
It suitable to deep condition. It has guid bearing. So it more stable and used more wide. However the flushing water is necessary on the guide bearing part.
4. The agitator is available
We can assembly the agitator as requirements.

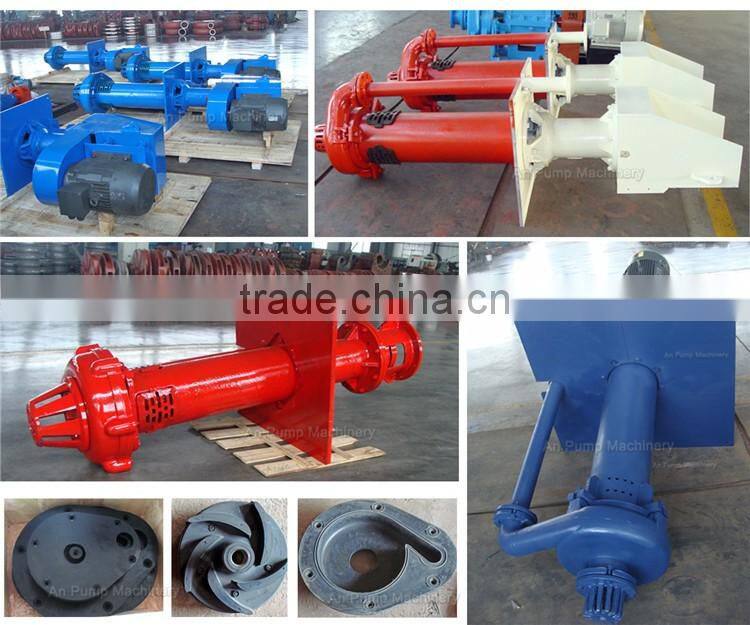

Rubber liner vertical sump pump and spare parts picture
With large quantity of spare parts in stock, our delivery time is generally very short.
Rubber liner vertical sump pump packing and shipping
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
some of our clients
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Learn more , please contact us directly.
