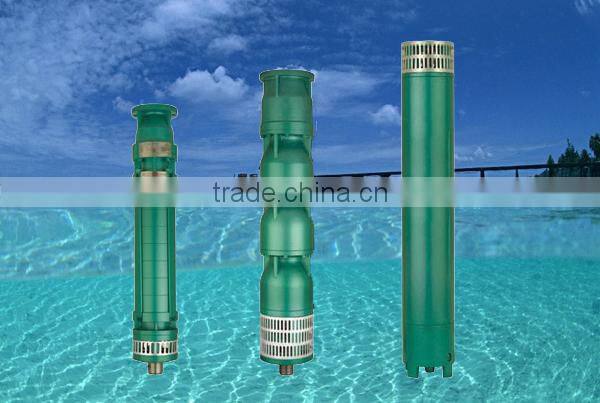

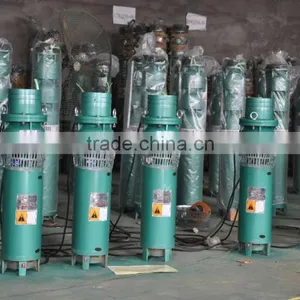

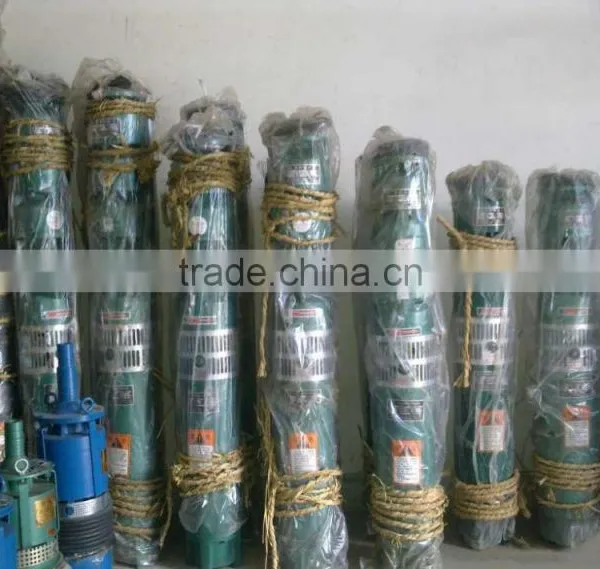

5HP Agricultural Submersible Deep Well Pump for Irrigation
Overview about 5HP Agricultural Submersible Deep Well Pump for Irrigation
ASJ-type 5HP Agricultural submersible well pump for irrigation , also known as submersible bore hole pump. Motor and pump are directly connected into the water works water equipment.
⇑⇑⇑ APPLICATION ⇓⇓⇓
Application about 5HP Agricultural Submersible Deep Well Pump for Irrigation
Water Usage multistage 5HP Agricultural submersible well pump for irrigation applies to the extraction of groundwater from deep wells can also be used for rivers, reservoirs, canals and other water projects: mainly used for farmland irrigation and livestock water mountain plateau, also for the cities, factories, railways, mines, construction sites use for drainage.
⇑⇑⇑ FEATURES ⇓⇓⇓
Key features of 5HP Agricultural Submersible Deep Well Pump for Irrigation
1. Motor and 5HP Agricultural submersible well pump for irrigation body, running into the water, safe and reliable .
2. Well pipe, discharge pipes without special requirements (ie: steel tube wells, tube wells gray, Doi etc. can be used; license under pressure, steel pipe, hose, plastic pipe, etc. can make use of Yang pipes).
3. The installation, use, maintenance easy and convenient, small footprint, without the construction of pumping stations.
4. Simple structure, saving raw materials. Conditions submersible pump used is appropriate, properly managed has a direct relationship with life.
⇑⇑⇑ CONSTRUCTION FEATURE ⇓⇓⇓
Construction feature of 5HP Agricultural Submersible Deep Well Pump for Irrigation
1. ASJ-type 5HP Agricultural submersible well pump for irrigation unit consists of: pumps, submersible motors (including cable), pipes and control switch four major components. Submersible pumps for single-suction vertical multistage centrifugal pump: submersible motor is sealed water-filled wet, vertical three-phase cage induction motor, the motor and pump through the claw or a single health Drum direct coupling; equipped with three different specifications core cable; starting equipment for different capacity levels of air pressure switch and self-dual starter, pipes made of steel pipes of different diameters, flange connection, highlight the theme of the program using the pump control valve.
2. Each level of diversion submersible pump is equipped with a rubber bearing housing; impeller with a tapered sleeve fixed to the shaft; diversion shell with screw or bolt into one.
3. the upper air-lifted pump check valve, causing the unit to avoid downtime hanging water damage.
4. Department of submersible motor shaft mounted skeleton sand labyrinth seal and two reverse assemble, and to prevent the flow of sand into the motor.
5. Submersible motor with water-lubricated bearings, the lower tone laminated with rubber, pressure regulator spring, composed surge chamber, adjust the pressure change due to temperature; motor winding insulation using polyethylene, nylon jacket water solenoid durable cable connection mode by ASJ-type cable connector technology, scrape the paint off the joint insulation were connected, welding firm, with a layer of raw rubber around. Waterproof adhesive tape and then wrapped around 2 to 3 layers, 2 to 3 layers waterproof adhesive tape or water on the outside of the package wrapped in a layer of rubber band knot (bicycle inner tube) to prevent water seepage.
6. Motor sealed using precision bolts mouth only, plus pad sealed cable outlet.
7. There is a water hole upper motor, there is a bleed hole, the lower part of a drain hole.
8. The lower portion of the motor is equipped with upper and lower thrust bearing, the thrust bearing grooves for cooling, and it is a stainless steel grinding thrust plate, with the upper and lower pump axial force.
⇑⇑⇑ CONSTRUCTION DRAWING ⇓⇓⇓
Construction drawing about 5HP Agricultural Submersible Deep Well Pump for Irrigation
⇑⇑⇑ FAQ ⇓⇓⇓
Basic parameter about 5HP Agricultural Submersible Deep Well Pump for Irrigation
The basic parameters of pump main performance are as follows:
1. Flow rate (Q):
Flow rate is meaning the liquid amount (volume or weight) delivered in unit time(volume or weight);
2. Head (H):
Head is the increased energy from the pump inlet to the pump outlet when pumping one unit liquid.
That is to say one Newtonian liquid get the effective energy through the pump.
The unit is n. m/N = m, mamely pumping water column height, in short of meter.
3.speed (n): Speed is numbers of revolutions of the pump shaft in unit time, Code is n, unit is r/min;
4.Net positive suction head (NPSH):
NPSH is the main parameter to signify cavitation property. NPSH domestic used Δ h.
⇑⇑⇑ OUR HISTORY ⇓⇓⇓
⇑⇑⇑ QUALITY CONTROL ⇓⇓⇓
⇑⇑⇑ MANUFACTURING PROCESS ⇓⇓⇓
⇑⇑⇑ OUR MAIN FACILITIES ⇓⇓⇓
⇑⇑⇑ OUR SERVICE ⇓⇓⇓
Our services about 5HP Agricultural Submersible Deep Well Pump for Irrigation
Offer pump solution, design, manufacturing, and after-sales service.
Service | Specification |
1. Selection | Send us working data (medium, head, flow rate...) |
2. OEM/ODM | Please show us the pump design drawing |
3. Process design | Offer process design as working condition. |
⇑⇑⇑ CERTIFICATIONS ⇓⇓⇓
Certification for 5HP Agricultural Submersible Deep Well Pump for Irrigation
⇑⇑⇑ CONTACT US ⇓⇓⇓
24Hx7D Online Service for 5HP Agricultural Submersible Deep Well Pump for Irrigation
