Submersible Agricultural Irrigation Deep Well Water Pump
*-*-*-*-* OVERVIEW *-*-*-*-*

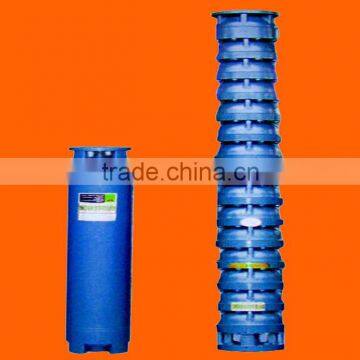

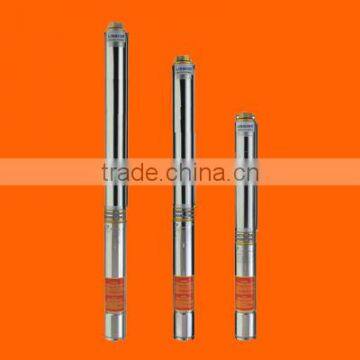

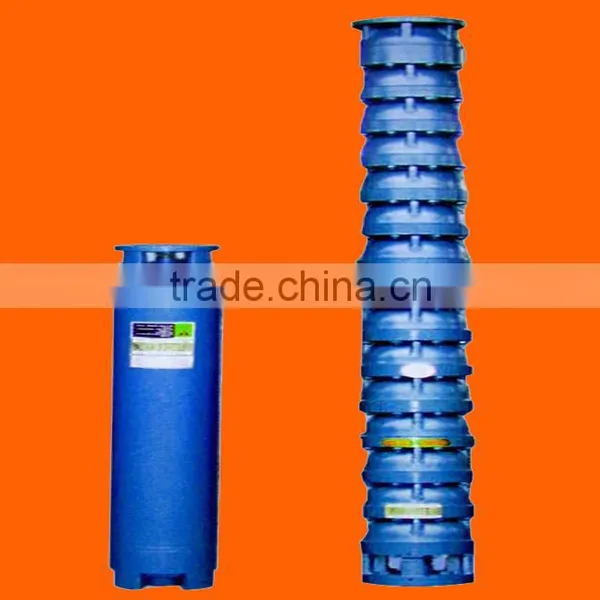

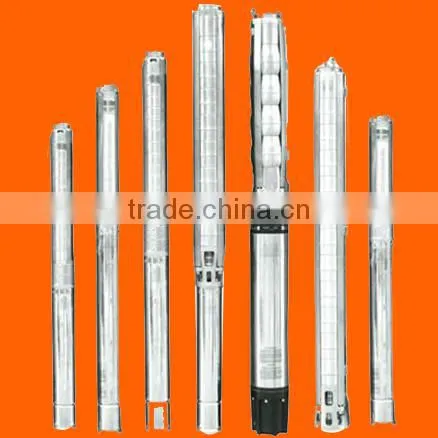

Overview for Submersible agricultural irrigation deep well pump :
ASJ-type deep well pumps, also known as submersible bore hole pump. Motor and pump are directly connected into the water works water equipment.
*-*-*-*-* APPLICATION *-*-*-*-*
Application of Submersible Agricultural Irrigation Deep Well Water Pump

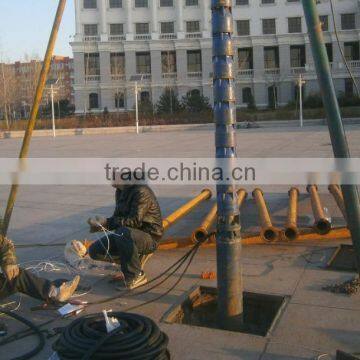

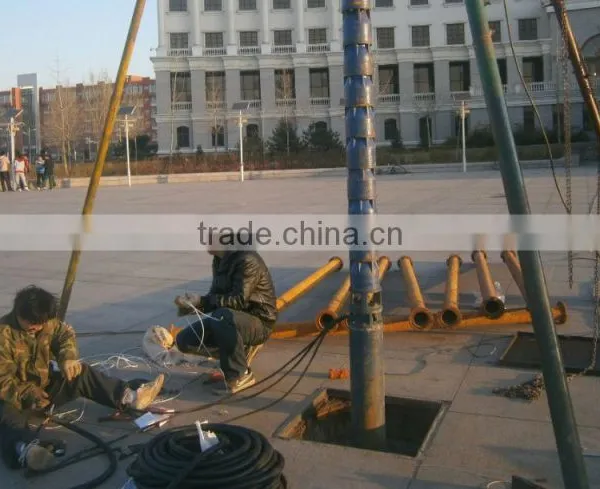

Water Usage multistage deep well pump applies to the extraction of groundwater from deep wells can also be used for rivers, reservoirs, canals and other water projects: mainly used for farmland irrigation and livestock water mountain plateau, also for the cities, factories, railways, mines, construction sites use for drainage.
*-*-*-*-* KEY FEATURES *-*-*-*-*
Key features for Submersible Agricultural Irrigation Deep Well Water Pump
1. Motor and deep well pump body, running into the water, safe and reliable .
2. Well pipe, discharge pipes without special requirements (ie: steel tube wells, tube wells gray, Doi etc. can be used; license under pressure, steel pipe, hose, plastic pipe, etc. can make use of Yang pipes).
3. The installation, use, maintenance easy and convenient, small footprint, without the construction of pumping stations.
4. Simple structure, saving raw materials. Conditions submersible pump used is appropriate, properly managed has a direct relationship with life.
*-*-*-*-* CONSTRUCTION FEATURES *-*-*-*-*
Construction features of Submersible Agricultural Irrigation Deep Well Water Pump
1. ASJ-type deep well pump unit consists of: pumps, submersible motors (including cable), pipes and control switch four major components. Submersible pumps for single-suction vertical multistage centrifugal pump: submersible motor is sealed water-filled wet, vertical three-phase cage induction motor, the motor and pump through the claw or a single health Drum direct coupling; equipped with three different specifications core cable; starting equipment for different capacity levels of air pressure switch and self-dual starter, pipes made of steel pipes of different diameters, flange connection, highlight the theme of the program using the pump control valve.
2. Each level of diversion submersible pump is equipped with a rubber bearing housing; impeller with a tapered sleeve fixed to the shaft; diversion shell with screw or bolt into one.
3. the upper air-lifted pump check valve, causing the unit to avoid downtime hanging water damage.
4. Department of submersible motor shaft mounted skeleton sand labyrinth seal and two reverse assemble, and to prevent the flow of sand into the motor.
5. Submersible motor with water-lubricated bearings, the lower tone laminated with rubber, pressure regulator spring, composed surge chamber, adjust the pressure change due to temperature; motor winding insulation using polyethylene, nylon jacket water solenoid durable cable connection mode by ASJ-type cable connector technology, scrape the paint off the joint insulation were connected, welding firm, with a layer of raw rubber around. Waterproof adhesive tape and then wrapped around 2 to 3 layers, 2 to 3 layers waterproof adhesive tape or water on the outside of the package wrapped in a layer of rubber band knot (bicycle inner tube) to prevent water seepage.
6. Motor sealed using precision bolts mouth only, plus pad sealed cable outlet.
7. There is a water hole upper motor, there is a bleed hole, the lower part of a drain hole.
8. The lower portion of the motor is equipped with upper and lower thrust bearing, the thrust bearing grooves for cooling, and it is a stainless steel grinding thrust plate, with the upper and lower pump axial force.
*-*-*-*-* CONSTRUCTION DRAWING *-*-*-*-*
Construction drawing about Submersible Agricultural Irrigation Deep Well Water Pump
*-*-*-*-* SECTIONAL DRAWING *-*-*-*-*
Sectional drawing about Submersible Agricultural Irrigation Deep Well Water Pump
*-*-*-*-* ABOUT US *-*-*-*-*
SHijiazhuang an pump is one of the top manufacturers in China for Water Usage multistage deep well pump.
*-*-*-*-* FAQ *-*-*-*-*
Submersible agricultural irrigation deep well pump basic parameter
The basic parameters of pump main performance are as follows:
1. Flow rate (Q):
Flow rate is meaning the liquid amount (volume or weight) delivered in unit time(volume or weight);
2. Head (H):
Head is the increased energy from the pump inlet to the pump outlet when pumping one unit liquid.
That is to say one Newtonian liquid get the effective energy through the pump.
The unit is n. m/N = m, mamely pumping water column height, in short of meter.
3.speed (n): Speed is numbers of revolutions of the pump shaft in unit time, Code is n, unit is r/min;
4.Net positive suction head (NPSH):
NPSH is the main parameter to signify cavitation property. NPSH domestic used Δ h.
*-*-*-*-* OUR QUALITY CONTROL *-*-*-*-*
QC about Submersible Agricultural Irrigation Deep Well Water Pump
*-*-*-*-* OUR HISTORY *-*-*-*-*
*-*-*-*-* ORGANIZATIONAL STRUCTURE *-*-*-*-*
*-*-*-*-* OUR TEAM *-*-*-*-*
*-*-*-*-* COOPERATED CUSTOMER *-*-*-*-*
Cooperated Client for Submersible Agricultural Irrigation Deep Well Water Pump
Main product lines
An Pump Machinery manufactured slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
*-*-*-*-* OUR ENGINEER DEPT *-*-*-*-*
Engineer department
Experienced technical personnel is the powerful guarantee for quality products of slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps.
An Pump Machinery technical team set up five R & D teams:
hydraulic engineering, water pump structure, new materials research and development, casting, molding etc.
Except the commonly used CAD and other design software, the technical teams also use CAPP computer-aided industrial design and CFD hydraulic design software.
*-*-*-*-* MANUFACTURING PROCESS *-*-*-*-*

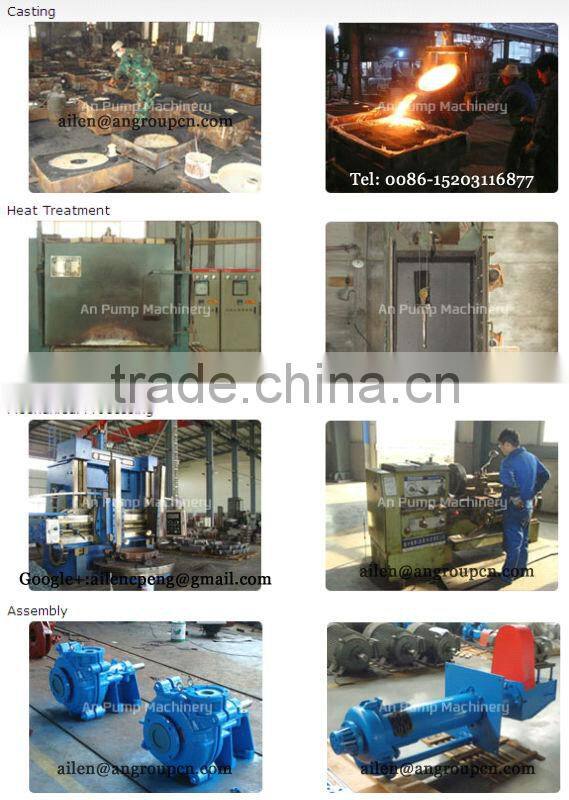

Manufacturing process
