Heavy duty and high pressure (over 60m) submersible pump
- 1998 Unit / Units per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QSZ Hot Sales centrifugal submersible slurry pump for sand dredger |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, submersible pump |
Power: | Other, 110 kw or as required | Standard or Nonstandard: | Standard | Fuel: | Other, Electric motor |
Pressure: | High Pressure | Application: | Submersible |
Product Description
Heavy duty and high pressure (over 60m) submersible pump
QSZ vertical submersible slurry pump is our factory technical personnel absorbing foreign advanced technology and combined with the actual situation of the majority of users, the design research and development, motor and pump coaxial integrated directly into the medium to work hydraulic machinery. The product is excellent selection, advanced structure, wide flow channel through ability, metallurgy, chemical, mining, power plants and other enterprise for conveying containing sand, cinder, tailings and other natural particles or liquids, it is the ideal alternative of traditional slurry pump.
Heavy duty and high pressure (over 60m) submersible pump Feature:
The products add a mixing impeller in the bottom by another except main impeller and can precipitate in the slag jet hit the water and solid particles into the mixing liquid, the pump in the case where no auxiliary means to achieve a transport of high concentration. Unique sealing device can effectively balance the pressure inside and outside of oil chamber, making mechanical seal both ends of the pressure to maintain a balance, the maximum guarantee reliable operation of the mechanical seal, greatly prolonging its life, the motor according to user requirements increase water testing, overheating and other protection devices that make products for harsh working conditions for long-term safe operation.
Heavy duty and high pressure (over 60m) submersible pump Parameter:
Submersible Slurry Pump Performance | |||||
Type | Flow (m3/h) | Head (m) | Speed (r/min) | Motor Power (KW) | Efficiency (%) |
40QSZ | 8.4-14.4 | 14-16 | 2900 | 1.5 | 42-70 |
50QSZ | 7-50.4 | 8-36 | 1450-2900 | 0.75-7.5 | 46-62 |
65QSZ | 17.5-44.4 | 11-30.2 | 2900 | 2.2-4 | 39-72 |
80QSZ | 20.3-72 | 5.7-27.5 | 2900 | 2.2-7.5 | 51-75 |
100QSZ | 35-120 | 5.6-38.5 | 1450 | 4-15 | 46-80 |
150QSZ | 49-300 | 5.5-44.5 | 1450 | 5.5-37 | 58-82 |
200QSZ | 110-480 | 5.7-44.5 | 1450 | 11-75 | 63-83 |
250QSZ | 420-840 | 7-35 | 980-1450 | 30-90 | 63-84.5 |
300QSZ | 280-1140 | 6.7-27 | 980-1450 | 45-110 | 68-84.5 |
350QSZ | 700-1800 | 8-40 | 980 | 45-160 | 68-85 |
400QSZ | 1050-2640 | 12-33 | 980 | 132-160 | 71-85 |
500QSZ | 1400-3600 | 9-22.5 | 980 | 110-200 | 72-85 |
Heavy duty and high pressure (over 60m) submersible pump Introduction:
1.Vertical Submersible slurry pump for waste water,slrrires
2.QSZ series pump is a kind of submersible slurry motor pump,and the pump and the motor are coaxial.
3.QSZ series submersible slurry motor pump mainly used in municipal engineering, industry, hospital,hotel,etc.
4. It is used for pumping sludge , sewage and city life sewage with solids and long fiber (including erosive matters )
5.Our submersible slurry motor pumps have following advantages: hi-efficiency, circumvolution proof,non-block,auto-coupling, hi-reliability and auto-control,etc.
6.The unique cable airproof is adopted, avoiding leakage of cable.
7.Rated Voltage: 380V(660V), Frequency: 50Hz, 3-phase AC. Temperature of medium under 40°C. PH of medium: 4~10. Volume ratio of solid in medium below 2%. .Density of medium should be lower than 1.2*10³kg/m³.
8..Heat protector in stator assures operating life of the motor.
9.Adopt perfect mechanical seal and the sealing material adopt tungsten carbide, silicon carbide and hard metal alloy, so it can prevent the water from entering in the motor, and keep the operating reliable and safety.
Heavy duty and high pressure (over 60m) submersible pump Structure:

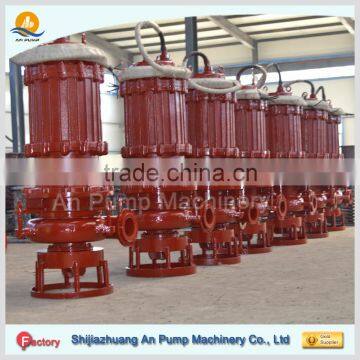

Heavy duty and high pressure (over 60m) submersible pump Show:
Factory Price Centrifugal Vertical Submersible Anti Abrasive Slurry Pump individual package:
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is The material of your products?
A: The material is Cast iron, SS 304,SS 316,SS 316L or Duplex steel.
We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 10~15 QC.
WE ARE THE FACTORY OF SLURRY PUMPS,GRAVEL PUMPS,SUMP PUMPS,WELCOME TO INQUIRE FROM US.WE WILL GIVE YOU LOWEST PRICE AND BEST QUALITY.
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
