Home > Products > Submersible Slurry Pump > Chrome Alloy Heavy Duty Dredging Suction Submersible Sand Pump
Chrome Alloy Heavy Duty Dredging Suction Submersible Sand Pump
- 8000 Set / Sets per Month
- Tianjin/Shanghai/Shenzhen/Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | QSZ Submersible Sand Pump |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | High Pressure | Application: | Other, Long Worklife Horizontal Submersible sand pump |
Product Description
Chrome Alloy Heavy Duty Dredging Suction Submersible Sand Pump
Shijiazhuang An Pump Machinery Co., Ltd
The main pump products including slurry pump, desulfurization pump, gravel pump, Submersibl sewage pump, impurity pump, split pump with large capacity, multistage pump with high lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Submersible slurry pump performance:
Pump Performance | |||||
Type | Flow (m3/h) | Head (m) | Speed (r/min) | Motor Power (KW) | Efficiency (%) |
40ASW | 8.4-14.4 | 14-16 | 2900 | 1.5 | 42-70 |
50ASW | 7-50.4 | 8-36 | 1450-2900 | 0.75-7.5 | 46-62 |
65ASW | 17.5-44.4 | 11-30.2 | 2900 | 2.2-4 | 39-72 |
80ASW | 20.3-72 | 5.7-27.5 | 2900 | 2.2-7.5 | 51-75 |
100ASW | 35-120 | 5.6-38.5 | 1450 | 4-15 | 46-80 |
150ASW | 49-300 | 5.5-44.5 | 1450 | 5.5-37 | 58-82 |
200ASW | 110-480 | 5.7-44.5 | 1450 | 11-75 | 63-83 |
250ASW | 420-840 | 7-35 | 980-1450 | 30-90 | 63-84.5 |
300ASW | 280-1140 | 6.7-27 | 980-1450 | 45-110 | 68-84.5 |
350ASW | 700-1800 | 8-40 | 980 | 45-160 | 68-85 |
400ASW | 1050-2640 | 12-33 | 980 | 132-160 | 71-85 |
500ASW | 1400-3600 | 9-22.5 | 980 | 110-200 | 72-85 |
Submersible slurry pump introduction:
1.vertical Submersible slurry pump for waste water,slrrires
2.ASW series pump is a kind of submersible sewage motor pump,and the pump and the motor are coaxial.
3.ASW series submersible sewage motor pump mainly used in municipal engineering, industry, hospital,hotel,etc.
4. It is used for pumping sludge , sewage and city life sewage with solids and long fiber (including erosive matters )
5.Our submersible sewage motor pumps have following advantages: hi-efficiency, circumvolution proof,non-block,auto-coupling, hi-reliability and auto-control,etc.
6.The unique cable airproof is adopted, avoiding leakage of cable.
7.Rated Voltage: 380V(660V), Frequency: 50Hz, 3-phase AC. Temperature of medium under 40°C. PH of medium: 4~10. Volume ratio of solid in medium below 2%. .Density of medium should be lower than 1.2*10³kg/m³.
8..Heat protector in stator assures operating life of the motor.
9.Adopt perfect mechanical seal and the sealing material adopt tungsten carbide, silicon carbide and hard metal alloy, so it can prevent the water from entering in the motor, and keep the operating reliable and safety.
Submersible slurry pump structure:

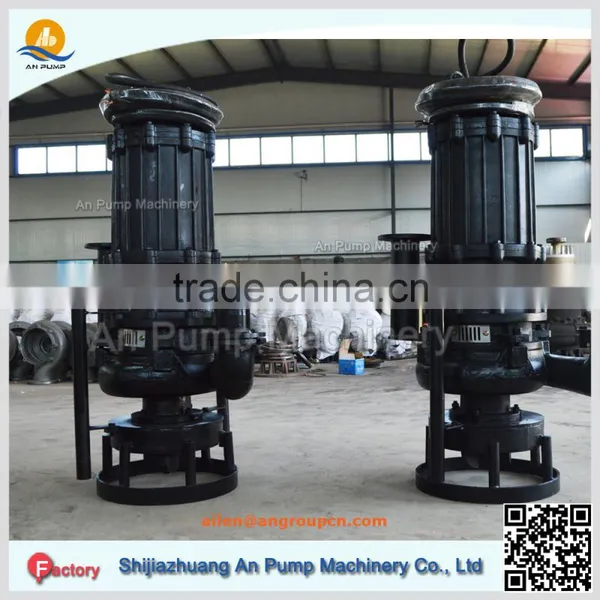

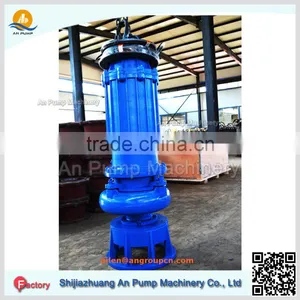

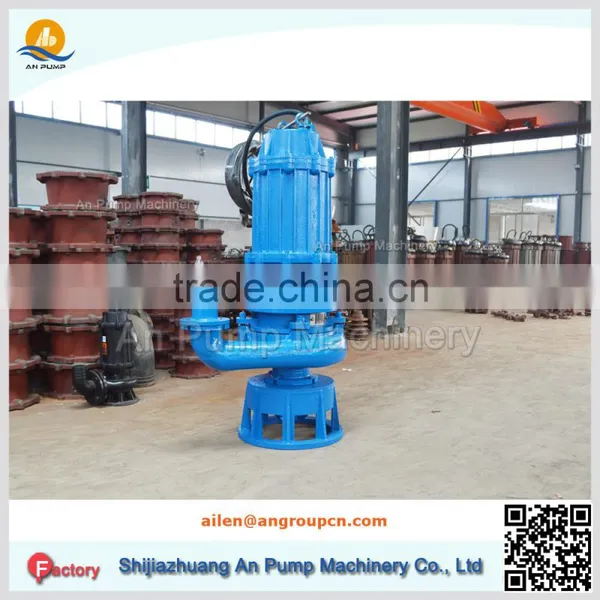

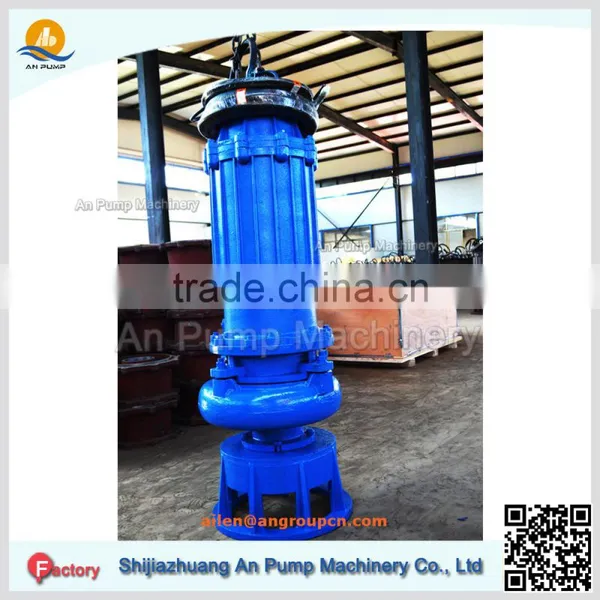

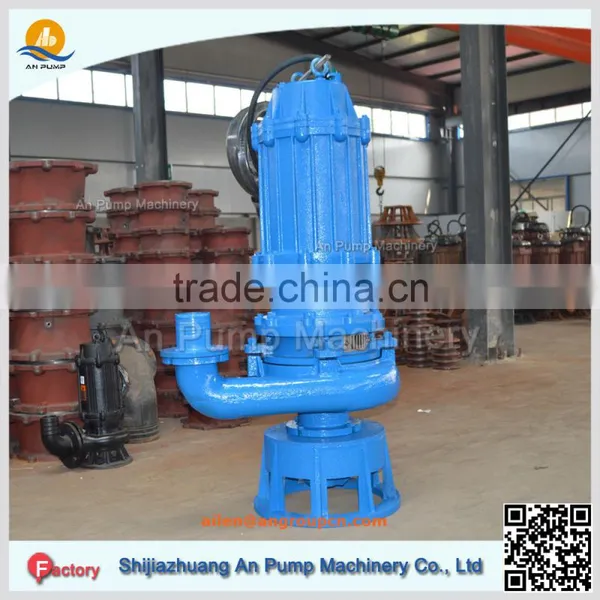

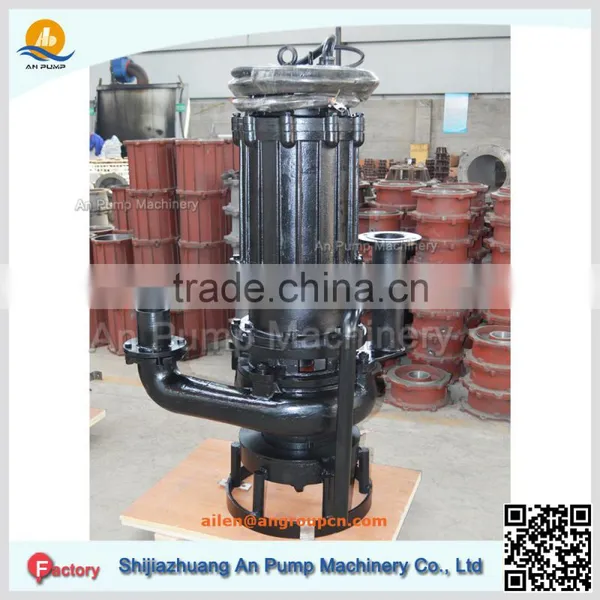

Submersible slurry pump Show:
Our Own Factory Show:
Certification:
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shijiazhuang City, Hebei Province, China.You can fly to Shijiazhuang airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is The material of your products?
A: The material is Cast iron, SS 304,SS 316,SS 316L or Duplex steel. We can also choose material as customers’ requirement.
4.Q:How can I get some samples?
A: We are honored to offer you samples.
5.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has 10~15 QC.
WE ARE THE FACTORY OF SLURRY PUMPS,GRAVEL PUMPS,SUMP PUMPS,WELCOME TO INQUIRE FROM US.WE WILL GIVE YOU LOWEST PRICE AND BEST QUALITY.
