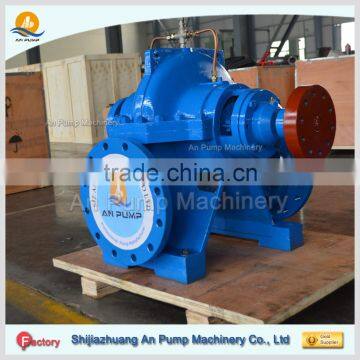

Large Volume Industrial Horizontal Split Case Centrifugal Pump
Large Volume Industrial Horizontal Split Case Centrifugal Pump details
Max Q:14400m3/h
Max H:140m
Max Temperature:80 Centigrade
CE/ISO
Drive:Diesel engine or Motor both are ok.
Material: Stainless steel, High Cr Alloy, Cast iron, Ductile cast iron, cast steel, Carbon steel, bronze
Our Company Introduction
the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Product Overview
QSH, QS Single-stage double suction centrifugal pumps for distribution of water and chemical substances with characteristicssimilar to that of liquid water. A medium temperature of 120 ° C. Ability to Change the seal ring,
bushings and the impeller if the material contains sediment as in the case of “muddy” water.
Pump seals most commonly used are soft filler seal. However, in cases of special requirements
can be modified to mechanical seals, from the point of view of the electrical pump,

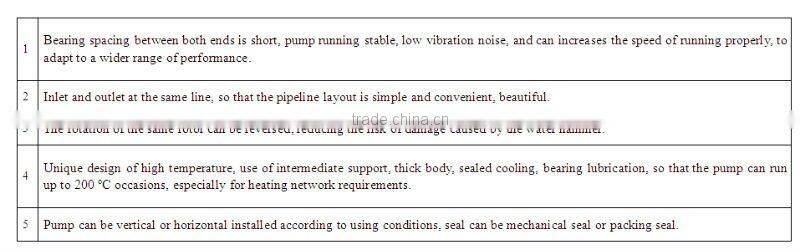

Large Volume Industrial Horizontal Split Case Centrifugal Pump advantage
Large Volume Industrial Horizontal Split Case Centrifugal Pump structure
| Part | Feature |
| Split casing | Axially |
| Impeller | Double entry |
| Bearing | Heavy duty rotor bearing |
| Shaft seal | Gland seal and mechanical seal |
| Shaft | Heavy duty |
| Wearing ring | Easy to replace |
| Volute | Single/double volute |
| Design | Hydraulic geometry optimized |
Large Volume Industrial Horizontal Split Case Centrifugal Pump parameters
Large Volume Industrial Horizontal Split Case Centrifugal Pump function
Large Volume Industrial Horizontal Split Case Centrifugal Pump material
1. Pump Casing and Cover : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze
2. Pump Impeller : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu ; Bronze
3. Shaft : Carbon steel AISI1045 ; Chrome Steel 40Cr ; SS AISI420 ; SS AISI4140 ; SS316Ti ; SS DIN1.4571 ; Duplex SS UNS S32205
4. Seal Type : Mechanical seal , gland packing.
5. Bearing Type : Ball Rolling
6. Shaft Sleeve : Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
7. Wearing Ring: Cast Steel ; SS304 316 316L ; Duplex SS CD4-MCu
Large Volume Industrial Horizontal Split Case Centrifugal Pump structure
Large Volume Industrial Horizontal Split Case Centrifugal Pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
