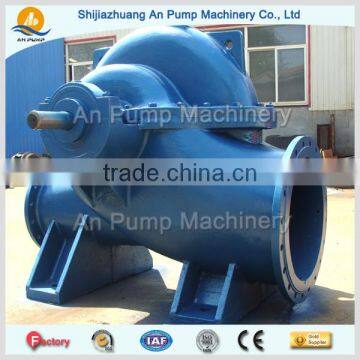

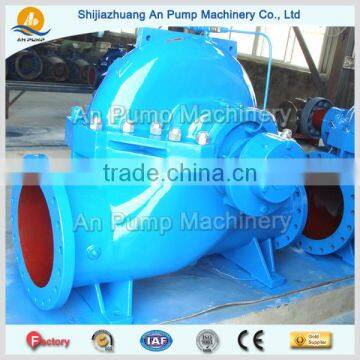

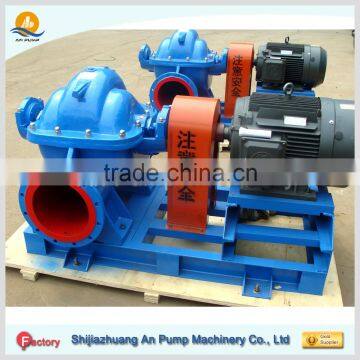

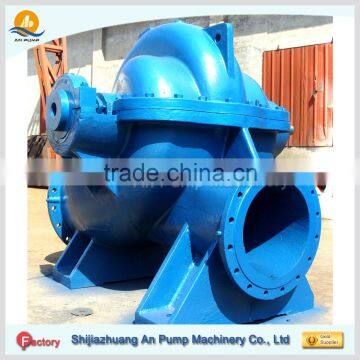

QD single stage double suction electric split case pump
QD single stage double suction electric split case pump introduction
Model QS pump is a single-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over 125 , suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects. This series pump comply with the standards of GB/T3 216 and GB/T5657.
Specification
Caliber |
DN80-800mm |
Capacity |
Q≤11600m³/h |
Head |
H≤200m |
Working pressure |
P≤2.5Pa |
Working temperature |
T≤105°C |
Working voltage |
U=380V,6KV,10KV |
QD single stage double suction electric split case pump structure feature
A. Compact structure, space effective and much shorter axial dimensions.
B. Small vibration and low noise, achieved mainly by means of the follow:
1) The pump casing adopts the double-volute structure
2)The rotor part has short axial dimensions and a good rigidity.
3)The pump shaft adopts the imported high-precision bearing for the support.
QD single stage double suction electric split case pump parameter
Type |
Flow(m3/h) |
Head(m) |
Speed(rpm) |
Power(KW) |
QS150 |
112--220 |
35--84 |
2900 |
30--55 |
QS200 |
160--351 |
31--100 |
2900 |
37--110 |
QS250 |
324--612 |
8.6--65.1 |
1450 |
22--132 |
QS300 |
504--1663 |
8.7--140 |
1450--1470 |
22--680 |
QS350 |
745--1570 |
10--125 |
1450--1470 |
55--630 |
QS400 |
900--1620 |
32--85.5 |
980--1480 |
440--500 |
QS500 |
1150--3800 |
10.6--108 |
740--970 |
110--800 |
QS600 |
2300--4000 |
13--80 |
730--970 |
145--730 |
QS700 |
2111--4896 |
39.5--99.5 |
742--980 |
397--1252 |
QS800 |
3960--6878 |
23--84 |
600--750 |
450--1600 |
QS1000 |
6600--9900 |
32--52 |
600 |
1250 |
QS1200 |
5832--14400 |
6--95.7 |
500--745 |
710--3450 |
QD single stage double suction electric split case pump curve
QD single stage double suction electric split case pump application
Industry |
Plumbing Applications |
General water supply |
Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage |
Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing |
Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief |
Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater |
Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining |
Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
QD single stage double suction electric split case pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An Pump Machinery company has its own Kingda type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
Learn more , please contact us directly.
