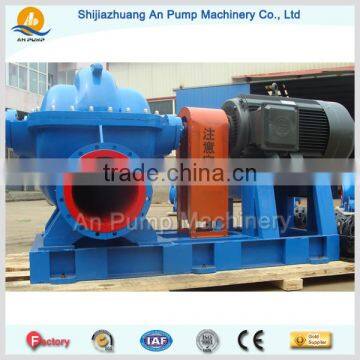

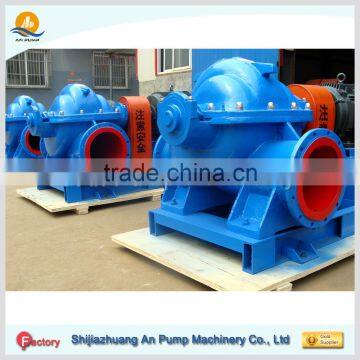

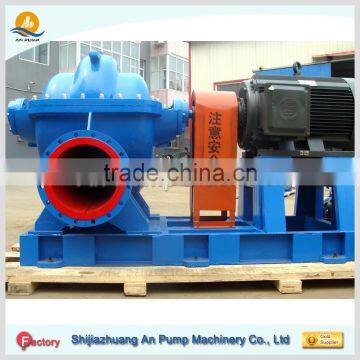

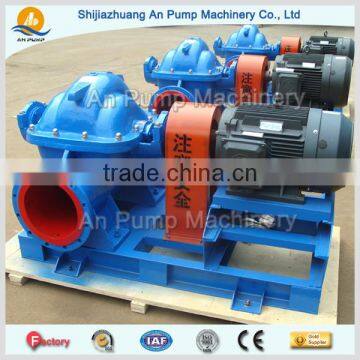

Powerful Irrigation Big Split case pump and water pump controls
Powerful Irrigation Big Split case pump and water pump controls
The casing is axially split, the casing is axially split, which permits removal of the complete rotor without moving either piping or motor.Pumps generating high heads have double volutes to reduce radial forces.
Replaceable wear ring protect the casing at the impeller running clearances. Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing is optional according your working conditon, and so as electric motor or diesel engine driver.
Powerful Irrigation Big Split case pump and water pump controls Application
The split casing pump is widely used in water supply or drainager projection in different industries, such as metallurgy, power station, spinning and weaving, chemical, printing, dyeing, ceramics, rubber, heating, afterheating use, air conditioner, farm irrigtion and drainage, and so on...
Material of Powerful Irrigation Big Split case pump and water pump controls
Casing |
Cast Iron and Ductile Iron standard; optional Stainless Steel |
Impeller |
Bronze standard, optional Brass, Cast Iron, and Stainless Steel |
Split casing pump Shaft |
AISI420 standard, optional AISI304 & AISI316 |
General Description of Powerful Irrigation Big Split case pump and water pump controls
Type QS,QSH pumps are single stage, double suction with horizontally split casings.
Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.
Constructure drawing of Powerful Irrigation Big Split case pump and water pump controls
Powerful Irrigation Big Split case pump and water pump controls
performance parameters
Model |
Flow rate (m3/hr) |
Head (m) |
Speed (rpm) |
Power (kw) |
Eff (%) |
QS150 |
110~220 |
35~84 |
2900 |
30~55 |
67~80 |
QS200 |
160~351 |
31~100 |
2900 |
37~110 |
67~85 |
QS250 |
324~612 |
8.6~71 |
1450 |
22~132 |
72~86 |
QS300 |
504~972 |
8~98 |
1450 |
30~300 |
70~84 |
QS350 |
745~1663 |
10~140 |
1450 |
55~680 |
70~88 |
QS400 |
900~1620 |
32~98 |
980~1480 |
155~500 |
71.5~84 |
QS500 |
1150~2450 |
10.6~108 |
740~970 |
110~800 |
70~89 |
QS600 |
2304~4000 |
13~80 |
730~970 |
185~900 |
70~91 |
QS700 |
2111~4896 |
39.5~99.5 |
740~980 |
560~1250 |
72~92 |
QS800 |
3960~7200 |
23.5~84 |
600~740 |
450~1600 |
77~92 |
QS1000 |
6000~9900 |
32~52 |
600~990 |
1250 |
79~87 |
QS1200 |
5832~14400 |
6~95.7 |
500~745 |
710~3450 |
80~90 |
We also supply all kinds of control panel and water pump controller as the fucntion required of the customer!
An Pump Machinery is your Best Powerful Irrigation Big Split case pump and water pump controls Manufacturer
An Pump Machinery Co. ,Ltd is the water pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated split case water pump Manufacturer
An Pump Machinery is also CE cerficated double suction water pump Manufacturer
Standard wooden case packing of Powerful Irrigation Big Split case pump and water pump controls
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
| End suction pump | Split casing pump | Multistage pump |
|
|
|
