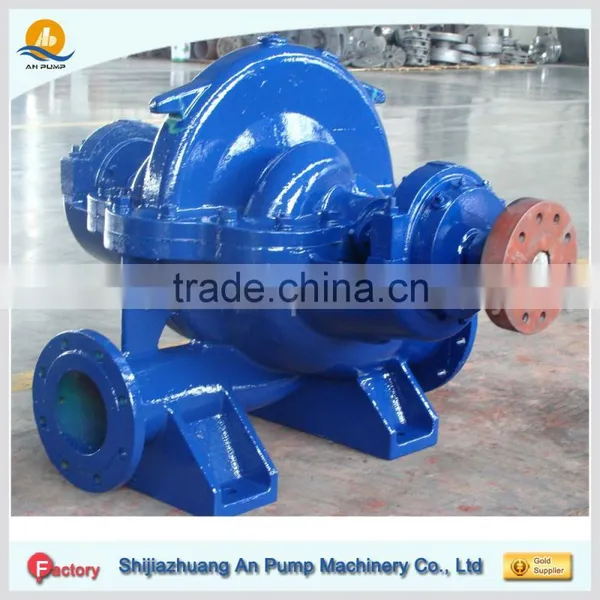

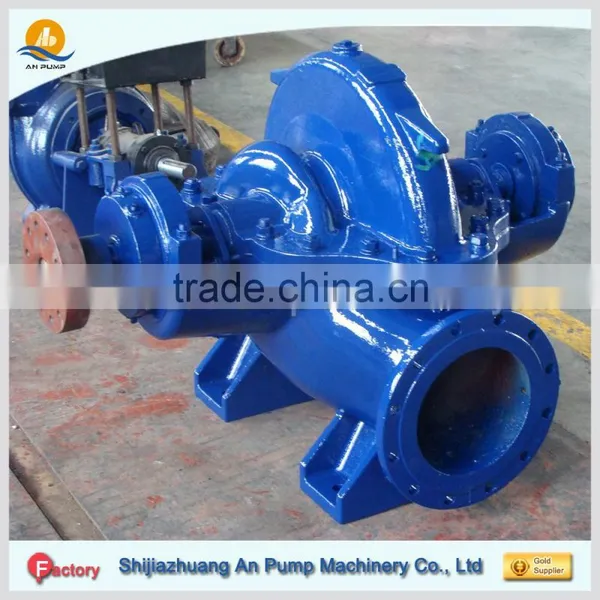

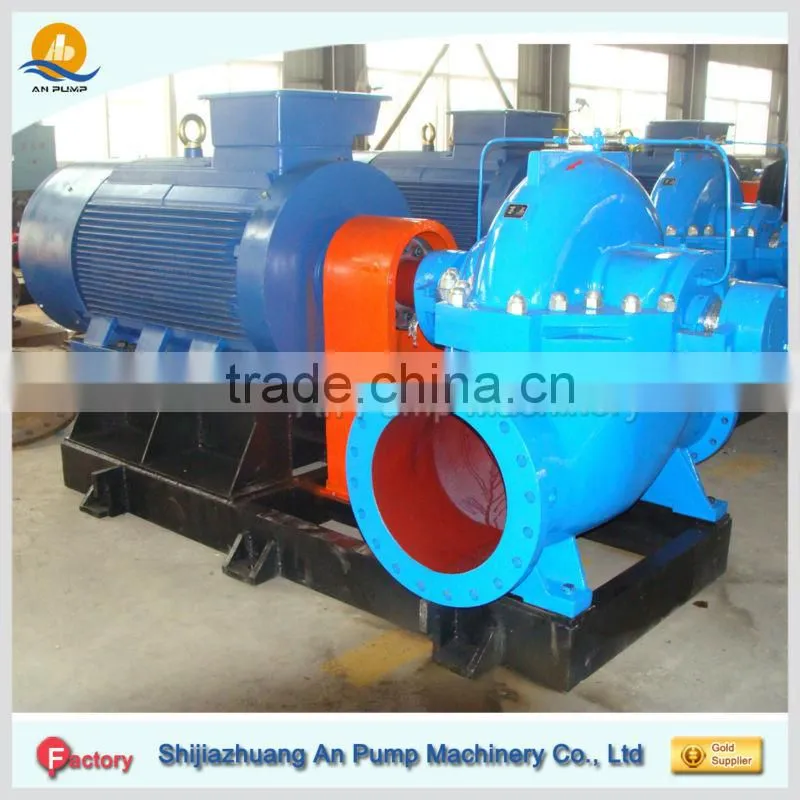

low head large flow centrifugal split case pump
- 1000 Set / Sets per Month
- Tianjin or other seaports in China
- T/T Credit Card PayPal
You May Like
-
Big Powerful Split case Chilled water circulation pump
-
single-stage high capacity low head split casing pump
-
Large Volume Double Suction Diesel Engine Irrigation Water Pump
-
Centrifugal Horizontal Double Suction Split Casing Diesel Pumping Set
-
Large Flow Centrifugal Double Suction Split Case 250hp Waterpump
-
electric engine driven fire fighting pump with motor
Product Details
| Place of Origin | Hebei, China | Brand Name | An Pump | |
| Model Number | QS low head large flow centrifugal split case pump | Theory | Other, Centrifugal Split Case Pump | |
| Structure | Other, Horizontal Centrifugal Split Case Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Other, desiel/electric split case pump | Pressure | Other, standard | |
| Application | Other, low head large flow centrifugal split case pump |
Product Description
low head large flow centrifugal split case pump
Split Casing Pump Description
Type QS pumps are single stage, double suction with horizontally split casings.They are suitable for pumping clean water or liquid similar to it in physical and chemical properties at a temperature not exceedding 80 °C ( for common material ) .
The main components of QS,QSH pump are listed as follows:lower half casing , upper half casing , impeller , shaft , double suction sealing , shaft sleeve , bearing housings , and couplings .
double suction pump features
| 1. Large flow rate |
| 2. Operation stability |
| 3. Double-volute structure |
| 4. Resonable price |
| 5. OEM available |
Split Casing Pump performance parameters
| Type | Flow(m3/h) | Head(m) | Speed(rpm) | Power(KW) |
| QS150 | 112--220 | 35--84 | 2900 | 30--55 |
| QS200 | 160--351 | 31--100 | 2900 | 37--110 |
| QS250 | 324--612 | 8.6--65.1 | 1450 | 22--132 |
| QS300 | 504--1663 | 8.7--140 | 1450--1470 | 22--680 |
| QS350 | 745--1570 | 10--125 | 1450--1470 | 55--630 |
| QS400 | 900--1620 | 32--85.5 | 980--1480 | 440--500 |
| QS500 | 1150--3800 | 10.6--108 | 740--970 | 110--800 |
| QS600 | 2300--4000 | 13--80 | 730--970 | 145--730 |
| QS700 | 2111--4896 | 39.5--99.5 | 742--980 | 397--1252 |
| QS800 | 3960--6878 | 23--84 | 600--750 | 450--1600 |
| QS1000 | 6600--9900 | 32--52 | 600 | 1250 |
| QS1200 | 5832--14400 | 6--95.7 | 500--745 | 710--3450 |
Split Casing Pum performcance curve
Split Casing Pum constructure
Split Casing Pum on site application
Industry | Plumbing Applications |
General water supply | Circulation of HVAC building systems , water booster service , boiler feed , general circulation service and more . |
Agriculture / Food / Beverage | Irrigation , water supply , food processing , beverage processing , fertilizers . |
Manufacturing | Pulp and paper fans , plastic & rubber , metal & steel , pharmaceutical , paper mills , air wash , marine ballast service . |
Fire / Disaster Relief | Fire pumps , fire protection , flood control , disaster relief , federal / military . |
Utilities : Water / Wastewater | Power Generation stations , dewatering , desalination , energy recovery turbines |
Chemical / Mining | Chemical plants , refineries , petroleum distribution , coal sites , ethylene glycol pumping . |
If interested, please contact us right now ! ! !
An Pump Machinery is your Best Pump Manufacturer
An Pump Machinery Co. ,Ltd is the pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc.
An Pump Machinery is your ISO certificated Pump Manufacturer
An Pump Machinery is also CE cerficated and ISO certificated Pump Manufacturer
