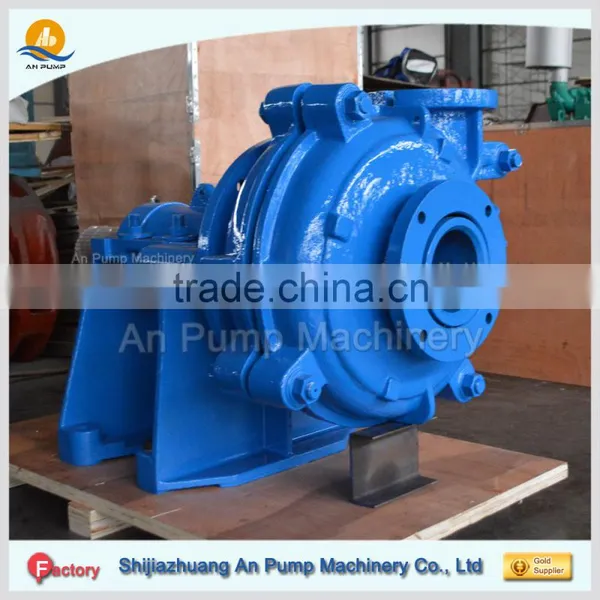

Centrifugal Electric Trash Slurry Pump

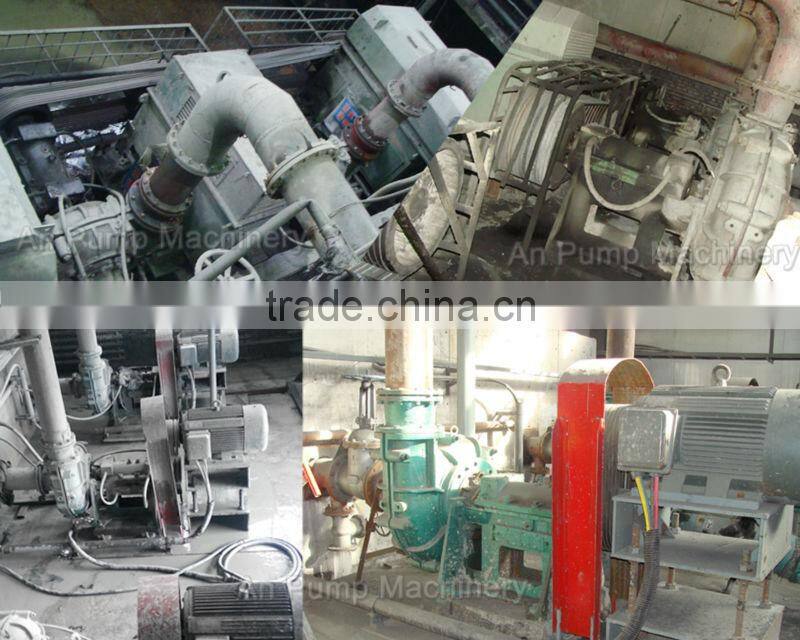

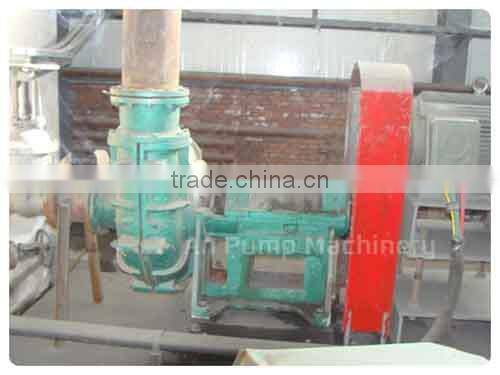

Application of Centrifugal Electric Trash Slurry Pump
Chemical Process Heavy Minerals Paper and Pulp Mill Discharge Sugar Beet Slag Granulation Bottom Boiler and Fly Ash Cyclone Feed Power Utilities | |
What's the details of Centrifugal Electric Trash Slurry Pump
AM/AMR series is horizontal, cantilevered centrifugal slurry pump, with reasonable construction, reliable operation, long service life. It is widely used in transporting abrasive or / and corrosive slurry in mining, metallurgy, electric power, coal, chemicals, building, etc. Especially well accepted by coal / chrome washing plant, mineral processing plant, power plant etc.
Design Features of Centrifugal Electric Trash Slurry Pump
• Bearing assembly –A large diameter shaft with short overhang minimizes deflection and contributes to
long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
• Liners –Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease
of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
• Casing –Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure
capabilities and an extra measure of safety.
• Impeller –Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Throat bush –Wear is reduced and maintenance simplified by the use of tapered mating faces to allow
positive accurate alignment during assembly and simple removal.
• One-piece frame –
A very robust one-piece frame cradles the cartridge type bearing and shaft assembly.
An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

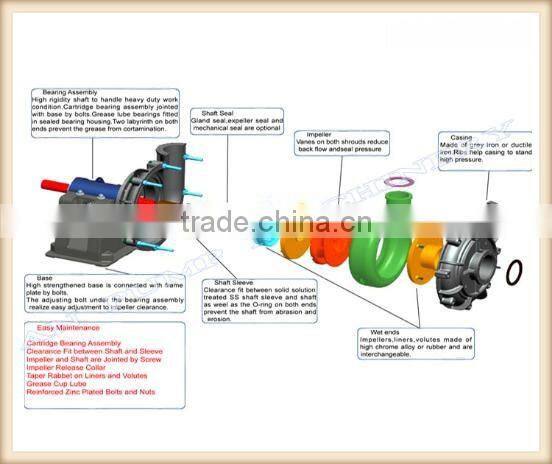

AM/AMR Centrifugal Electric Trash Slurry Pump Structure
Centrifugal Electric Trash Slurry Pump Performance Data
Model | Power (kw) | Material | Clear water performance | ||
Capacity Q ( m3/h) | Head H ( m) | Speed n (rpm) | |||
1.5/1B-AM | 15 | M | 12.6~28.8 | 6~68 | 1200~3800 |
RU | 10.8~25.2 | 7~52 | 1400~3400 | ||
1.5/1B-AMH | 30 | M | 16.2~34.2 | 25~92 | 1400~2200 |
2/1.5B-AM | 15 | M | 32.4~72 | 6~58 | 1200~3200 |
RU | 25.2~54 | 5.5~41 | 1000~2600 | ||
3/2C-AM | 30 | M | 39.6~86.4 | 12~64 | 1300~2700 |
RU | 36~75.6 | 13~39 | 1300~2100 | ||
4/3C-AM | 30 | M | 86.4~198 | 9~52 | 1000~2200 |
4/3D-AM | 60 | ||||
4/3C-AM | 30 | RU | 79.2~180 | 5~34.5 | 800~1800 |
4/3D-AM | 60 | ||||
4/3E-AMH | 120 | M | 126~252 | 12~97 | 600~1400 |
6/4D-AM | 60 | M | 162~360 | 12~56 | 800~1550 |
6/4E-AM | 120 | ||||
6/4D-AM | 60 | RU | 144~324 | 12~45 | 800~1350 |
6/4E-AM | 120 | ||||
6/4F-AMH | 260 | M | 100~414 | 34~98 | 600~1000 |
8/6E-AM | 120 | M | 360~828 | 10~61 | 500~1140 |
8/6E-AM | 120 | RU | 324~720 | 7~49 | 400~1000 |
10/8ST-AM | 560 | M | 612~1368 | 11~61 | 400~850 |
RU | 540~1188 | 12~50 | 400~750 | ||
10/8E-MM | 120 | M | 666~1440 | 14~60 | 600~1100 |
10/8E-MM | 120 | RU | 540~1188 | 10~42 | 500~900 |
12/10ST-AM | 560 | M | 936~1980 | 7~68 | 300~800 |
M | 720~1620 | 7~45 | 300~650 | ||
14/12ST-AM | 560 | M | 1260~2772 | 13~63 | 300~600 |
RU | 1152~2520 | 13~44 | 300~500 | ||
16/14ST-AM | 560 | M | 1368~3060 | 11~63 | 250~550 |
16/14TU-AM | 1200 | ||||
18/16ST-AM | 560 | M | 2160~5040 | 8~66 | 200~500 |
18/16TU-AM | 1200 | ||||
20/18TU-AM | 1200 | M | 2520~5400 | 13~57 | 200~400 |
Shipping Deatails for Centrifugal Electric Trash Slurry Pump
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
