Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > AZ High Efficient Horizontal Slurry Pump

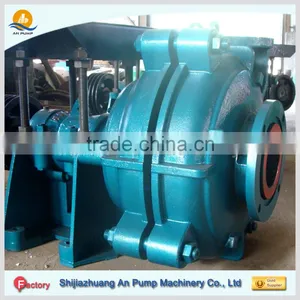

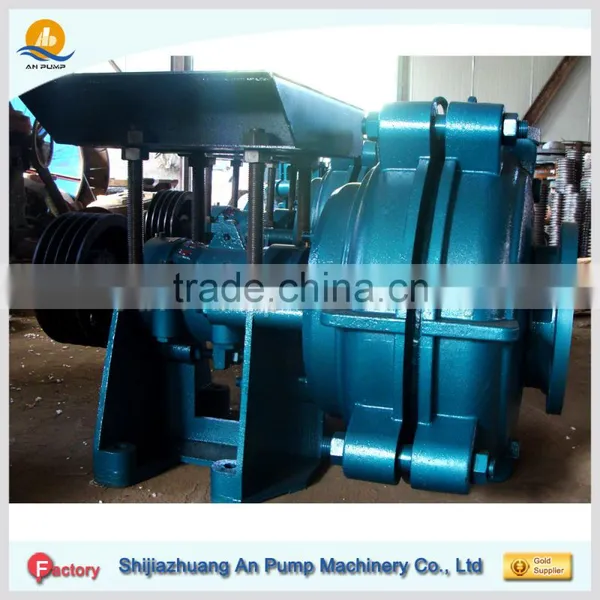

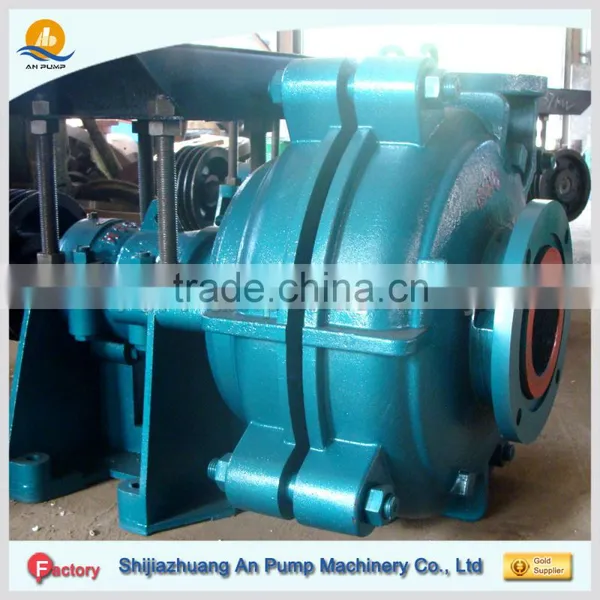

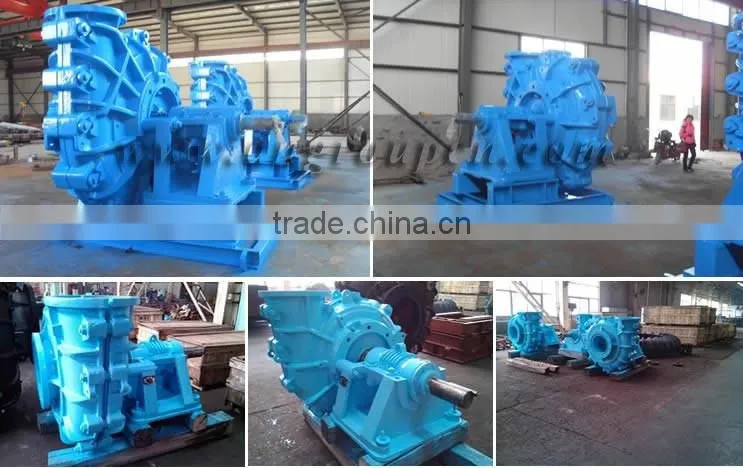

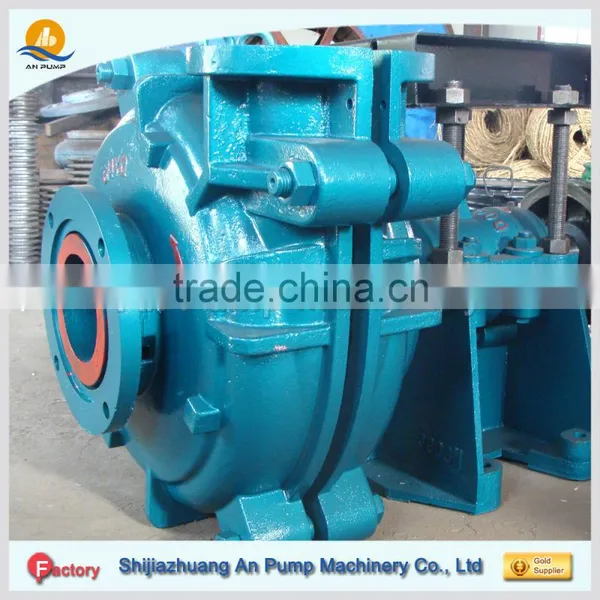

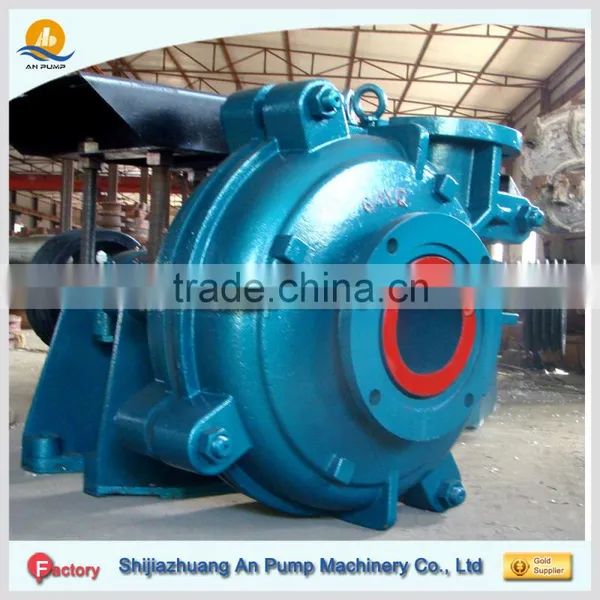

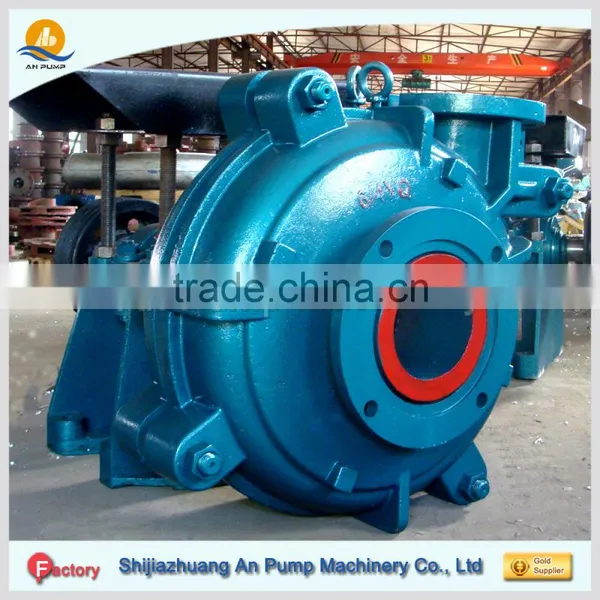

AZ High Efficient Horizontal Slurry Pump

Name: AZ High Efficient Horizontal Slurry Pump
Brand: An Pump
SKU: 141181574
Availability: InStock

AZ High Efficient Horizontal Slurry Pump thumbnail-1

AZ High Efficient Horizontal Slurry Pump thumbnail-2

AZ High Efficient Horizontal Slurry Pump thumbnail-3

AZ High Efficient Horizontal Slurry Pump thumbnail-4

AZ High Efficient Horizontal Slurry Pump thumbnail-5

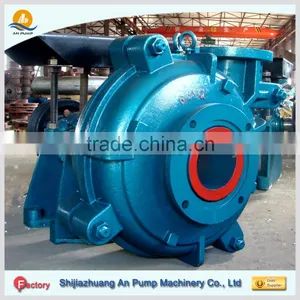

AZ High Efficient Horizontal Slurry Pump thumbnail-6

AZ High Efficient Horizontal Slurry Pump photo-1

AZ High Efficient Horizontal Slurry Pump photo-2

AZ High Efficient Horizontal Slurry Pump photo-3

AZ High Efficient Horizontal Slurry Pump photo-4

AZ High Efficient Horizontal Slurry Pump photo-5

AZ High Efficient Horizontal Slurry Pump photo-6

US$ 150 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

An Pump

Model Number:

Contact Supplier Request Quote Chat Now

Shijiazhuang An Pump Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin or Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name An Pump

Model Number AM

Theory Other, Centrifugal Pump, Centrifugal Pump

Structure Single-stage Pump

Usage Other, Submersible Mineral Slurry,vertical slurry pump

Power Electric

Standard or Nonstandard Standard

Fuel Other, Diesel, Sump slurry pump

Pressure High Pressure

Application Submersible

AZ High Efficient Horizontal Slurry Pump

The AZ series centrifugal horizontal slurry Pump is Chinese design slurry pumps. It is advanced designed in oil lubricated frame could be more steady work in high pressure or the pumps in series. The impeller design is advanced and could be adjusted according to the requirement of the work site instead of using different type of pumps which is Min the pump and parts required and much easy to use and main. The AZ series centrifugal horizontal slurry Pump is widely used in power plant, metallurgy, mining, coal, building material and chemical industries to deliver abrasive fluid which is the best choice for updating old design slurry pumps!

1.AZ High Efficient Horizontal Slurry Pump Feature

The AZ series centrifugal horizontal slurry Pump is single stage, single suction, horizontal centrifugal pump.

(1) The Impeller of AZ slurry pumps could be adjustable. The engineer could calculate the flow and head required then cut the impeller of AZ series slurry pump's impeller to satisfy different required of the customers without new size pump. It could make the pump quantity and pump size at the min ratio and required the min spare parts to lower your cost

(2) The AZ series centrifugal horizontal slurry Pumps are designed used oil lubricated frame instead of grease type. The oil cycles in the frame to cool the bearing and longer the use life the bearing and make the pump operation steady in high pressure conditions or the pumps in series.

(3) The AZ series centrifugal horizontal slurry Pump is designed at 4 pieces of packing and expeller seal together which is better performance in high pressure or the pumps in series conditions.

(4) The advanced design with new development of high chrome materials make the pump much less in weight which means the pump are much economic at same size comparing AM series slurry pump but same in use life and hydraulic performance.

(5) Direct connection arrangement of AZ slurry pumps is the best arrangement with lowest power lost.

The AZ series centrifugal horizontal slurry Pumps are the best replacement products for AM series slurry pump in most conditions!

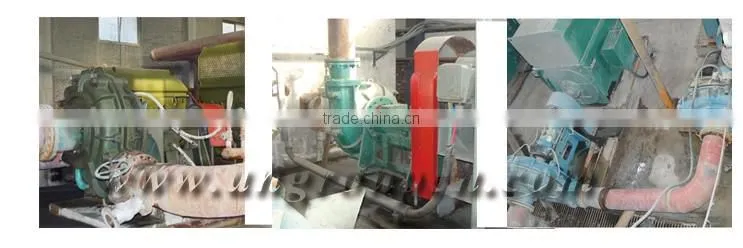

2.AZ High Efficient Horizontal Slurry Pump Application

Application Field:

.Metallurgy and mine: Transport black and colored course-mine, fine-mine and slurry of end-mine, etc.

.Electric power: Transport ash mud & slurry in electric power, etc.

.Coal: Transport various course & fine coal mud, etc.

.Constructional material: Transport various slurry contain mud & sand, etc.

.Chemical industry departments: Transport every kinds of abrasive and corrosive slurry in the

phosphorus and kalium manufactories, etc.

.Environmental protection: Flue gas desulfurization and transportation of gypsum mortar, etc.

Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc.

3.AZ High Efficient Horizontal Slurry Pump Materials

The AZ High Efficient Horizontal Slurry Pump is the heavy duty pump special designed for mining and mineral, power plant and general industrial department.

New development High Chrome Cast Iron make AZ High Efficient Horizontal Slurry Pump have the long time use-life. In some conditions, the new development Rubber materials have better performance when there is acid conditions. You could also find some rubber lined pump for your different required!

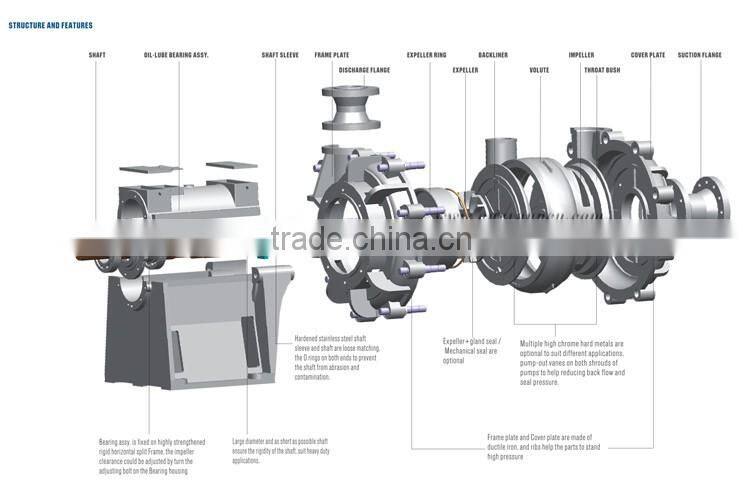

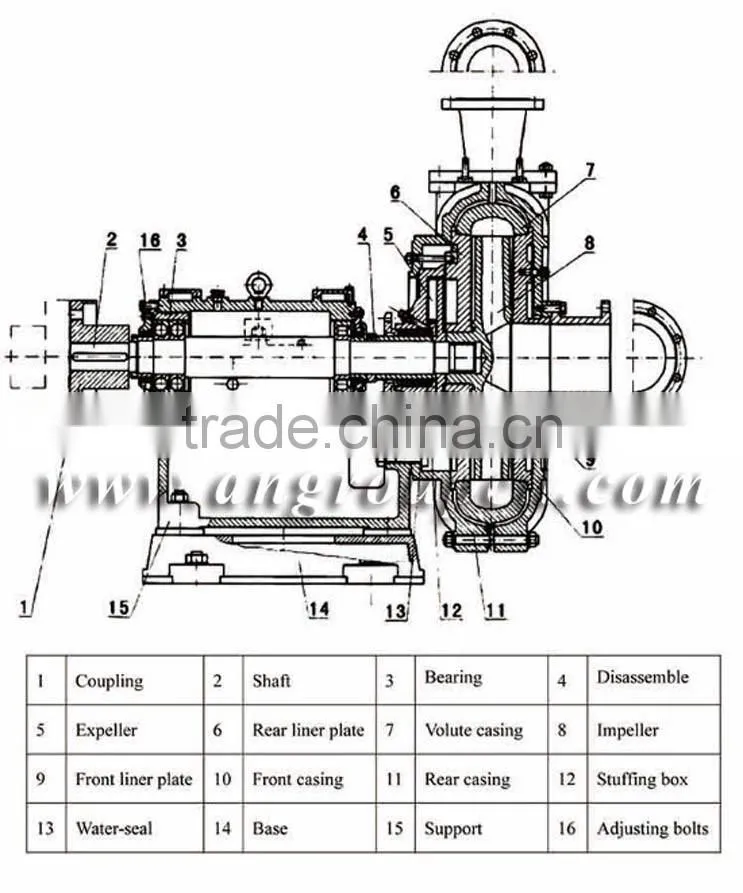

4.AZ High Efficient Horizontal Slurry Pump Structure

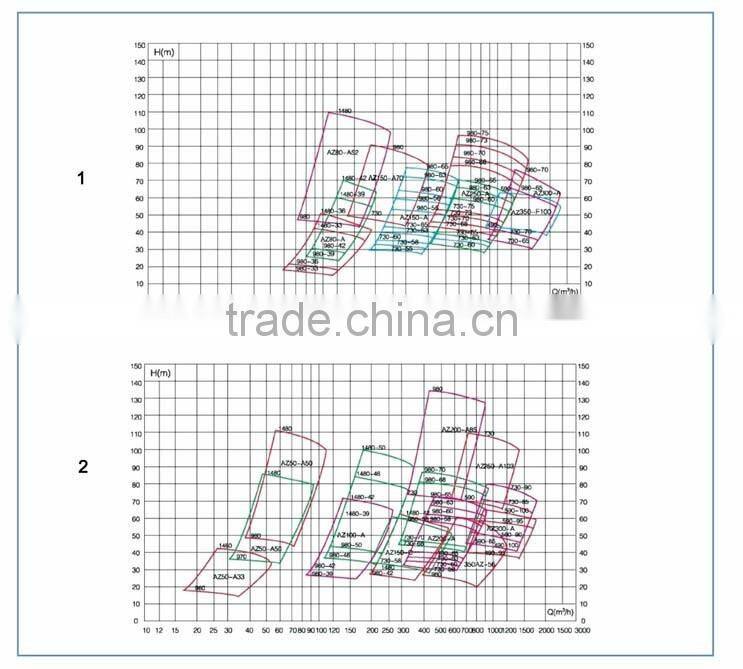

5.AZ High Efficient Horizontal Slurry Pump Atlas Curve

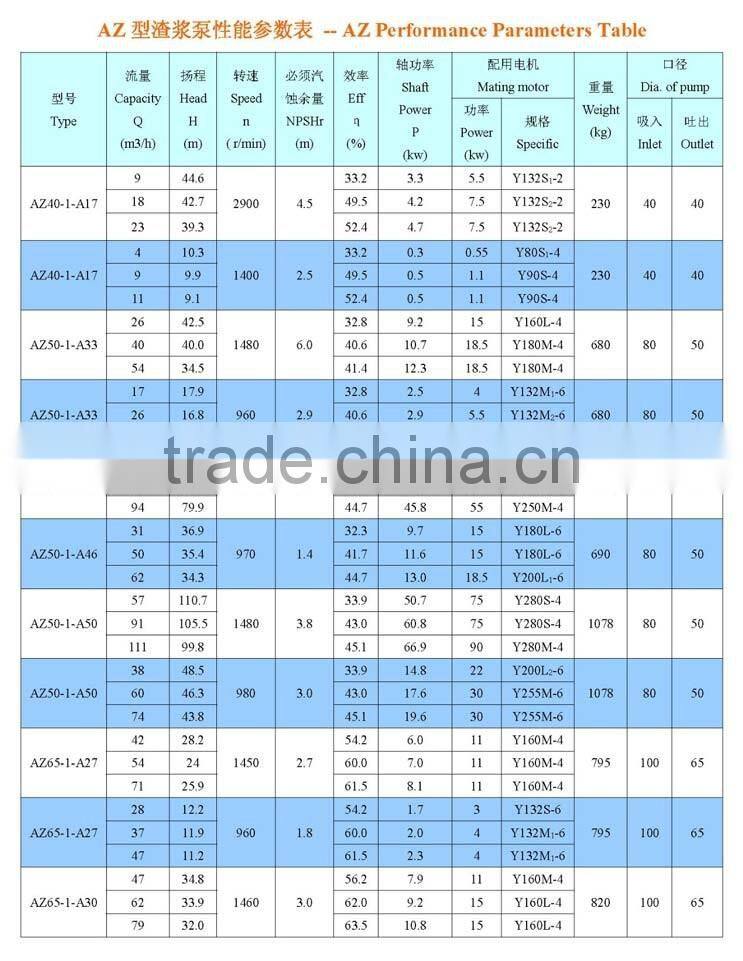

6.AZ High Efficient Horizontal Slurry Pump Data Sheet

It is only parts of the data sheet, pls contact us for more!

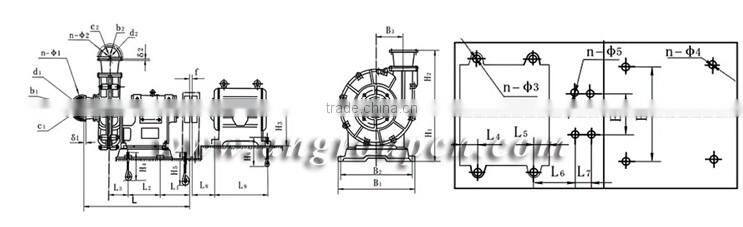

7.AZ High Efficient Horizontal Slurry Pump Size
