BP Vertical Slurry Sump Pump
*-*-*-*-* OVERVIEW *-*-*-*-*
Overview of Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
This kind of heavy duty vertical submersible sand pumps are cantilevered vertical slurry pump with rubber liners, impeller and other wet end parts.
An pump machine centrifugal sand pump manufacturer
*-*-*-*-* APPLICATION *-*-*-*-*
Application for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
Heavy duty submersible sand pump mainly used for delivery the slurry which is strong corrosive with fine particles. Vertical slurry pump are widely used to transport slurry with strong corrosion and high concentration for many industries, such as metallurgy, mine, coal, electric power and so on, for example the cracking operations.
*-*-*-*-* FUNCTION *-*-*-*-*
Function of the agitator for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
The agitator of heavy duty vertical submersible sand pump help to stir the slurry to aviod the solid will be prcipitated and help the pump suck slurry smoothly.
*-*-*-*-* PERFORMANCE DATA *-*-*-*-*
Perfomance data of Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
| Item | Data |
| Capacity(Flow rate) (Q) | 17~1267m3/h 4.7~352L/S |
| Total dynamic Head (H) | 4~40m |
| Speed | 350~2200rpm |
| Max Passed Particle Size | 65mm |
| Slurry Density | 60% |
| Slurry PH Rate: | 2~11 |

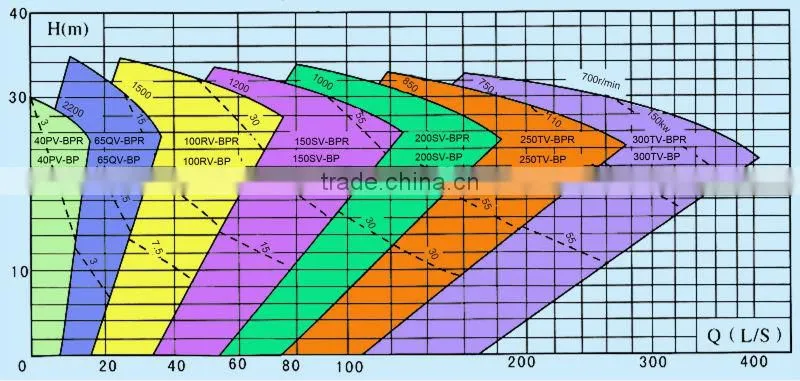

*-*-*-*-* CURVE CHART *-*-*-*-*
Performance curve for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
*-*-*-*-* MATERIAL LIST *-*-*-*-*
Material of Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
Metal material:
| Item | Code |
| Chrome alloy | Cr |
| Cast iron | - |
| Grey iron | HT |
| Ductile cast iron | QT |
| Staniless Steel | SS304, SS306, SS316L |
| Duplex stainless steel | CD-4MCu |
| Bronze | - |
Rubber material:
Category | Specification |
Natural rubber | Ru |
Synthetic rubber | Ternary ethylene, Nitrile rubber, Neoprene rubber, Butyl rubber |

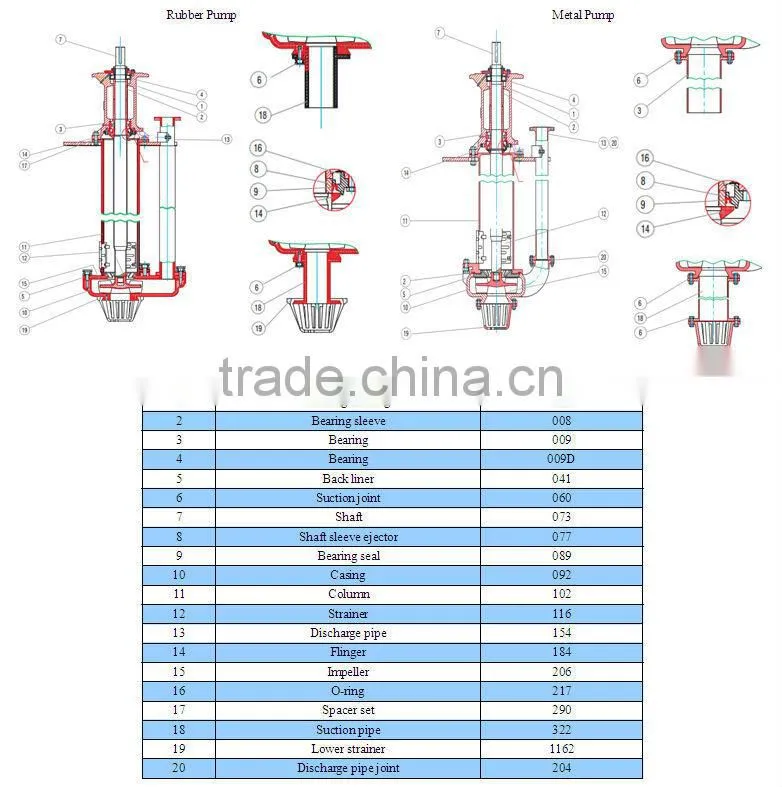

*-*-*-*-* CONSTRUCTION *-*-*-*-*
Construction for Heavy Duty Single Stage Centrifugal Vertical Submersible Sump Sand Sewage Slurry Pump
