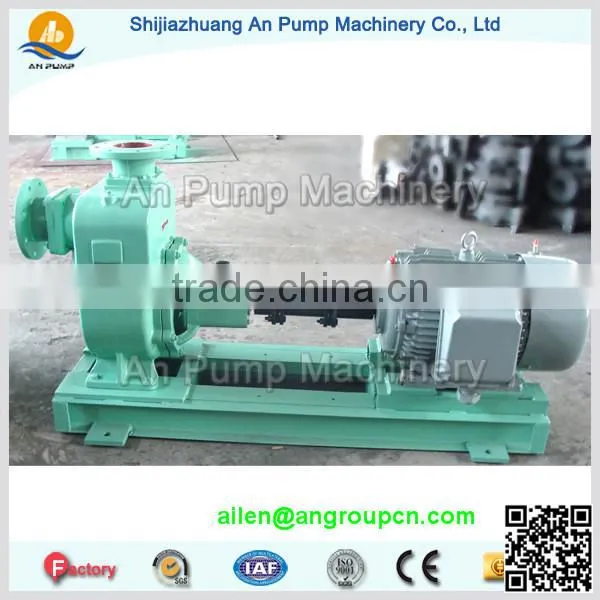

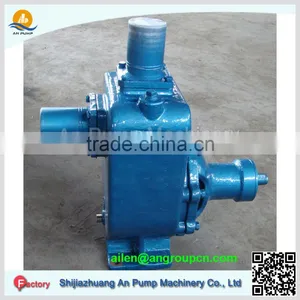

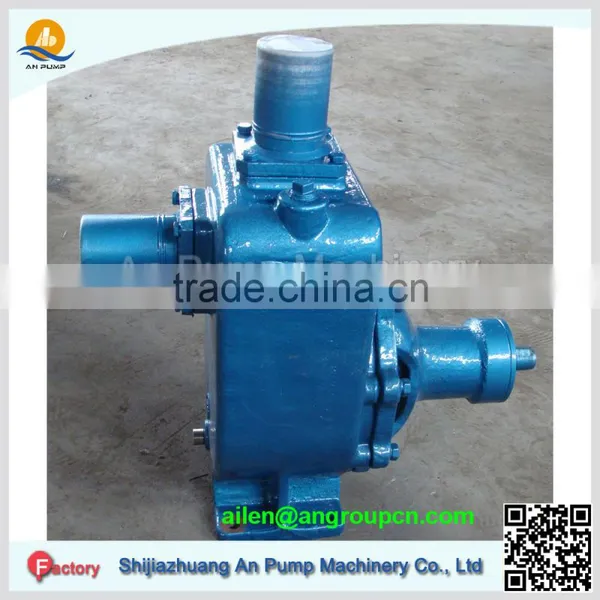

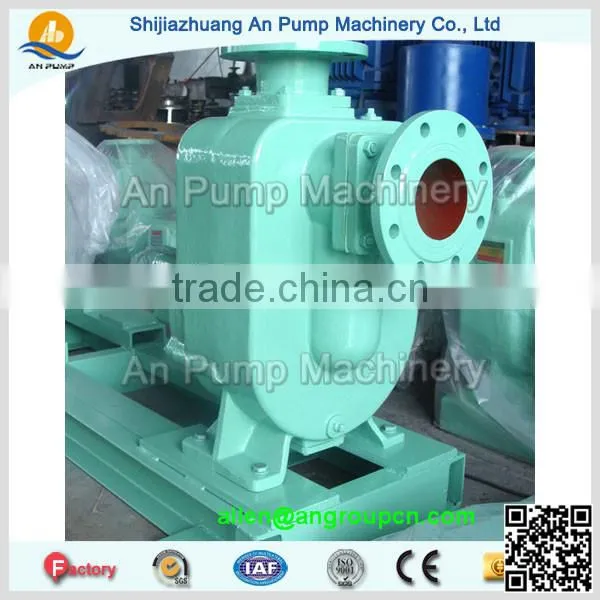

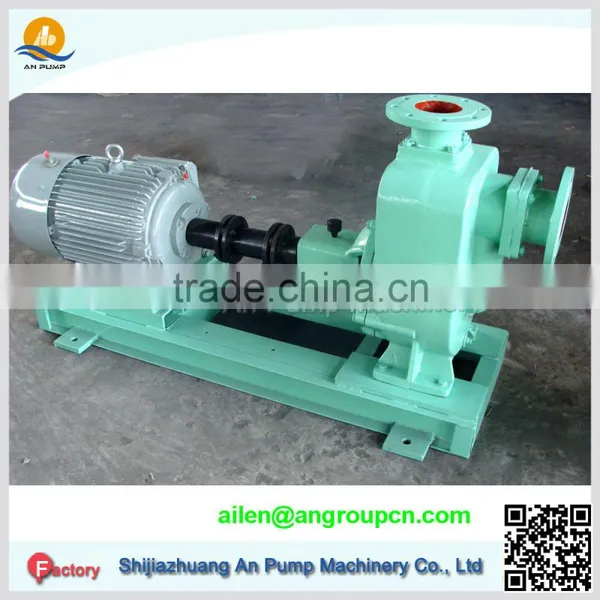

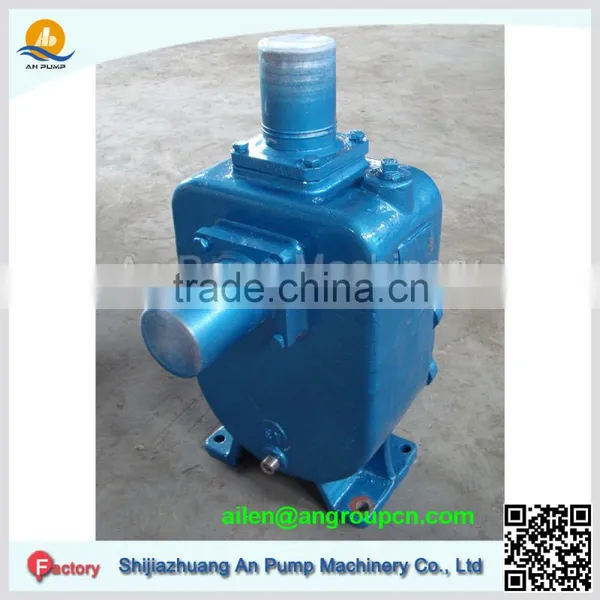

Centrifugal Horizontal Mono Block Self Priming Pump
∧∧∧ OVERVIEW ∧∧∧
Overview of Centrifugal Horizontal Mono Block Self Priming Pump
AZX series Mono block self priming pump is a kind of self priming centrifugal pump, with advantages of simple construction, convenient operation and maintenance, stable working, high efficiency, long service life, good self priming performance etc.
∧∧∧ APPLICATION ∧∧∧
Application of Centrifugal Horizontal Mono Block Self Priming Pump
| Mono block self priming pump model | Application |
| self priming water pump |
1. environment protection, construction, fire protection, chemical industry, pharmacy, printing & dyestuff, brewage, electric power, electroplate, papermaking, washing for indsutry and mine, cool for device. 2. spray after setting up the rotating sprinkler on the farm or garden 3. suitable for clean water, sea water and cemical medium with acid and alkali and mushy slurry. 4. transport slurry to compressor anf filter with compressor and filter. |
| non blocking self priming sewage pump |
1. PH rate: 1~14 2. max particle size must not bigger than the 60% diameter of outlet. 3. delivery sewage water with big particle, long fiber, precipitate, wast ore and impurities, excrement, or some sewage works |
| self priming centrifugal oil pump |
1. suitable for petroleum industry, land terminal, oil tank 2. as marine cargo oil pump, bilge pump, fire pump, ballast pump, and for machinery cooling water circluation 3. delivery petroleum products(such as: gasoline, kerosene, diesel oil, and aviation fuel) sea water, clean water. |
∧∧∧ FEATURES ∧∧∧
Feature of Centrifugal Horizontal Mono Block Self Priming Pump
AZX series self priming pump does not need bottom valve in the pipeline. It just needs to have amount of liquid in pump for self priming before starting pump. So it predigests pipeline system and improves working condition.
∧∧∧ MATERIALS ∧∧∧
Materials for Centrifugal Horizontal Mono Block Self Priming Pump:
| Casing and Cover: |
Cast Iron GG25; Ductile Cast Iron GGG40; Cast Steel; SS304 316, 316L; Duplex SS CD4-MCu; Bronze, Brass |
| Pump Impeller: |
Cast Iron GG25; Ductile Cast Iron GGG40; Cast Steel; SS304 316, 316L; Duplex SS CD4-MCu; Bronze, Brass |
| Shaft: |
Carbon Steel AISI1045; Chrome Steel 40Cr; SS AISI420; SS AISI4140; SS316Ti; SS DIN1.4571; Duplex SS UNS S32205 |
| Seal Type: | Mechanical Seal, Gland Packing Seal, Expeller Seal |
| Shaft Sleeve: | Cast Steel; SS304, 316, 316L; Duplex SS CD4-MCu |
| Wearing Ring: | Cast Steel; SS304, 316, 316L; Duplex SS CD4-MCu |
Note: Above sheet just list some for reference, if any other materials need, please contact us!
∧∧∧ PARAMETER ∧∧∧
Performance data of Centrifugal Horizontal Mono Block Self Priming Pump:
| Item | Data |
| Flow rate(capacity) | 3~600m3/h |
| Suction head | 4~7m |
| Discharge head | 12~80m |
| Inlet size | 25~300mm |
| Power | 0.75~132kw |
∧∧∧ CURVE CHART ∧∧∧
Performance curve for Centrifugal Horizontal Mono Block Self Priming Pump:
∧∧∧ SHAFT SEALS ∧∧∧
Shaft seal of Centrifugal Horizontal Mono Block Self Priming Pump:
Packing seal and mechanical seal
∧∧∧ CONSTRUCTION ∧∧∧
Structure of Centrifugal Horizontal Mono Block Self Priming Pump:
∧∧∧ PACKAGING & SHIPPING ∧∧∧

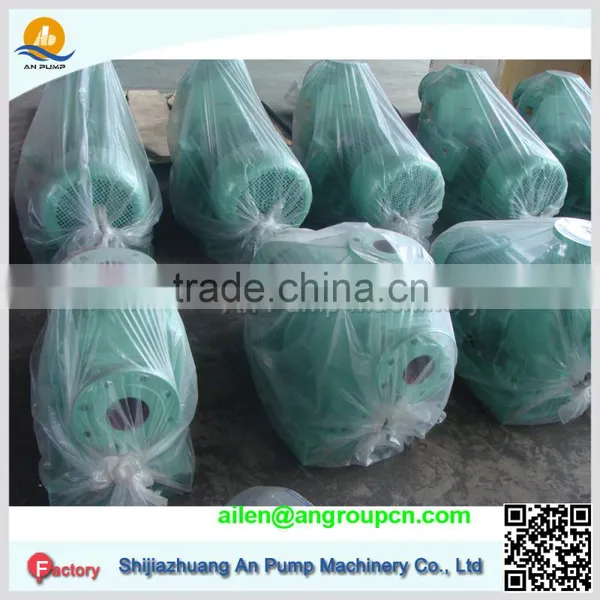

Packaging for Centrifugal Horizontal Mono Block Self Priming Pump:
Shipping for Centrifugal Horizontal Mono Block Self Priming Pump:
∧∧∧ QC ∧∧∧
∧∧∧ OUR SERVICES ∧∧∧
∧∧∧ CUSTOMERS ∧∧∧
Cooperated Client for Centrifugal Horizontal Mono Block Self Priming Pump
∧∧∧ CERTIFICATIONS ∧∧∧
Certification for Centrifugal Horizontal Mono Block Self Priming Pump
