Product Details
| Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | AZX self priming pump |
| Theory: | Other, Centrifgual self priming water pump | Structure: | Other, Single Stage self priming water pump | Usage: | Other, Self priming water pump |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Diesel /electric self priming water pump |
| Pressure: | Other, Standard pressure pure water pump | Application: | Other, Self priming pump |
Product Description

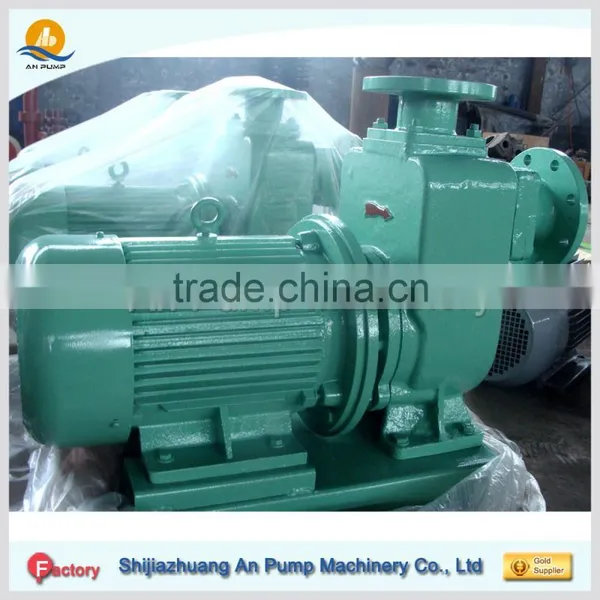

self priming pump china supplier pure water pump
Industrial water supply and drainage. |
1. Outlet Diameter: 2''(50mm) to 12’’(300mm) |
2. Flow Rates: 3m3/h~600m3/h |
3. Head: 6m~75m |
4. Horsepower: 1HP~125HP |
5. N. W: 92KG~998KG |
6. G. W: 114KG~1066KG |
7. Solid Passing: 20.63mm~76.2mm |
8. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze |
9. Diesel Driving: Water cooled or air cooled |
10. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted. |
11. Drive Variation: Cummins, Deutz, Ricardo, Perkins or Chinese Diesel, Electric Motor |
12. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer/trailor |
13. Package: Standard Wooden Case |
14. Certification: ISO,CE,SGS |
pump structure
pump data sheet
| Pump Model | Capacity (m3/h) | Head (m) | Suction Height (m) | peed (rpm) |
| 40AZX | 1-6.4 | 20-40 | 6.5 | 2900 |
| 50 AZX | 1-10 | 25-42 | 6.5 | 2900 |
| 65 AZX | 25-30 | 15-32 | 6 | 2900 |
| 80 AZX | 35-60 | 13-70 | 6 | 2900 |
| 100 AZX | 70-100 | 20-75 | 6 | 2900 |
| 150 AZX | 170 | 55-65 | 5 | 2900 |
| 200 AZX | 280-400 | 32-65 | 5 | 1450 |
| 250 AZX | 400-550 | 32-75 | 5 | 1450 |
| 300 AZX | 400-600 | 32-75 | 5 | 1450 |
pump features
Seal mechanical
Attractive design
Low noise, steady performance
No leakage
High concentricity of components
Easy installation, easy maintenance
1 | coupling | 2 | shaft | 3 | bearing | 4 | Mechanical seal | 5 | Bearing body |
6 | Pump casing | 7 | Outlet base | 8 | Inlet base | 9 | Front seal ring | 10 | impeller |
11 | Rear cover | 12 | Water deflector | 13 | Filling port | 14 | Liquid return port |
|
|
Standard wooden case packing
An Pump Machinery Company to Customers:
1)Quality first. We guaranteed every part of the pump must be inspected closely
2)We can help you select suitable pump model according to your working condition and requirements.
3)We can design the related base or engine for your pumps.
4)Fast delivery time, large quantity of spare parts in stock.
Shijiazhuang An Pump Machinery Co.,Ltd is a manufacturer and trading enterprise, which is mainly engaged in pump designing, manufacturing, selling and service. We develop the international trading business of mining equipment, slurry pumps, and water pumps according the wide customer resource, comprehensive technology and reasonable staffing.
An pump machinery’s main products includes: slurry pump, desulfurization pump, gravel pump, mud pump,
sewage pump, submersible pump, submersible sewage pump, impurity pump, large capacity split casing pump,high head multistage water pump,end suction pump, self priming pump, pump parts and ancillary equipment. which can satisfy different kinds of demands.
