Home > Products > Self Priming Pump > Portable diesel engine self-priming pump
Portable diesel engine self-priming pump
- 800 Piece / Pieces per Month
- Tianjin port
- T/T
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | AN PUMP | Model Number: | AQW AZW QZX |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, self priming sewage pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, diesel engine self priming pump |
Pressure: | High Pressure | Application: | Other, clean water self priming pump |
Product Description
Portable diesel engine self-priming pump
What is diesel engine self-priming pump ?
QZX series non-clogging self-priming pump belongs to self priming centrifugal pumps.
The key advantage is this kind of pump has stronger self-priming capacity.
It does not need install bottom valve on the pipe line, simplified the pipeline system, and improved the working condition, just need to retain quantitative lead liquid before initial work. Sewage capacity: special non-clogging impeller design make sure high efficiency and no clog. Energy saving: adopt excellent hydraulic model, efficiency 3-5% higher than common self-priming pump. Self-priming capacity: self-priming height 1-3meter higher than common one and self-priming time shorter.
Technical parameter: flow: 5-800m3/h; head:12-60m; power: 2.2-55kw; speed:1450-2900r/min; diameter:φ25-φ300mm; medium temperature:≤100℃; self-priming height: 4.5-6.0m.
What is the diesel engine self-priming pump features?
(1). compact structure
(2). convenient operation
(3). stable operation
(4). easy maintenance
(5). high efficiency
(6). long service life
(7). strong self-priming capacity
What is the diesel engine self-priming pump advantage?
Wear resistant
Specialized Test Equipment
Anti-rust treatment casting
What is the diesel engine self-priming pump application?
Water
Waste Water
Pulp and Paper
Contractor de-watering
Self Priming Trash Pump
Manure
Municipal
Water Transfer / Fracking
Chemical liquid delivery
Aquiculture
Light Industry
Coal Industry
Mining Industry
Farm & Garden
Marine & Bilge
Others
- Normally we delivery self priming pumps within 5-15 days
- transport by sea, by air way, by railway
- Packaging in standard wooden case.

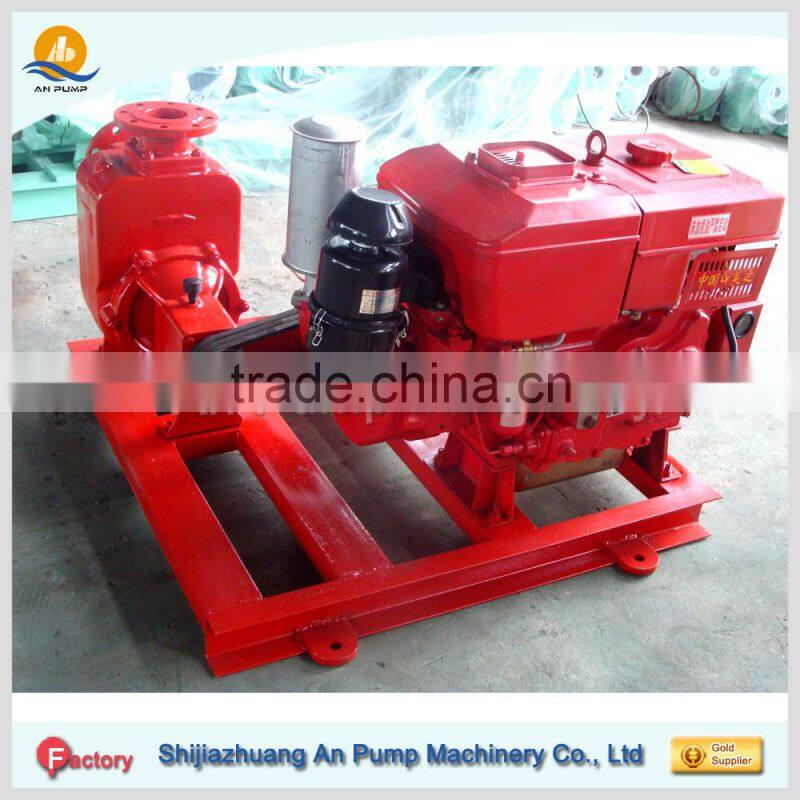

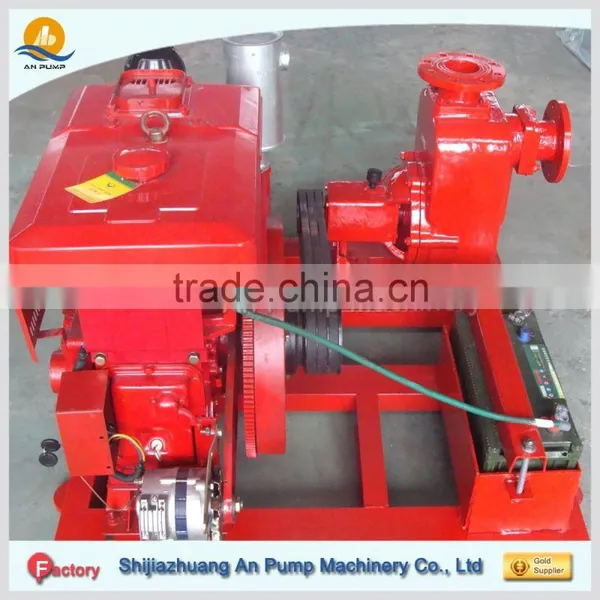

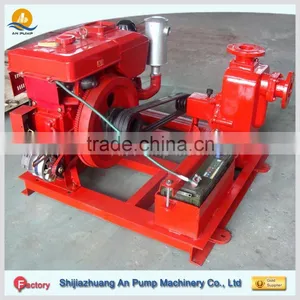

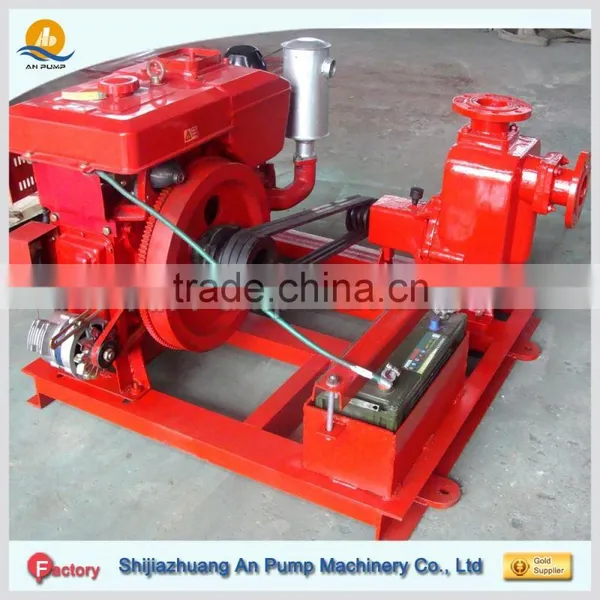

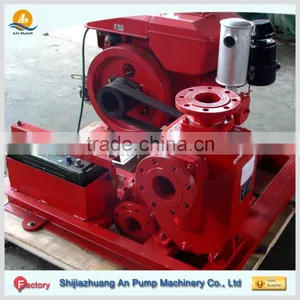

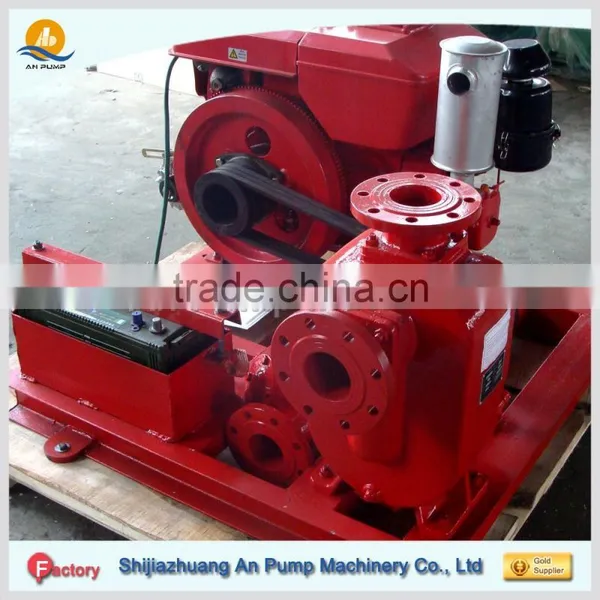

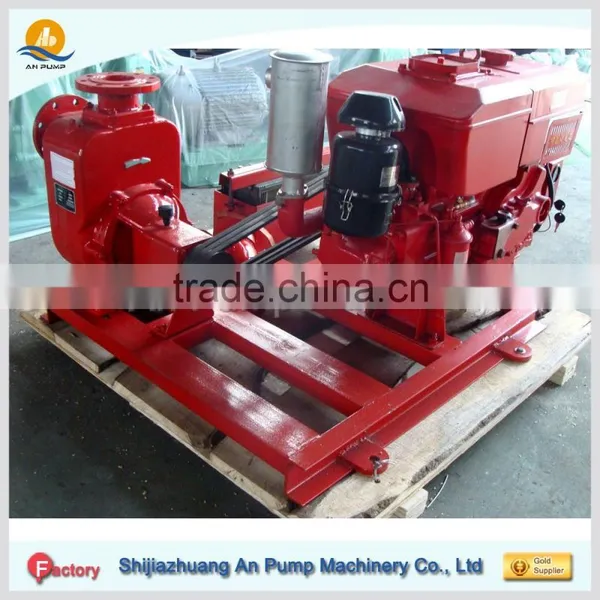

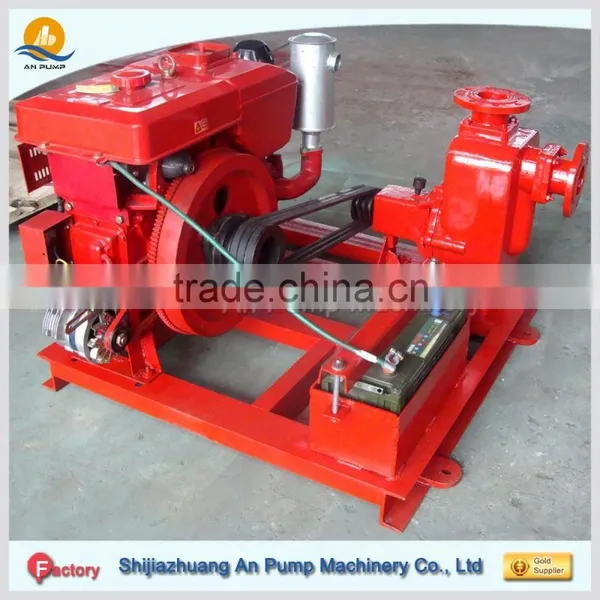

Diesel engine self-priming pump photos
Self-priming pump Structure
Self-priming pump Performance
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving pumps type design, use and maintenance program.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Send your inquiry details in the below, click "send" now! Send is to earn!
