OVERVIEW >>>>
Overview of Centrifugal Horizontal Self-Priming Electric Water Pump
AZX series Mono block sanitary self priming centrifugal pump iss a kind of self priming centrifugal pump, with advantage of simple structure, convenient operation and maintenance, stable working, high efficiency, long life, good self priming performance etc.
APPLICATION >>>>
Application of Centrifugal Horizontal Self-Priming Electric Water Pump
| Pump model | Application |
| self priming water pump |
1. environment protection, construction, fire protection, chemical industry, pharmacy, printing & dyestuff, brewage, electric power, electroplate, papermaking, washing for indsutry and mine, cool for device. 2. spray after setting up the rotating sprinkler on the farm or garden 3. suitable for clean water, sea water and cemical medium with acid and alkali and mushy slurry. 4. transport slurry to compressor anf filter with compressor and filter. |
| non blocking self priming sewage pump |
1. PH rate: 1~14 2. max particle size must not bigger than the 60% diameter of outlet. 3. delivery sewage water with big particle, long fiber, precipitate, wast ore and impurities, excrement, or some sewage works |
| self priming centrifugal oil pump |
1. suitable for petroleum industry, land terminal, oil tank 2. as marine cargo oil pump, bilge pump, fire pump, ballast pump, and for machinery cooling water circluation 3. delivery petroleum products(such as: gasoline, kerosene, diesel oil, and aviation fuel) sea water, clean water. |
FEATURES >>>>
Feature of Centrifugal Horizontal Self-Priming Electric Water Pump
AZX series self priming pump does not need bottom valve in the pipeline. It just needs to have amount of liquid in pump for self priming before starting pump.
So it predigests pipeline system and improves working condition.
MATERIALS >>>>
Material of Centrifugal Horizontal Self-Priming Electric Water Pump
| Casing and Cover: |
Cast Iron GG25; Ductile Cast Iron GGG40; Cast Steel; SS304 316, 316L; Duplex SS CD4-MCu; Bronze, Brass |
| Pump Impeller: |
Cast Iron GG25; Ductile Cast Iron GGG40; Cast Steel; SS304 316, 316L; Duplex SS CD4-MCu; Bronze, Brass |
| Shaft: |
Carbon Steel AISI1045; Chrome Steel 40Cr; SS AISI420; SS AISI4140; SS316Ti; SS DIN1.4571; Duplex SS UNS S32205 |
| Seal Type: | Mechanical Seal, Gland Packing Seal, Expeller Seal |
| Shaft Sleeve: | Cast Steel; SS304, 316, 316L; Duplex SS CD4-MCu |
| Wearing Ring: | Cast Steel; SS304, 316, 316L; Duplex SS CD4-MCu |
Note: Above sheet just list some for reference, if any other materials need, please contact us!
PERFORMANCE >>>>
Performance data of Centrifugal Horizontal Self-Priming Electric Water Pump
| Item | Data |
| Flow rate(capacity) | 3~600m3/h |
| Suction head | 4~7m |
| Discharge head | 12~80m |
| Inlet size | 25~300mm |
| Power | 0.75~132kw |
OVERVIEW >>>>
Performance curve chart for Centrifugal Horizontal Self-Priming Electric Water Pump
SHAFT SEALS >>>>
Shaft seal of Centrifugal Horizontal Self-Priming Electric Water Pump Price
| Packing seal | Mechanical seal |
|
|
CONSTRUCTION >>>>

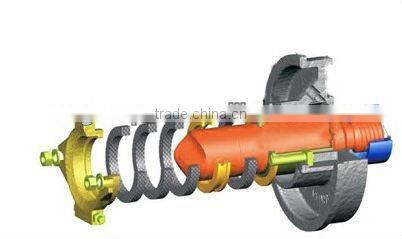

Structure of Centrifugal Horizontal Self-Priming Electric Water Pump Price
OUR SERVICE >>>>
OUR HISTORY >>>>
OVERVIEW >>>>
Contact AN PUMP for Centrifugal Horizontal Self-Priming Electric Water Pump Price
*~* *~**~* *~**~**~**~**~* *~**~**~**~**~**~**~**~**~**~**~**~* *~**~**~**~**~* *~*
*~* *~**~* *~**~**~**~**~* *~**~**~**~**~**~**~**~**~**~**~**~* *~**~**~**~**~* *~*
