Diesel Engine Portable Self Priming Water Pump

Name: Diesel Engine Portable Self Priming Water Pump
Brand: An Pump
Price: USD $460 - 6,000 / Set

FOB Price

USD $460 - $6,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Tianjin Port
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hebei, China	Brand Name:	An Pump	Model Number:	AZX self priming water pump
Theory:	Centrifugal Pump	Structure:	Single-stage Pump	Usage:	Other, water ,sewage,portable water pump
Power:	Electric	Standard or Nonstandard:	Standard	Fuel:	Other, electric water pump,diesel water pump
Pressure:	Other, high pressure Self Priming Water Pump	Application:	Other, water ,sewage,industrial water pump,self prime pump,

Product Description

Diesel Engine Portable Self Priming Water Pump

Product Description

Diesel Engine Portable Self Priming Water Pump feature

AZX series self-priming pump belongs to self priming centrifugal pumps. The key advantage is that

this kind of pump have stronger self-priming capacity. It do not need bottom valve on the pipe line,

but the quantitative lead liquid must be stayed before work.The pumps simplified the system of the pipes,

and they improved the working condition

1) Stable performance, reliable operation

2) Rapid self-priming, high suction head

3) Back-pull-out construction: convenient for maintenance and troubleshooting.

Daily maintenance can be performed rapidly by common head tools, saving time and labor

4) Semi-open impeller structure and non-clogging design. Strong passing capacity,

diameter of maximum passing solid for P-12 is 76.2mm

5) Convenient usage: the pump can be mounted high and dry at floor level, with only

the suction line down in the liquid

Diesel Engine Portable Self Priming Water Pump specification

1. Outlet Diameter: 2''(50mm) to 12’’(300mm)
2. Flow Rates: 8m3/h~600m3/h

3. Head: 6m~63m
4. Horsepower: 1HP~125HP
5. Solid Passing: 20.63mm~76.2mm
6. Material: Cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
7. Diesel Driving: Water cooled or air cooled
8. Method of connection: Self priming pumps are available as basic units or may be flex-coupled, V-belt driven or engine mounted.
9. Drive Variation: Diesel engine , Electric Motor
10. Skid Mounted on Trailer: 2 wheels or 4 wheels trailer
11. Package: Exporting plywood case
12. Certification: ISO9001: 2000,CE

Diesel Engine Portable Self Priming Water Pump work condition

Diesel Engine Portable Self Priming Water Pump parameter

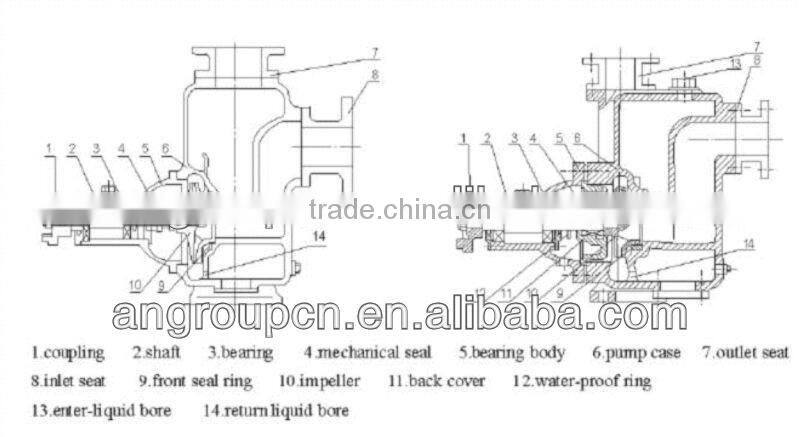

Diesel Engine Portable Self Priming Water Pump Structure

Diesel engine Self-priming pumps are also available.

Pump Application:

Diesel Engine Portable Self Priming Water Pump application

Pump model	Application
self priming water pump	1. environment protection, construction, fire protection, chemical industry, pharmacy, printing & dyestuff, brewage, electric power, electroplate, papermaking, washing for indsutry and mine, cool for device. 2. spray after setting up the rotating sprinkler on the farm or garden 3. suitable for clean water, sea water and cemical medium with acid and alkali and mushy slurry. 4. transport slurry to compressor anf filter with compressor and filter.
non blocking self priming sewage pump	1. PH rate: 1~14 2. max particle size must not bigger than the 60% diameter of outlet. 3. delivery sewage water with big particle, long fiber, precipitate, wast ore and impurities, excrement, or some sewage works
self priming centrifugal oil pump	1. suitable for petroleum industry, land terminal, oil tank 2. as marine cargo oil pump, bilge pump, fire pump, ballast pump, and for machinery cooling water circluation 3. delivery petroleum products(such as: gasoline, kerosene, diesel oil, and aviation fuel) sea water, clean water.
