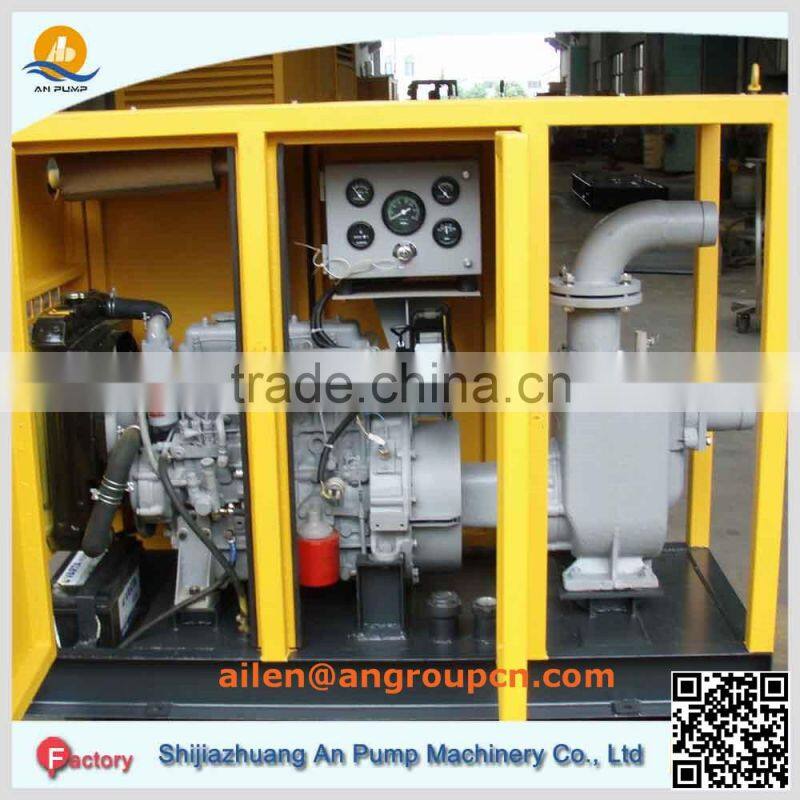

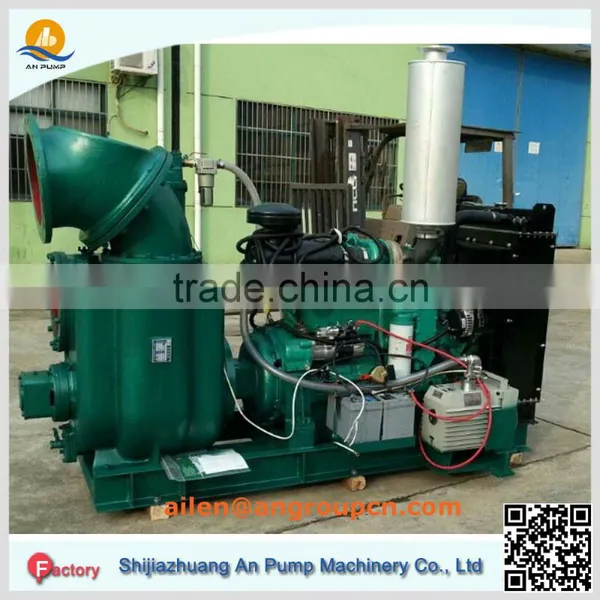

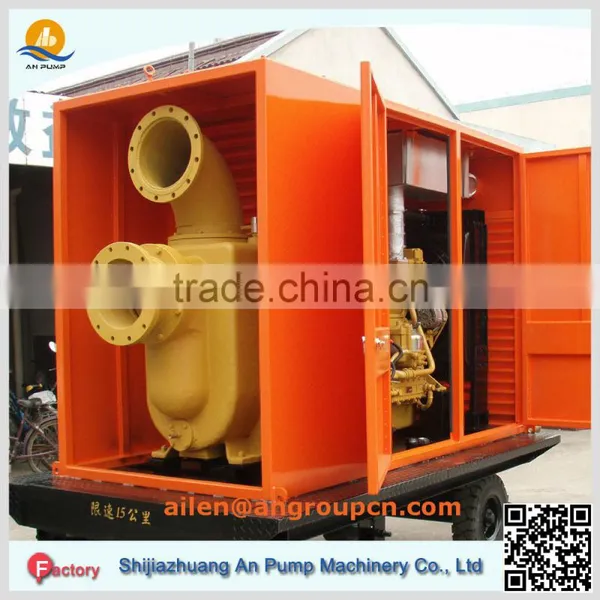

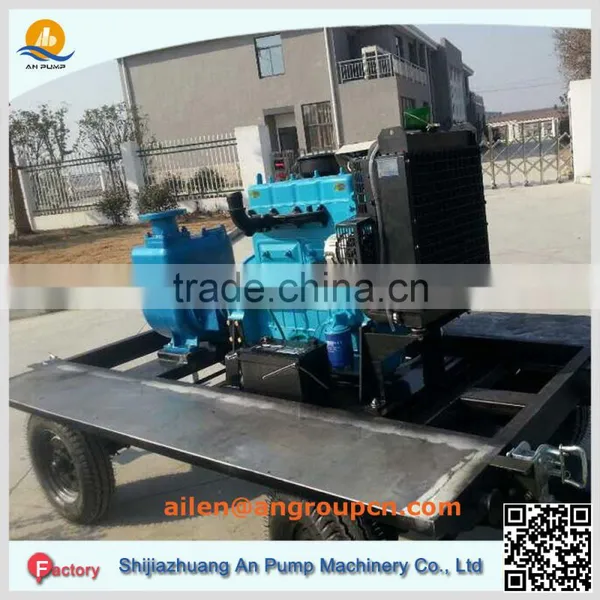

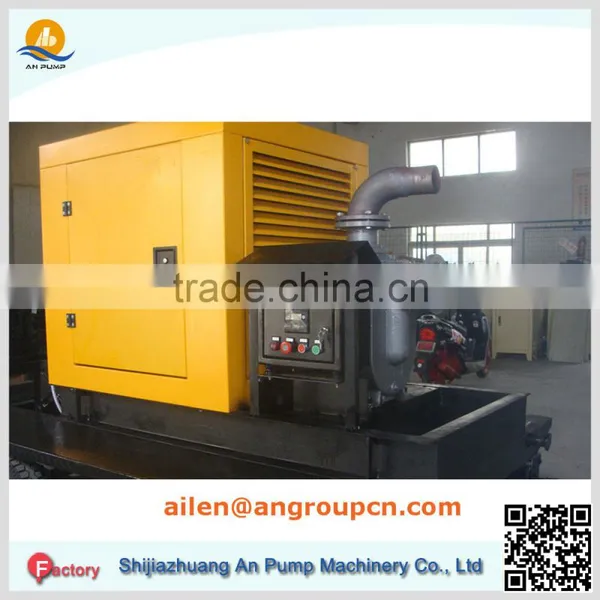

Skid Mounted Diesel Engine Self Priming Water Pump
Overview of Skid Mounted Diesel Engine Self Priming Water Pump
AZX series self priming pump is a kind of self priming centrifugal pump, with advantage of simple structure, convenient operation and maintenance, stable working, high efficiency, long life, good self priming performance etc.
Application of self priming pump:
| Pump model | Application |
| 100QZX centrifugal self priming pump |
1. environment protection, construction, fire protection, chemical industry, pharmacy, printing & dyestuff, brewage, electric power, electroplate, papermaking, washing for indsutry and mine, cool for device. 2. spray after setting up the rotating sprinkler on the farm or garden 3. suitable for clean water, sea water and cemical medium with acid and alkali and mushy slurry. 4. transport slurry to compressor anf filter with compressor and filter. |
| non blocking self priming sewage pump |
1. PH rate: 1~14 2. max particle size must not bigger than the 60% diameter of outlet. 3. delivery sewage water with big particle, long fiber, precipitate, wast ore and impurities, excrement, or some sewage works |
| self priming centrifugal oil pump |
1. suitable for petroleum industry, land terminal, oil tank 2. as marine cargo oil pump, bilge pump, fire pump, ballast pump, and for machinery cooling water circluation 3. delivery petroleum products(such as: gasoline, kerosene, diesel oil, and aviation fuel) sea water, clean water. |
Feature of Skid Mounted Diesel Engine Self Priming Water Pump
AZX series self priming pump does not need bottom valve in the pipeline. It just needs to have amount of liquid in pump for self priming before starting pump. So it predigests pipeline system and improves working condition.
Materials about Skid Mounted Diesel Engine Self Priming Water Pump
cast iron / stainless steel
Performance data of Skid Mounted Diesel Engine Self Priming Water Pump
| Item | Data |
| Flow rate(capacity) | 70~100m3/h |
| Suction head | 6m |
| Discharge head | 20~75m |
| Inlet size | 100mm |
| Power | 7.8~24.2kw |
Performance curve of Skid Mounted Diesel Engine Self Priming Water Pump
Shaft seal of Skid Mounted Diesel Engine Self Priming Water Pump
Packing seal and mechanical seal
Structure of Skid Mounted Diesel Engine Self Priming Water Pump
Contact AN PUMP about Skid Mounted Diesel Engine Self Priming Water Pump
