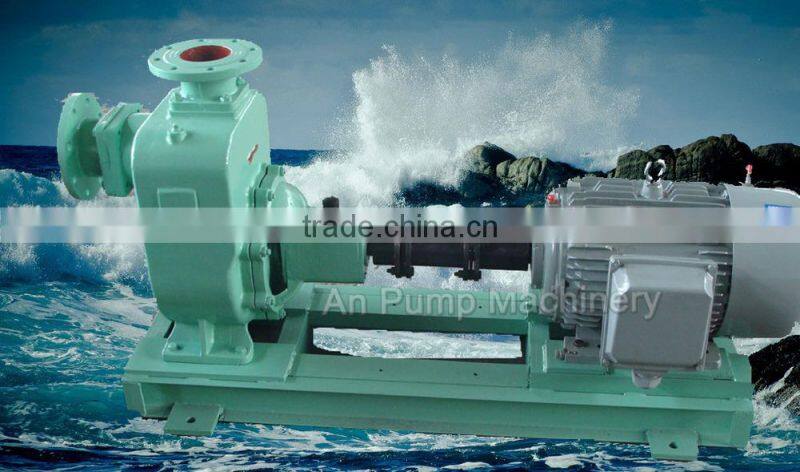

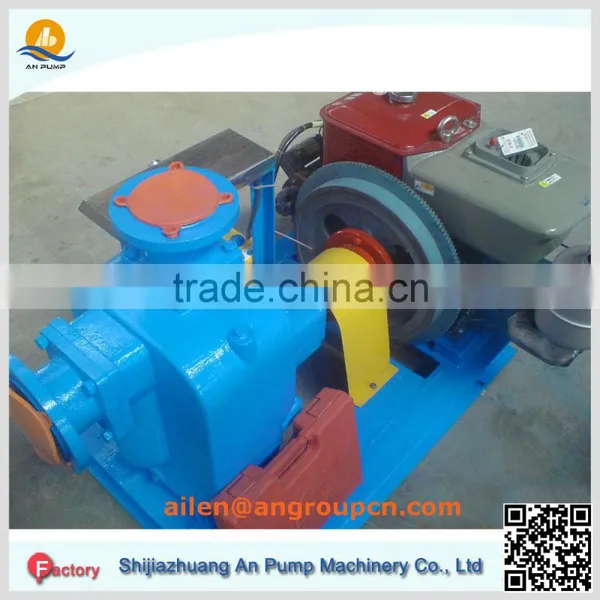

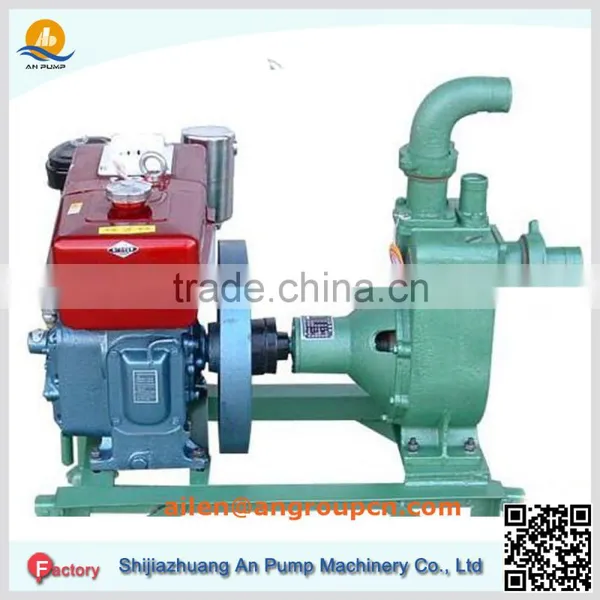

Centrifugal Electric Self Priming Sewage Water Pump
“““ OVERVIEW ”””
Overview of Centrifugal Electric Self Priming Sewage Water Pump
AZX series stainless steel self 6 inch farm irrigation movable diesel water pump is a kind of self priming centrifuigal pump. With advantage of simple structure,convenient operation and maintenance, stable working, high efficiency, long life, good self priming performance etc.
“““ APPLICATION ”””
Application of Centrifugal Electric Self Priming Sewage Water Pump
| Model | Application |
Stainless steel self priming pump |
1. environment protection, construction, fire protection, chemical industry, pharmacy, printing & dyestuff, brewage, electric power, electroplate, papermaking, washing for indsutry and mine, cool for device. 2. spray after setting up the rotating sprinkler on the farm or garden 3. suitable for clean water, sea water and cemical medium with acid and alkali and mushy slurry. 4. transport slurry to compressor anf filter with compressor and filter. |
non blocking self priming sewage pump |
1. PH rate: 1~14 2. max particle size must not bigger than the 60% diameter of outlet. 3. delivery sewage water with big particle, long fiber, precipitate, wast ore and impurities, excrement, or some sewage works |
self priming centrifugal oil pump |
1. suitable for petroleum industry, land terminal, oil tank 2. as marine cargo oil pump, bilge pump, fire pump, ballast pump, and for machinery cooling water circluation 3. delivery petroleum products(such as: gasoline, kerosene, diesel oil, and aviation fuel) sea water, clean water. |
“““ FEATURE ”””
Feature of Centrifugal Electric Self Priming Sewage Water Pump
AZX series self priming pump does not need bottom valve in the pipeline. It just needs to have amount of liquid in pump for self priming before starting pump. So it predigests pipeline system and improves working condition.
“““ MATERIAL ”””
Material OF Centrifugal Electric Self Priming Sewage Water Pump
cast iron / stainless steel
“““ PARAMETER ”””
Performance data of Centrifugal Electric Self Priming Sewage Water Pump
| Item | Data |
| Flow rate(capacity) | 3~600m3/h |
| Suction head | 4~7m |
| Discharge head | 12~80m |
| Inlet size | 25~300mm |
| Power | 0.75~132kw |
“““ CURVE CHART ”””
Performance curve of Centrifugal Electric Self Priming Sewage Water Pump
“““ SHAFT SEAL ”””
Shaft seal of Centrifugal Electric Self Priming Sewage Water Pump
Packing seal and mechanical seal
“““ CONSTRUCTION ”””

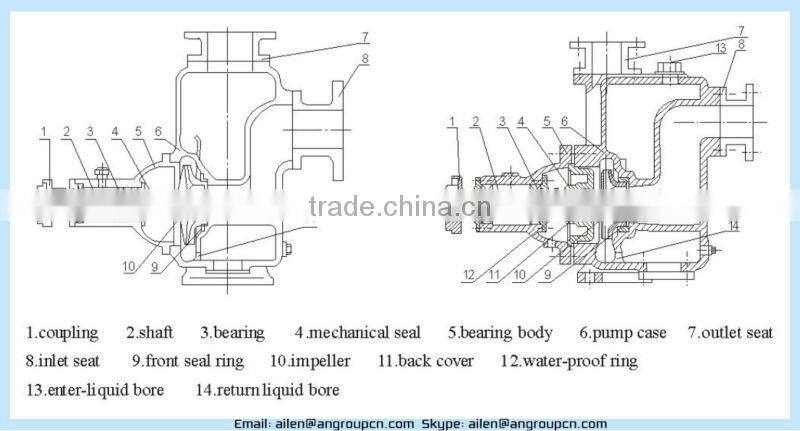

Structure of Centrifugal Electric Self Priming Sewage Water Pump
“““ INSTALLATION ”””
Installation of Centrifugal Electric Self Priming Sewage Water Pump
“““ PACKAGING & SHIPPING ”””
Packaging and shipping for Centrifugal Electric Self Priming Sewage Water Pump
“““ OUR SERVICE ”””
“““ QUALITY CONTROL ”””

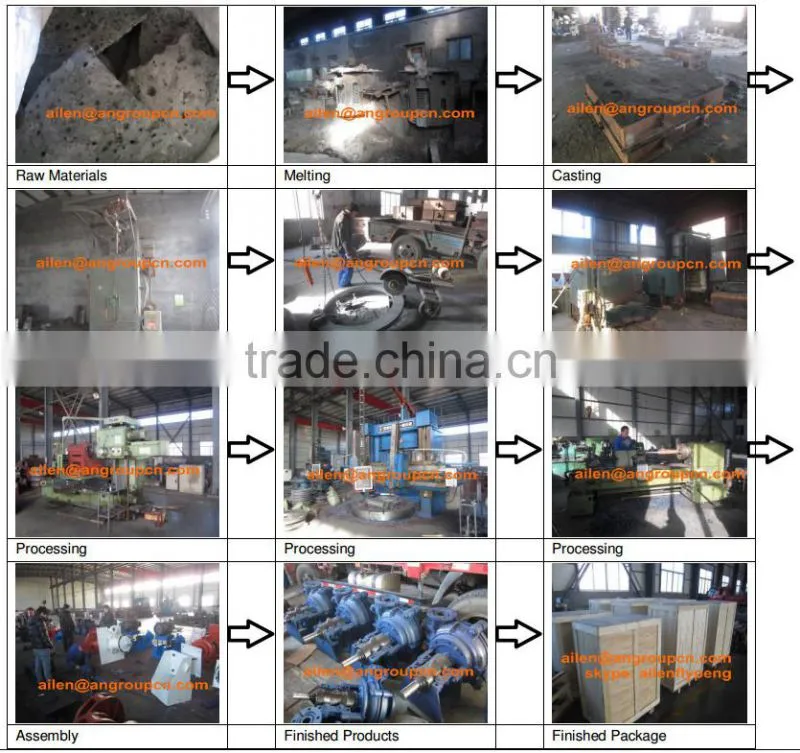

“““ MANUFACTURE PROCESS ”””

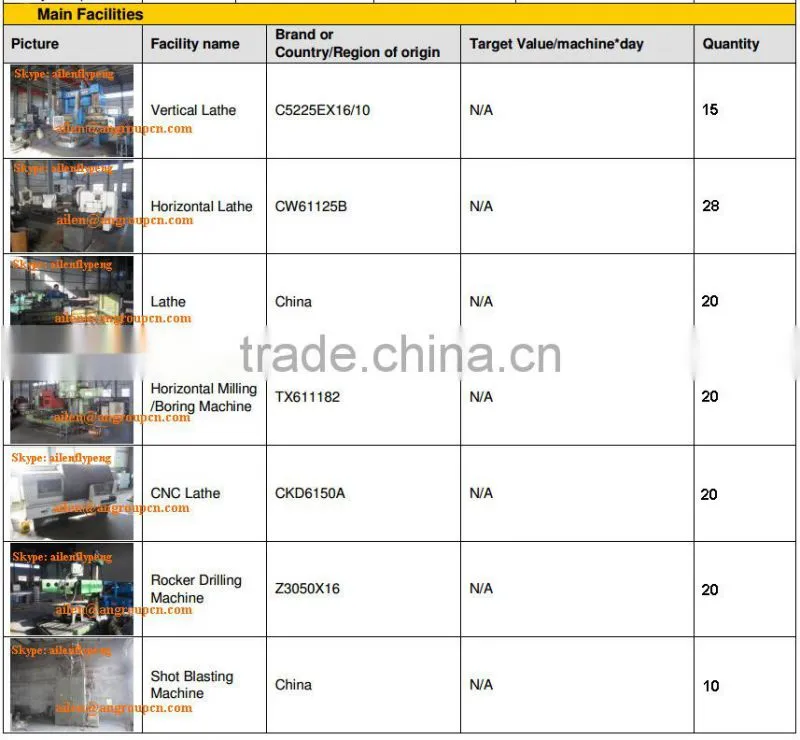

“““ MAIN FACILITIES ”””
“““ OUR SERVICES ”””
Our services about Centrifugal Electric Self Priming Sewage Water Pump
Offer pump solution, design, manufacturing, and after-sales service.
Service |
Specification |
1. Selection |
Send us working data (medium, head, flow rate...) |
2. OEM/ODM |
Please show us the pump design drawing |
3. Process design |
Offer process design as working condition. |
