Sea heavy duty water submersible pump
Sea heavy duty water submersible pump introduction
1.vertical submersible sewage pump for waste water
2.ASW series pump is a kind of submersible sewage motor pump,and the pump and the motor are coaxial.
3.ASW series submersible sewage motor pump mainly used in municipal engineering, industry, hospital,hotel,etc.
4. It is used for pumping sludge , sewage and city life sewage with solids and long fiber (including erosive matters )
5.Our submersible sewage motor pumps have following advantages: hi-efficiency, circumvolution proof,non-block,auto-coupling, hi-reliability and auto-control,etc.
6.The unique cable airproof is adopted, avoiding leakage of cable.
7.Rated Voltage: 380V(660V), Frequency: 50Hz, 3-phase AC. Temperature of medium under 40°C. PH of medium: 4~10. Volume ratio of solid in medium below 2%. .Density of medium should be lower than 1.2*10³kg/m³.
8..Heat protector in stator assures operating life of the motor.
9.Adopt perfect mechanical seal and the sealing material adopt tungsten carbide, silicon carbide and hard metal alloy, so it can prevent the water from entering in the motor, and keep the operating reliable and safety.
The main pump products including slurry pump, desulfurization pump, gravel pump, Submersibl sewage pump, impurity pump, split pump with large capacity, multistage pump with high lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers
Sea heavy duty water submersible pump performance:
Vertical Submersibel Pump Performance | |||||
Type |
Flow (m3/h) |
Head (m) |
Speed (r/min) |
Motor Power (KW) |
Efficiency (%) |
40ASW |
8.4-14.4 |
14-16 |
2900 |
1.5 |
42-70 |
50ASW |
7-50.4 |
8-36 |
1450-2900 |
0.75-7.5 |
46-62 |
65ASW |
17.5-44.4 |
11-30.2 |
2900 |
2.2-4 |
39-72 |
80ASW |
20.3-72 |
5.7-27.5 |
2900 |
2.2-7.5 |
51-75 |
100ASW |
35-120 |
5.6-38.5 |
1450 |
4-15 |
46-80 |
150ASW |
49-300 |
5.5-44.5 |
1450 |
5.5-37 |
58-82 |
200ASW |
110-480 |
5.7-44.5 |
1450 |
11-75 |
63-83 |
250ASW |
420-840 |
7-35 |
980-1450 |
30-90 |
63-84.5 |
300ASW |
280-1140 |
6.7-27 |
980-1450 |
45-110 |
68-84.5 |
350ASW |
700-1800 |
8-40 |
980 |
45-160 |
68-85 |
400ASW |
1050-2640 |
12-33 |
980 |
132-160 |
71-85 |
500ASW |
1400-3600 |
9-22.5 |
980 |
110-200 |
72-85 |

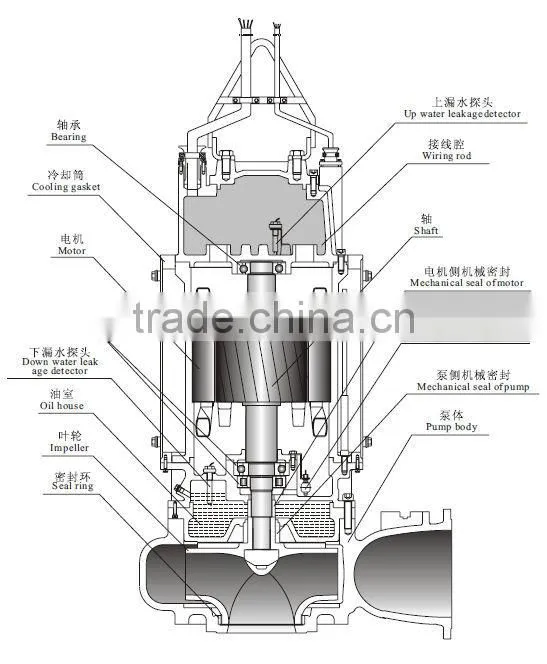

Sea heavy duty water submersible pump constructure

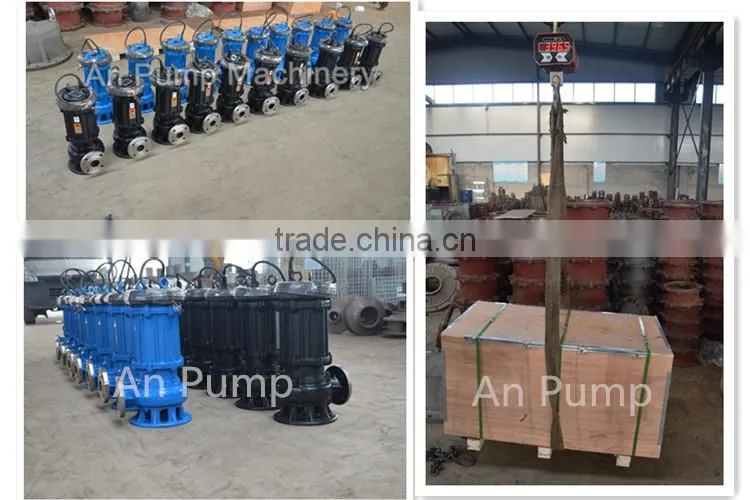

Sea heavy duty water submersible pump Show:
Sea heavy duty water submersible pump Packing
1. Offer Large capacity sea water pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China,
produce with our own factory.
2. Q: what's your factory workshops ?
A: My factoryproduce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your pump price?
A: We are sure our price is factory price, and insist high quality for our long term cooperation.
4. Q: What is your pump material ?
A: We produce high Cr Mo Ni alloy, rubber liner, cast iron, stainless steel, etc.
Produce as your requirements is ok.
5. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
6. Q: Is it easy for customers to change the parts by myself ?
A: yes, the structure is simple,customers can change it very easily. We will also supply you maintenance tools for free.
7. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.
8. Q: Can you install the motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
9: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiil calculate & select most suitable pump model for you, offer pump solution for you.
10. Q:How long can you reply us if we send an inquiry ?
A: Generall with in 2 hours, we will send you official quotation sheet, with price, technology data,
performance curve, dimension etc.
11. Q: What are your advantages,why should I choose you?
A: Higher Quality, our parts have 30% longer life than the originals
Short Delivery Time, for normal parts,we have stock in our warehouse
Competitive Price, we can help you cut down the cost by 30% or more
Best Services, we have technical department, quality control department and a professional sales team,
we will offer professional service for you any time.
