Double suction volute casing sea water pump
QS, QSH series single stage double suction, horizontal split casing centrifugal pumps one of the main characters is large flow rate.
It can reach 110—10000m3/h. The pump structure simple, easy for operation and maintenance. It is suitable for pure water or liquids similar to water in physical and chemical property. We can use stainless steel material for the corrosion liquids. This model is widely used in agriculture irrigation, fire fighting, steel, power industry. The pump head range 6-145m, it can be used in series when high head. Small amount of particles <10mm can pass through.
Double suction volute casing sea water pump Specification
- Max. Capacity: 63,400 U.S. GPM ( 14400 m3/h )
- Max. Head: 460 feet ( 140 m )
- Temperatures: to 250°F (120°C)
- Pressure: up to 400spi ( 28 bar / 2.75MPa )
- Medium Ph: 4-10
Double suction volute casing sea water pump Models
- QS 100-400 Medium Duty 500-7,130 GPM
- QS 500-700 Heavy Duty 7,135-21,550
- QS 800-1200 Severe Duty 21,556-63,400
Double suction volute casing sea water pump Applications
- Municipal water distribution
- Commercial marine operations
- Power generation
- High volume industrial
- Mining chemical extraction
- Industries
- Water works
- Irrigation
- Horizontal split case pump applicable Fire - Fighting
- Water Circulation
- Air Conditioning Plants
- Processing Plants
- Horizontal split case pump suitable for Paper, Sugar and Textile Mills etc
- Refinery
- Storm water
- Sprinkler irrigation
- Waste Water Treatment Plants
- Horizontal split case pump for Fertilizer Plants
Double suction volute casing sea water pump Features
- Horizontal or vertical mount configurations
- Packing or mechanical seal
- Casings available in a variety of cast metals
- Hydraulic balance design for steady characteristic curves
- Easy low cost maintenance and parts program
- Compact design
- High efficiency impeller design
- Clockwise or counter-clockwise rotation
- Grease or oil lubricated long life roller bearings
- Protective shaft sleeve
Double suction volute casing sea water pump Materials of Construction
| Parts | Standard | Optional |
| Casing | Cast Iron | Cast Iron, Ductile Iron, Cast Steel and stainless steel |
| Impeller | Bronze | Cast Iron, Bronze, Stainless Steel, Silicon Brass |
| Wear Ring | Bronze | Cast Iron, Stainless Steel |
| Shaft | Carbon Steel | Stainless Steel and Carbon Steel |
| Insert | Cast Iron | --- |
| Shaft Sleeve | Bronze | Stainless Steel and Carbon Steel |
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available

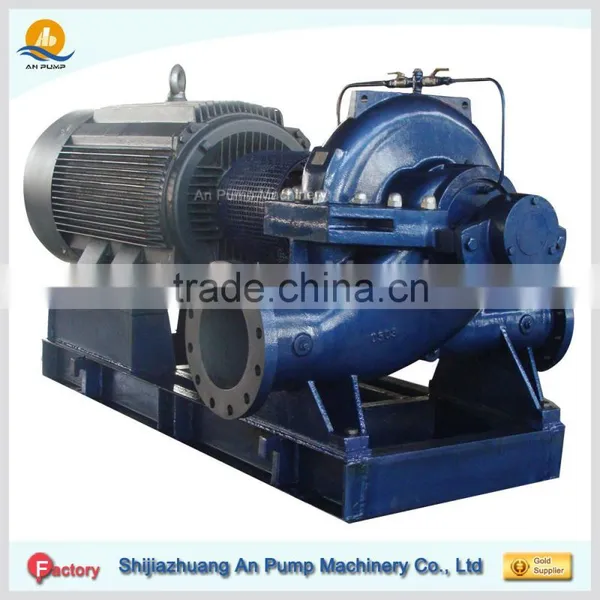

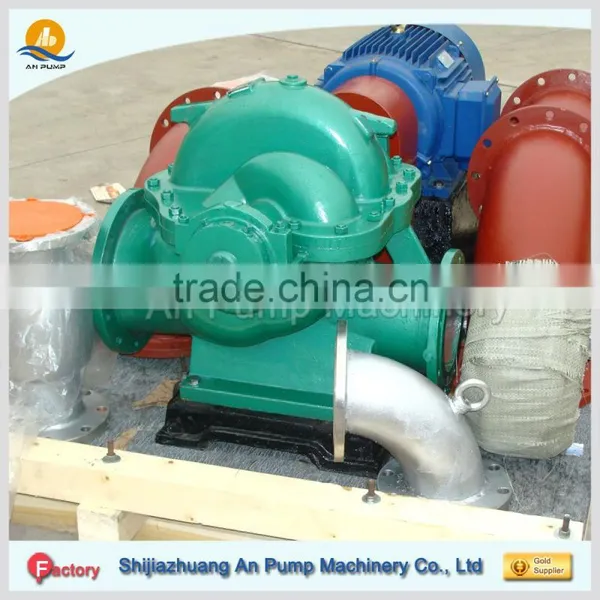

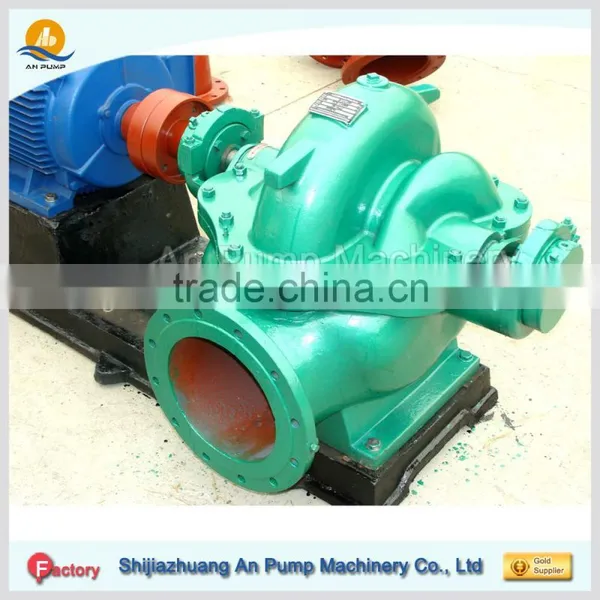

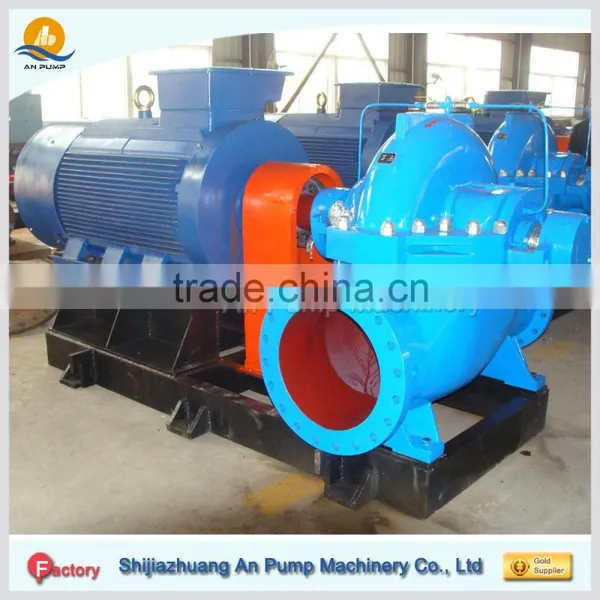

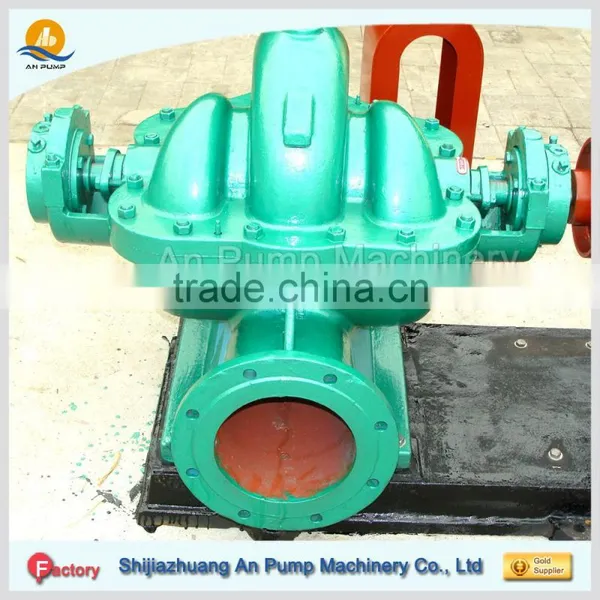

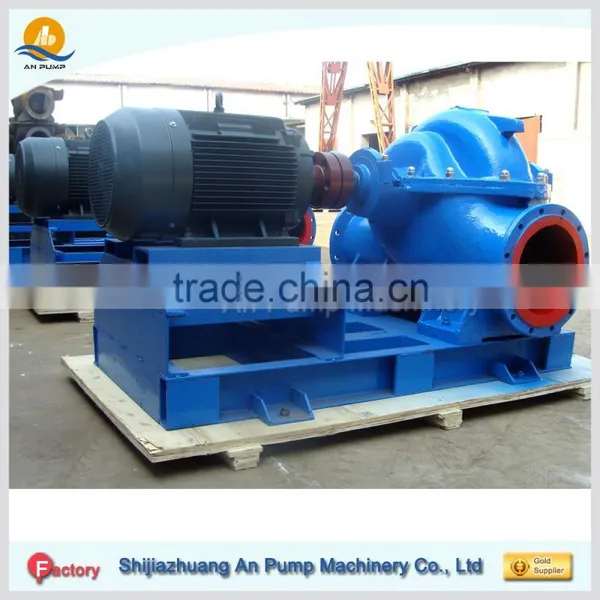

Double suction volute casing sea water pump Shows
Structure of Double suction volute casing sea water pump
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
