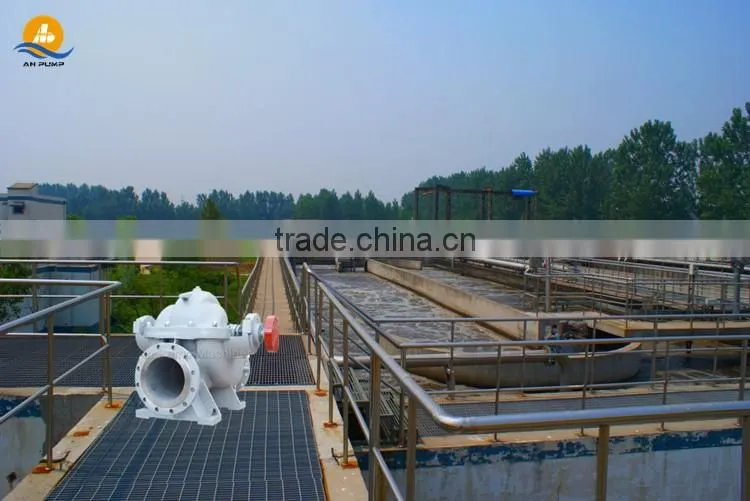

Stainless steel Split Casing sea water Pump
Stainless steel Split Casing sea water Pump Introduction:
Split Casing Pump/Horizontal Split Casing Pump is produced by our company based on the advanced technology from Germany in accordance with the market demand. By using the original and modified impeller and cutting, the pump boasts a full and wide range of spectrum and high service efficiency. The water pump can provide the working points of any flow and lift head required by the user within the spectrum performance range. QS pump adopts a hydraulic model with the self-balancing axial force and radial force, which is the best both at home and abroad currently. It boasts stable performance ,high efficiency, compact structure,small vibration,strong resistance to pressure of pump body and being easy for installation and maintenance.
Stainless steel Split Casing sea water Pump Main Application:
QS series of product is widely used for water plant, irrigation ,drainage pumping station, power station, water circulation of air-conditioning, industrial water supply system, fire system and shipping industry as well as for the general purpose in the oil refining industry.
Stainless steel Split Casing sea water Pump Hydraulic performance:
It adopts the internantional advanced computer aided software and the modern design methods(namely optimum design and reliable design approach) for the hydraulic and structural design of the pump so that QS double-suction pump boasts efficient and noticeable resistance to cavitation. Compared with home-made like products, this series of product has a 2-4% higher efficiency and noticeably stronger cavitation resistance, which will save a lot of capital for the user .
Stainless steel Split Casing sea water Pump Structural Features:
1.Compact structure ,space effective and much shorter axial dimensions.
2.Small vibration and low noise, achieved mainly by means of the follow:
A,The pump casing adopts the double-volute structure;
B,The rotor part has short axial dimensions and a good rigidity.
C. The pump shaft adopts the imported high-precision bearing for the support.
Stainless steel Split Casing sea water Pump Working Conditions:
The maximum working pressure of QS volute double-suction pump system is 2.5Mpa, namely pump inlet pressure +pump lift head≤2.5Mpa,and the test pressure of pump static pressure is 3.75Mpa. According to the maximum pressure that the pump body can bear, the materials for body and bonnet adopt the grey cast iron(1.6Mpa),spheroidal graphite cast iron(2.0Mpa)and cast steel (2.5Mpa). Please note the pump's bearing pressure or materials in the order. This series of pump can transport the clear water or other liquids with similar physical and chemical properties as clear water with temperture T≤105°C.
Stainless steel Split Casing sea water Pump Type Designation:
150QS-78A
QS-- Volute type split casing double suction pump
150 – Inlet diameter of pump (mm)
78 – head 78m
A- rimary cutting of impeller
What is the Stainless steel Split Casing sea water Pump Performance ?
Type |
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
Power (Nm) |
Efficiency η(%) |
QS150 |
112-220 |
35-84 |
2900 |
30-55 |
68-80 |
QS200 |
160-351 |
31-100 |
2900 |
37-110 |
61-85 |
QS250 |
324-612 |
8.6-65.1 |
1450 |
22-132 |
72-86 |
QS300 |
504-1663 |
8.7-140 |
1450-1470 |
22-680 |
70-87 |
QS350 |
745-1570 |
10-125 |
1450-1470 |
55-630 |
70-88 |
QS400 |
900-1620 |
32-85.5 |
980-1480 |
440-500 |
71.5-84 |
QS500 |
1150-3800 |
10.6-108 |
740-970 |
110-800 |
70-89 |
QS600 |
2300-4000 |
13-80 |
730-970 |
145-730 |
70-91 |
QS700 |
2111-4896 |
39.5-99.5 |
742-980 |
397-1252 |
52-92 |
QS800 |
3960-688 |
23-84 |
600-750 |
450-1600 |
77-92 |
QS1000 |
6600-9900 |
32-52 |
600 |
1250 |
79-88 |
QS1200 |
5832-14400 |
6-95.7 |
500-745 |
710-3450 |
80-90 |
Detail performance and technical information please send email below for more!

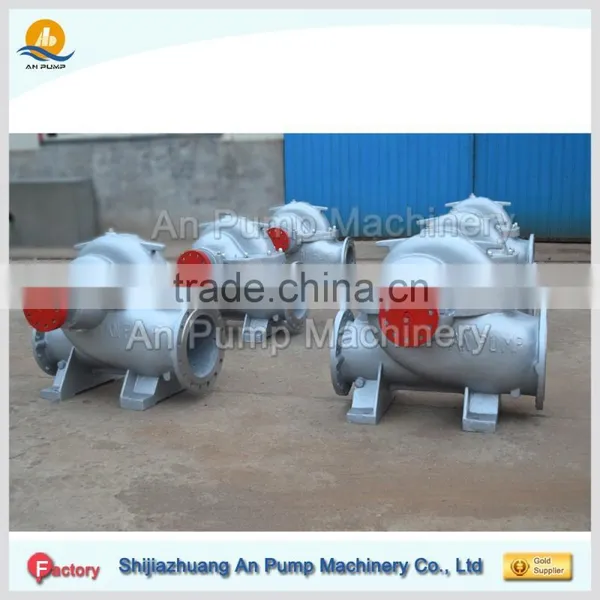

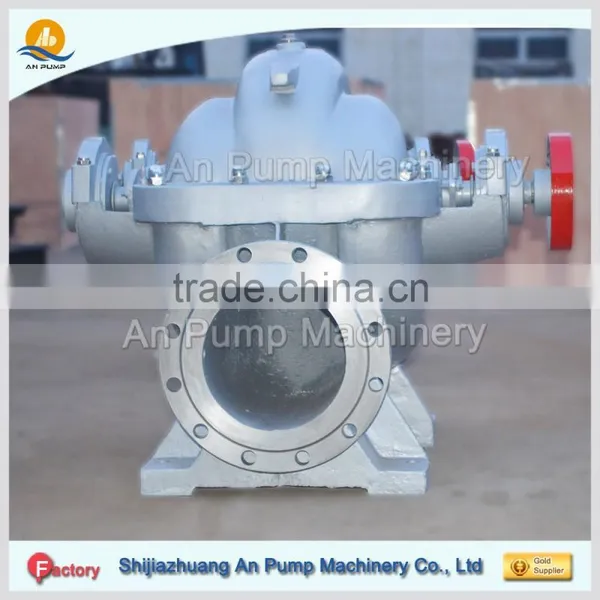

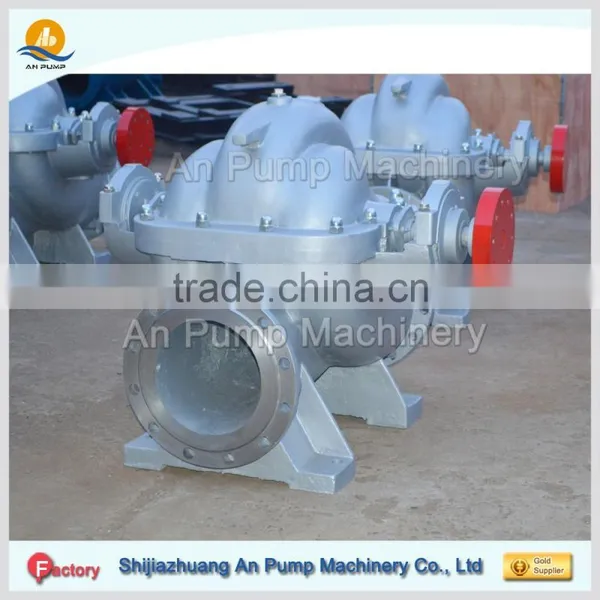

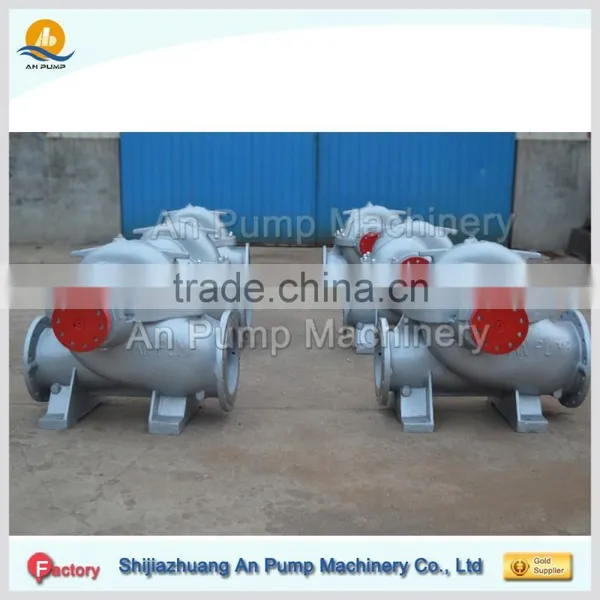

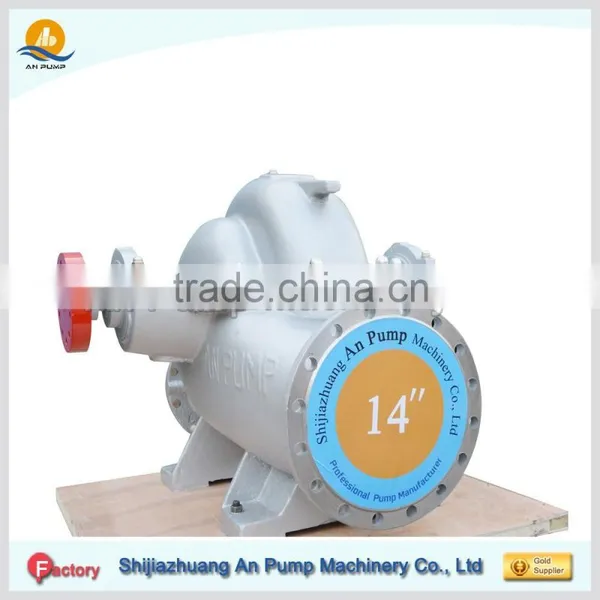

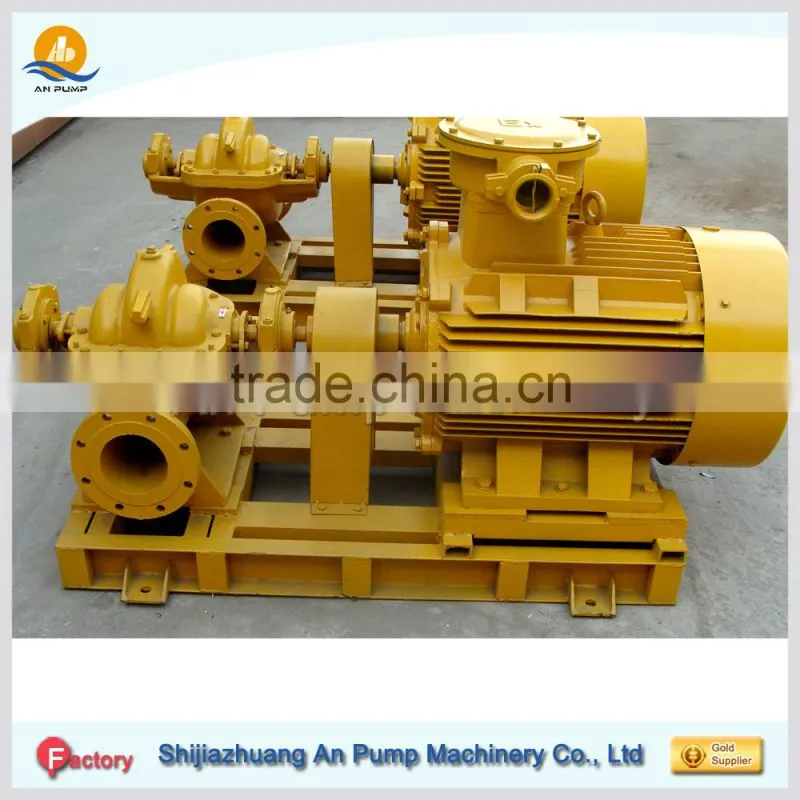

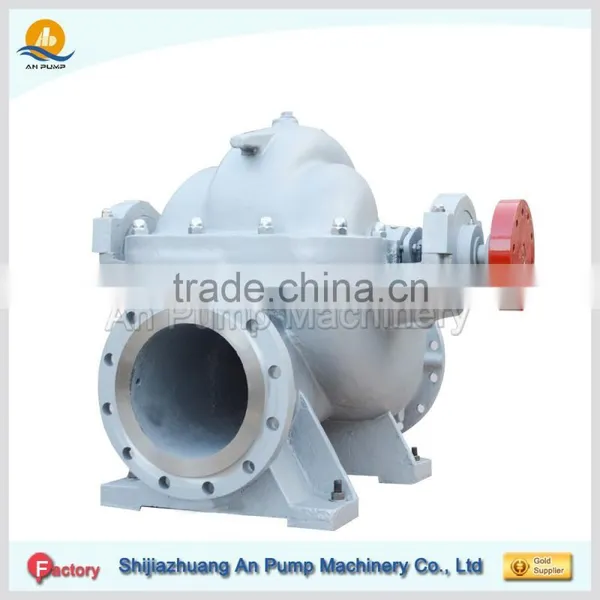

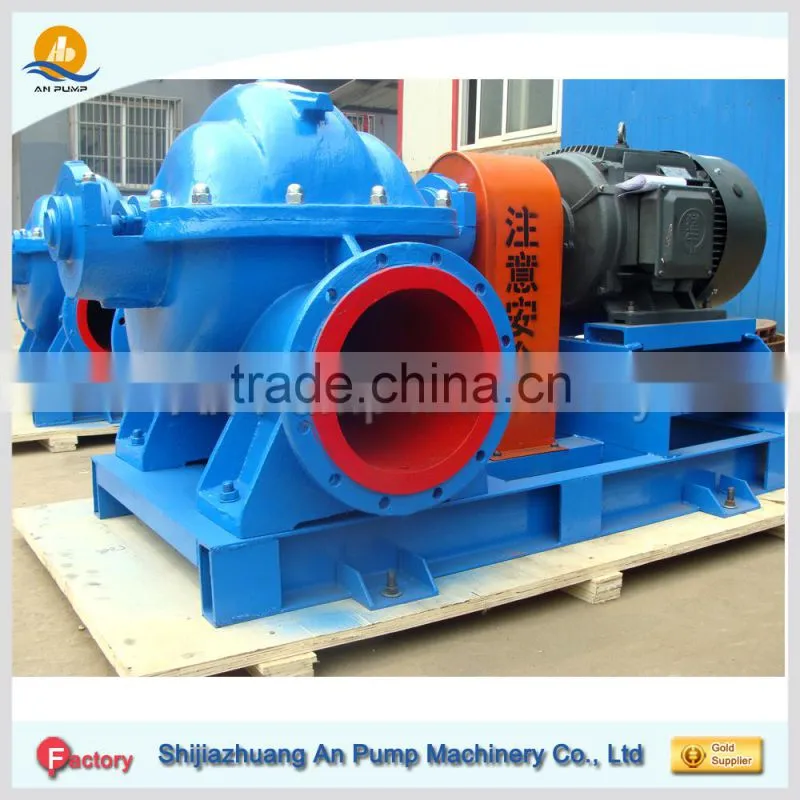

Stainless steel Split Casing sea water Pump Pictures
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
Guarantee and Service
1 year guarantee of whole machine set, except the flow parts
24hours *7 days service is available
Calling or door to door service
User manual and maintenance instruction is available
Shijiazhuang An Pump Machinery Co., Ltd is a professional manufacturer of slurry pumps, sewage pumps, clean water pumps, chemical pumps, fire pumps, irrigation pumps; An pump machinery company has its own strong type selection & design, research and development team, assure to provide you efficient, energy saving slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps type design, use and maintenance program.
An pump products slurry pumps, sewage pump, water pump, chemical pumps, fire pumps, irrigation pumps and other products are exported to over 90 countries around the world. The application covers many fields, such as dressing ship, tailings transportation, mining pumps, steel & power desulphurization, boiler feed water, construction, irrigation, water conservancy facilities, sewage treatment.
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
