high chrome river gravel sand suction pump sand dredge pump

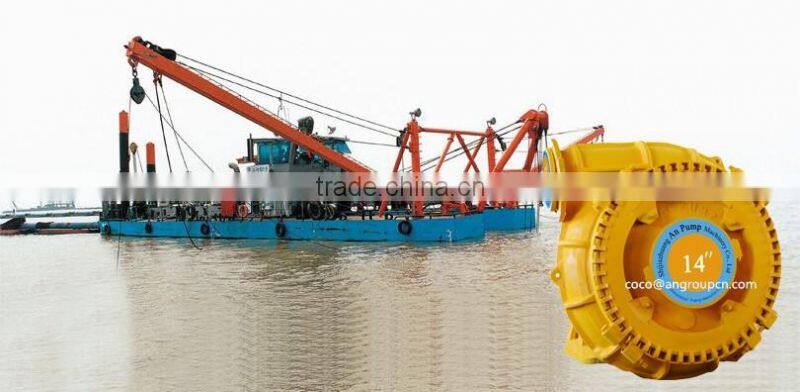

Application for high chrome river gravel sand suction pump sand dredge pump
Suction Hopper Dredging
Dredging
Barge Loading
Sand Reclamation
Mill Discharge
Sugar Beet
Cyclone Feed
Slag Granulation
high chrome river gravel sand suction pump sand dredge pump specification
Sand dredging pump(ISO9001)
1.Horizontal sand gravel Pump
2.Size: 25mm-450mm
3.Capacity: max 3400 m3/hr
4.Head: max 120m
5.Particle Size: max 260m
Size (discharge): 1" to 18" (25 mm - 450 mm)
Capacity: To 3400 m3/hr
Head: T0 120 m
Particle Size: To 260 mm
Concentration: To 60%
Material: metal:High chrome alloy etc
high chrome river gravel sand suction pump sand dredge pump specification
1. Horizontal, cantilevered, centrifugal, single stage sand dredging pump
2.Long bearing life: The bearing assembly is with large diameter shaft and short overhang.
3. Wear resistant and anti-abrasion wet parts: High chrome alloy and rubber etc. They are completely interchangeable with each other
4. Easily replaceable liners, Liners are bolted to the casing.
5. Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
6 Discharge direction can be positioned at intervals of 360 degrees.
7. Simple maintenance throat-bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8. Sealing type: pcking seal,impeller sealing and mechanical seal.
9. Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
10.Certification:ISO,CE
11.Welcome OEM
high chrome river gravel sand suction pump sand dredge pump parameter
Pump Model |
AMG Series Gravel Pump |
Impeller |
|||||
Allowable |
Clear Water Performance |
Dia. |
|||||
Max.Power |
Capacity Q |
Head |
Speed |
Eff. |
NPSH |
||
m3/h |
H(m) |
n(r/min) |
η% |
(m) |
|||
6/4AMG |
60 |
36-250 |
5-52 |
600-1400 |
58 |
2.5-3.5 |
378 |
8/6AMG |
120 |
126-576 |
6-45 |
800-1400 |
60 |
3-4.5 |
378 |
10/8AMG |
560 |
216-936 |
8-52 |
500-1000 |
65 |
3-7.5 |
533 |
10/8AMG |
560 |
180-1440 |
24-80 |
500-950 |
72 |
2.5-5 |
711 |
12/10AMG |
600 |
360-1440 |
10-60 |
400-850 |
65 |
1.5-4.5 |
667 |
12/10AMG |
1200 |
288-2808 |
16-80 |
350-700 |
73 |
2-10 |
950 |
14/12AMG |
1200 |
576-3024 |
8-70 |
300-700 |
68 |
2-8 |
864 |
14/12AMG |
600 |
720-3600 |
18-44 |
300-500 |
70 |
3-9 |
1016 |
16/14AMG |
1200 |
324-3600 |
26-70 |
300-500 |
72 |
3-6 |
1270 |
18/16AMG |
1200 |
720-4320 |
12-48 |
250-500 |
72 |
3-6 |
1067 |
20/18AMG |
1200 |
1080-5400 |
18-65 |
200-400 |
68 |
3-6 |
1270 |

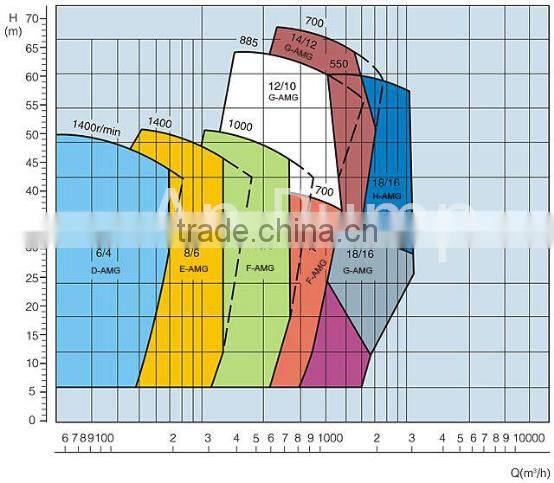

high chrome river gravel sand suction pump sand dredge pump curve
high chrome river gravel sand suction pump sand dredge pump structure
1.Shaft |
2.Frame plate |
3.Impeller stripping ring |
4.Shaft spacer |
5.Sealing assembly |
6.Bowl |
7.Frame plate liner insert |
8. Pump casing |
9.Adapter plate clamp ring |
10.Pump cover |
11.Throat bush |
12.Impeller |
13.Flange |
||
high chrome river gravel sand suction pump sand dredge pump advantage
Pecial impellers designed to prevent damage when delivery solids
The impeller and volute made of high chrome alloy
Specialized Test Equipment
Anti-rust treatment casting
CE, ISO, SGS certification
high chrome river gravel sand suction pump sand dredge pump packing and shipping
Our Services
1. Offer Large capacity pump solutions
2. Selection
3. OEM available
4. ODM available
5. Design
6. Installation
7. Maintenance
Our Main Products
Some clients visit our factory
Learn more , please contact us directly.
