rubebr slurry pump cover plate, OEM is available

Specifications

Shijiazhuang An Pump Machinery Co., Ltd, the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers

Centrifugal slurry pump spare parts design features

 Bearing assembly

--A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only  four through bolts are required to hold the cartridge type housing in the frame.

Liners

--Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.

Casing

--Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

Impeller

--front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

Throatbush

--Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

One-pice frame--

A very robust onepice frame cradles the cartridge type bearing and shaft assembly. An extemal impeller adjustment mechanism is provided below the bearing housing

Function of Interchangeable slurry pump parts

Factory

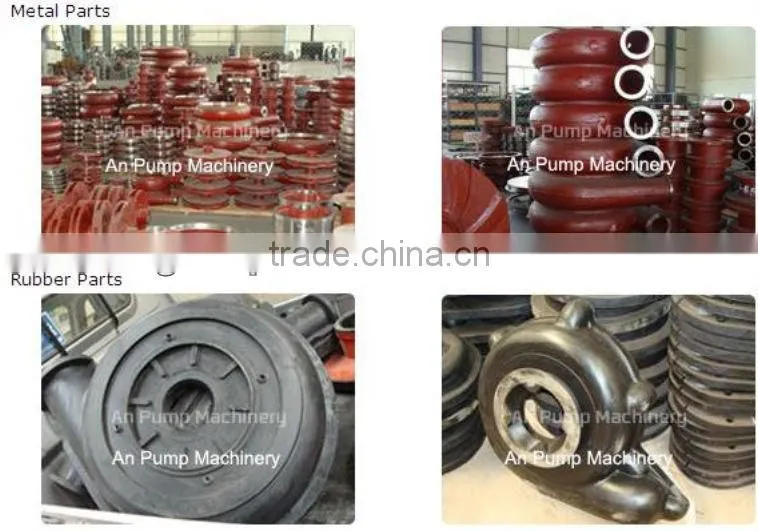

Pump spare parts

 Pumps In Stock
