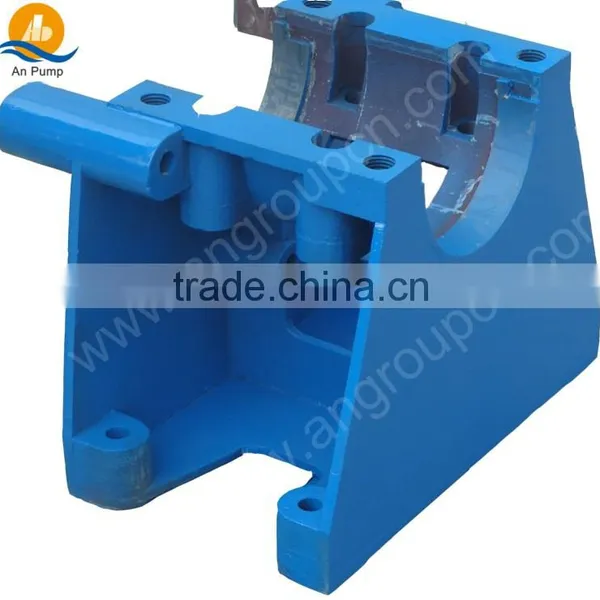

slurry pump frame plate, OEM is available

Specifications

Material: high Cr alloy and rubber
Long quality life
Interchangeable with other world famous brand slurry pump

Shijiazhuang An Pump Machinery Co., Ltd, the main pump products including slurry pump, desulfurization pump, gravel pump, sewage pump, impurity pump, split pump with large capacity, multistage pump with hjgh lift, centrifugal water pump and self priming pump, could meet various requirements of all the customers







Centrifugal slurry pump spare parts design features



 Bearing assembly

--A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only  four through bolts are required to hold the cartridge type housing in the frame.



Liners

--Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.





Casing

--Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.





Impeller

--front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.





Throatbush

--Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.





One-pice frame--

A very robust onepice frame cradles the cartridge type bearing and shaft assembly. An extemal impeller adjustment mechanism is provided below the bearing housing







Function of Interchangeable slurry pump parts



1	horizontal,end suction, cantilever horizontal mining single stage slurry pump parts.
2	All spare parts are standard world wide, and completely interchangeable with world famous brand(Australia brand)
3	Good price with high quality
4	Wear resistance metal,from High Cr 27 to Cr30
5	Metal and rubber liner choice,denpend on your requirements
6	Transmission:V belt drive, gear reducer drive, fluid coupling drive, frequency conversion drive devices.







Factory





Pump spare parts







 Pumps In Stock







Any inquiry on pumps or spare parts, please contact me.



Skype: pump_sales_sherry
