Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | AJY Centrifugal Mono Block Sugar Syrup Pump |
Theory: | Other, Centrifugal Pump, syrup centrifugal pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Other, High pressure stock pump | Application: | Other, sugar syrup pump |
Product Description

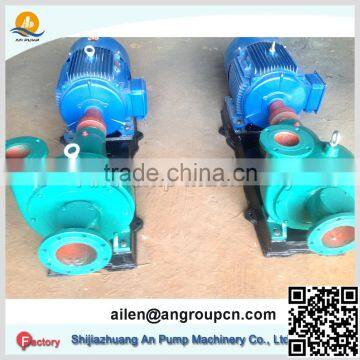

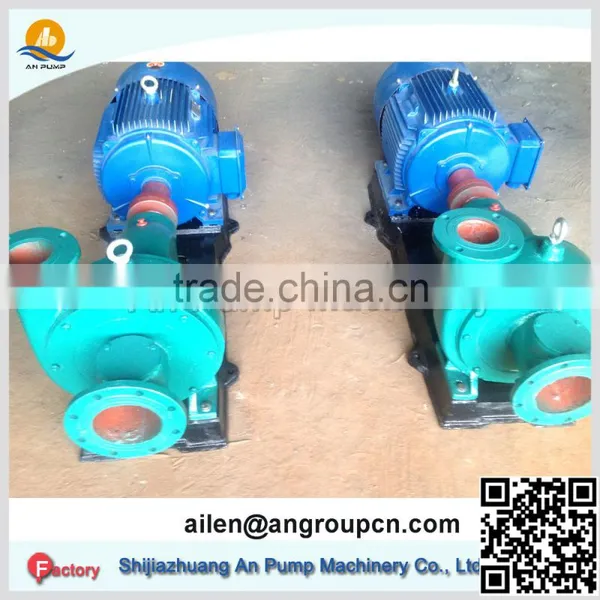

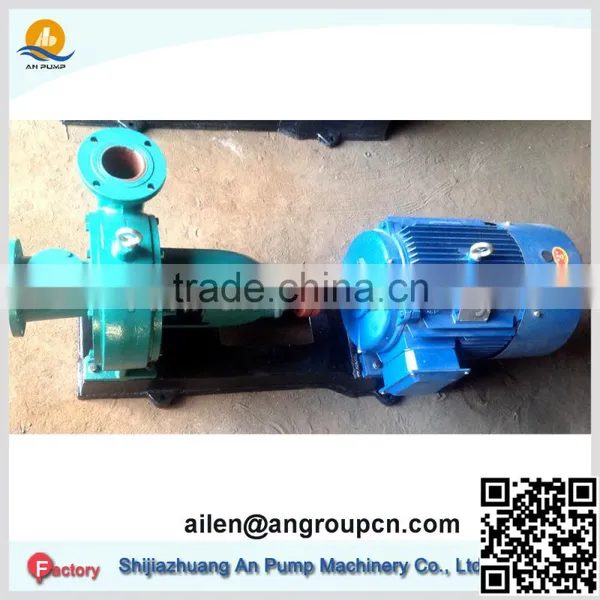

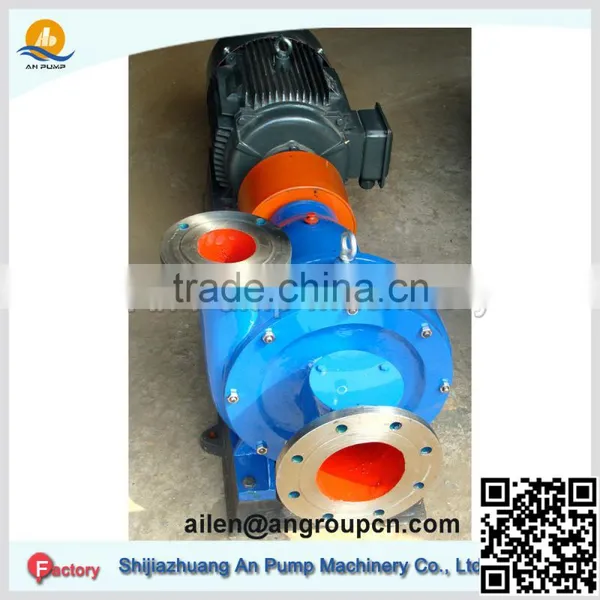

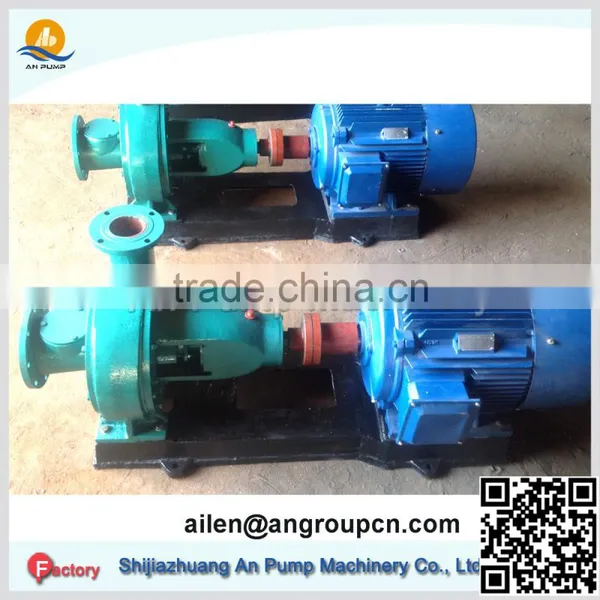

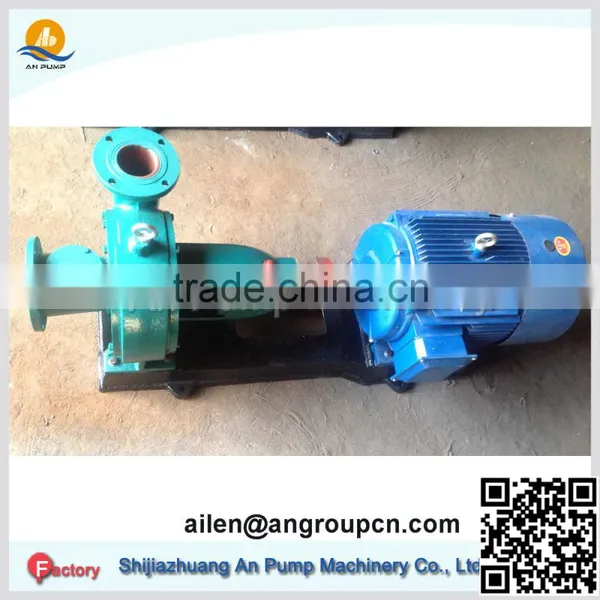

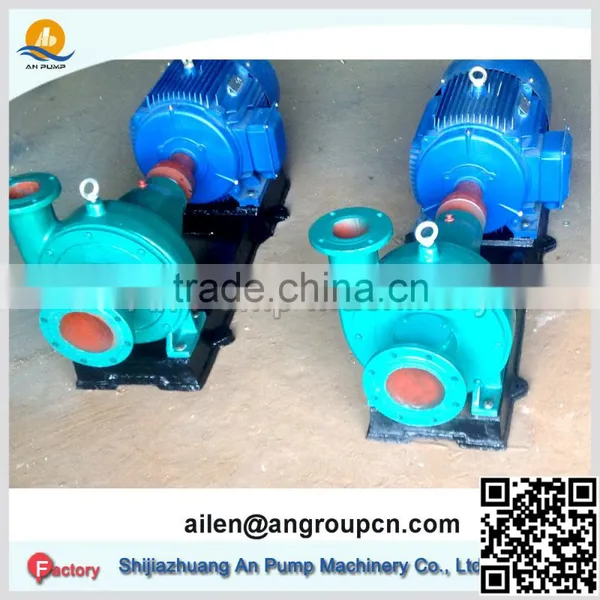

Centrifugal Mono Block Sugar Syrup Pump
Performance
Performance Ranging for Centrifugal Mono Block Sugar Syrup Pump
Flow rate: 80-2250m3/hr
Head: 13-80m
Medium slurrys concentration :less than 6%
Work temperature: ≤80°C
Overview
Production Overview of Centrifugal Mono Block Sugar Syrup Pump
Slag Transfer Self Priming Pump for Paper Making is one kind centrifugal single stage single suction paper plug and chemical sewage, paper pulp pump.
It is widely used in such as paper making industry, water treatment industry, sugar industry, soda reuse industry.
It can transport less than 6% concentration sewage water or fine slurrys from paper -making industry, sugar-making and starch industry etc., and it can also transport the non-abrasion medium in other industries .
Material
Type Material of Centrifugal Mono Block Sugar Syrup Pump
Material | Common(G) | Wear resistant(P) | Ultrawear resistant(N) | Stainless steel(F) |
Pump casing | HT200 | QT500-7 | Wear resistant | SS304 |
Pump cover | HT200 | QT500-7 | Wear resistant steel | SS304 |
Impeller | SS304 | Duplex SS | Duplex SS | Duplex SS |
Liner of front and behind | Wear resistant steel | Wear resistant steel | Wear resistant steel | Duplex SS |
Bearing body | HT250 | HT250 | HT250 | HT250 |
Shaft | 3Cr13 | 3Cr13 | 3Cr13 | 3Cr13 |
Shaft sleeve | 2Cr13 | 2Cr13 | 2Cr13 | SS304 |
Application
Application of Centrifugal Mono Block Sugar Syrup Pump
This pump is suitable for paper-making, starch and sugar making, chemical raw material transporation, industrial sewage water and public road project.
Construction
Construction of Centrifugal Mono Block Sugar Syrup Pump
1. This pump is single stage cantilever back-opening type. Esy to maintain, no need to take down the pipeline;
2. Pump inlet and outlet flanges is designed as Maximum working pressure: 16 bar;
3. Impeller is 3 vanes or 4 vanes semi-type, make wide passage open type can transport max 6% concentration slurrys sewage water can also transport the medium containing some gas;
4. All impeller is Precision Casting and through dynamic balance testing ;
5. The gap between the impeller and pump wear plate can be adjusted by the screw bolt on the p ump body ,so can keep Constant gap size between the impeller and pump wear plate ,so can have higher working efficiency !
6.The shaft seal mainly is single mechanical seal add packings , without cooling water single mechanical seal ,and packing seal three type .can choosing according to customer needs and practise needs;
7.Impeller fixed use the impeller screw bolts + lock washer type ,this type can also avoid the impeller screw bolts fall off or loose when pump shut down .
Performance Table
Performance table list for Centrifugal Mono Block Sugar Syrup Pump
Shipping
Shipping for Centrifugal Mono Block Sugar Syrup Pump
Contact Us
Contact us for Centrifugal Mono Block Sugar Syrup Pump
*~* *~**~* *~**~**~**~**~* *~**~**~**~**~**~**~**~**~**~**~**~* *~**~**~**~**~* *~*
*~* *~**~* *~**~**~**~**~* *~**~**~**~**~**~**~**~**~**~**~**~* *~**~**~**~**~* *~*
