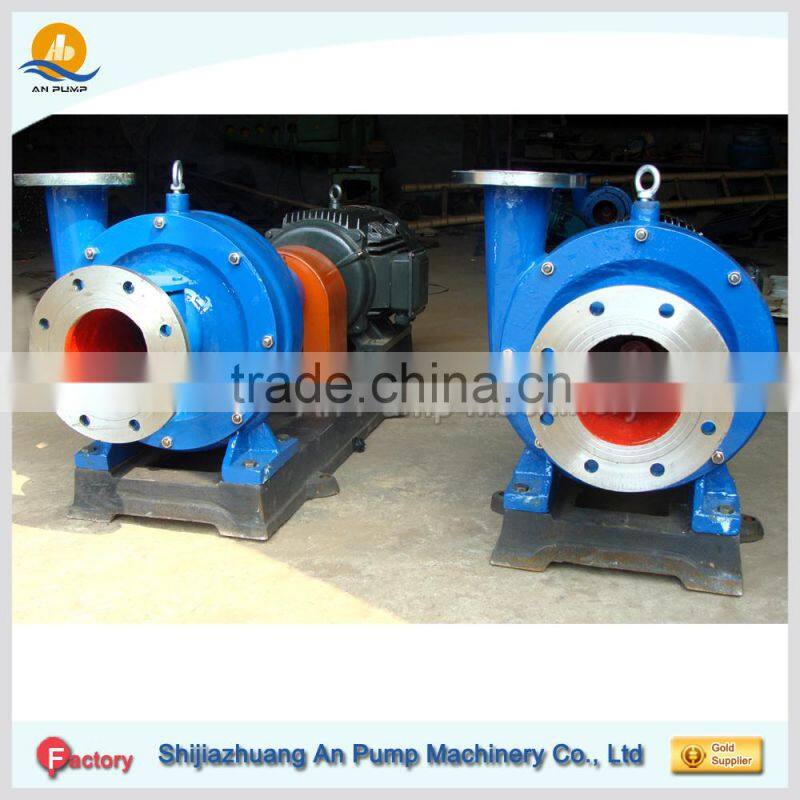

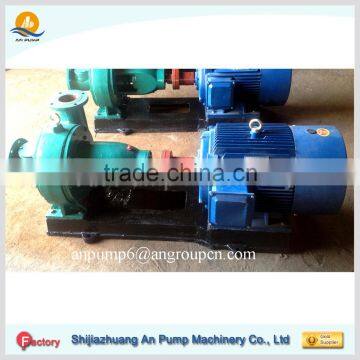

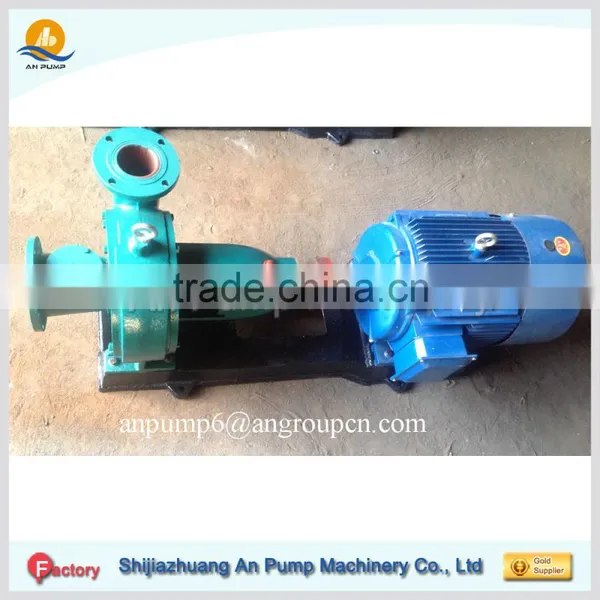

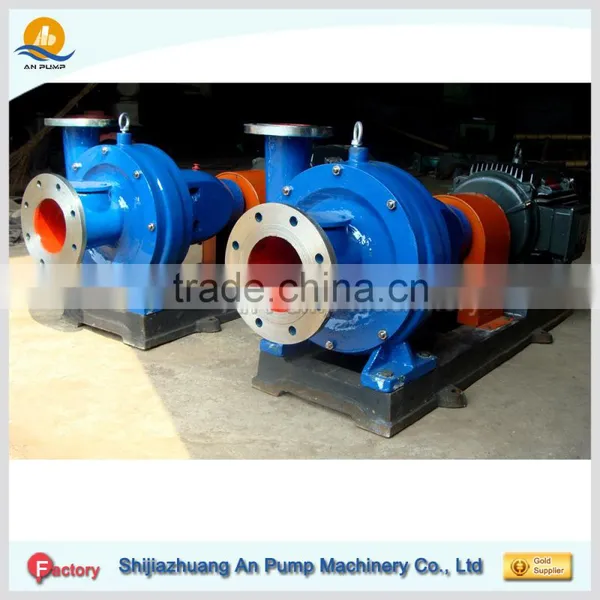

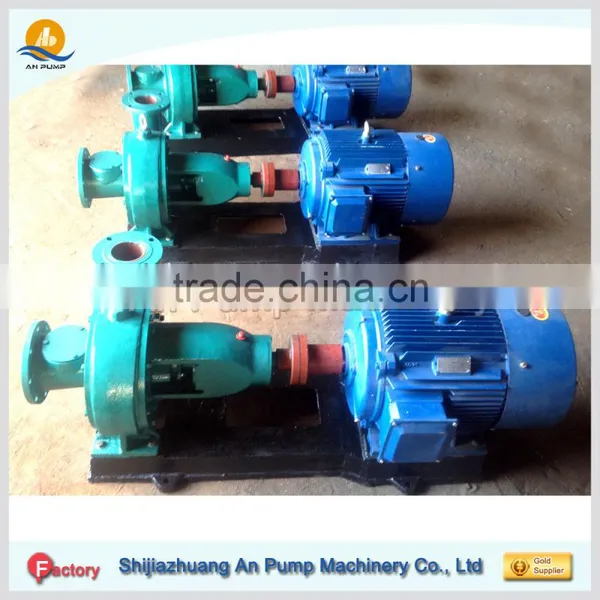

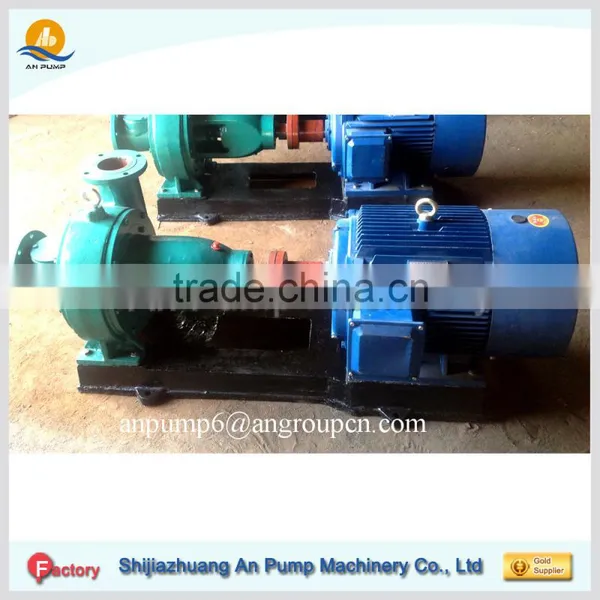

High concentration sugar cane juice pump
High concentration sugar cane juice pump Characteristic
1, High efficiency, energy saving, efficiency than the ordinary pulp pump up by an average of 3-10%, to save energy and reduce consumption of 15-30%
2, The cavitation performance is good, long service life: actual service life than the ordinary pulp pump can improve 2-3 times
3, Concentration is high, no jam: conveying pulp concentration 6% right
4, Reasonable structure, easy maintenance: pump head part adopts, before and after the open type structure, maintenance does not need to remove the line, just put the motor backward, the pump can be dismantled and maintenance.
High concentration sugar cane juice pump Technical Data
Type | AJY |
Capacity (m3/h) | 3.5-1200 |
Head (m) | 3.7-128 |
Speed (r/min) | 1450-2900 |
NPSHr (%) | 2.0-7.5 |
Eff. (%) | 86-95 |
Weight (kg) | 33-1720 |
Dia Inlet (mm) | 50-300 |
Dia Outlet (mm) | 32-250 |
High concentration sugar cane juice pump Applications
1, Paper making industry: used to transport concentration below 6% of the pulp and alkali recovery process intermediary qualitative cycle transfer, promotion, and pressure;
2, Sugar industry: used for conveying concentration below 4%, viscosity in the 150 best callus induction/s the following syrup;
3, City sewage industry: used for sewage treatment process medium circulation transfer, promotion, and pressure.
High concentration sugar cane juice pump Features
Working Principle | Centrifugal |
Main applications | sugar, paper pulp, molasses |
Driver | Electric motor, Diesel motor |
Power Specs | 380/415 V 3phase; 50hz/60hz etc. |
Max. permissible fluid temperature | 80°C /150°C |
Type of connection | Flange |
Installation position | Horizontal |
Casing/Inner parts material | Cast iron, Stainless Steel/Cast iron, Stainless steel, Bronze |
Shaft seal type | Mechanical seal |
Advantage
♦ 20 years in producing pumps
♦ Independent Design
♦ advanced technology from Australia, Canada, America
♦ OEM available
♦ Specialized Test Equipment
♦ Anti-rust treatment casting
♦ Supply reasonable suggestion for choosing pumps
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
- 1 year guarantee of whole machine set, except the flow parts
- 24hours *7 days service is available
- Calling or door to door service
- User manual and maintenance instruction is available
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Welcome to your inquiry about the High head paper pulp pump made in China!
