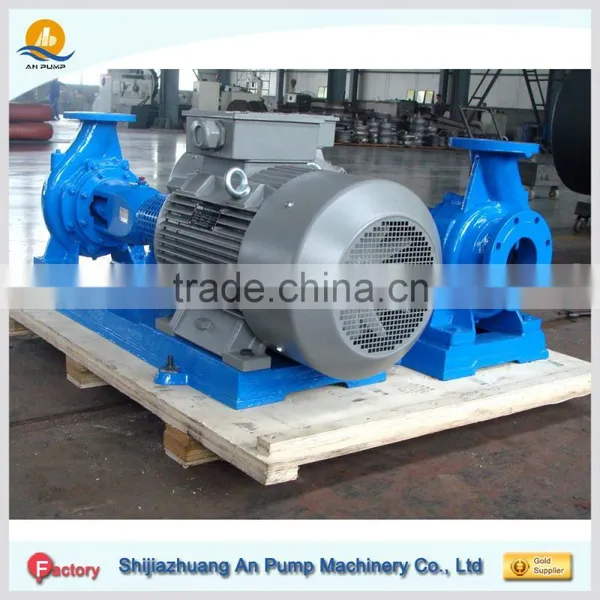

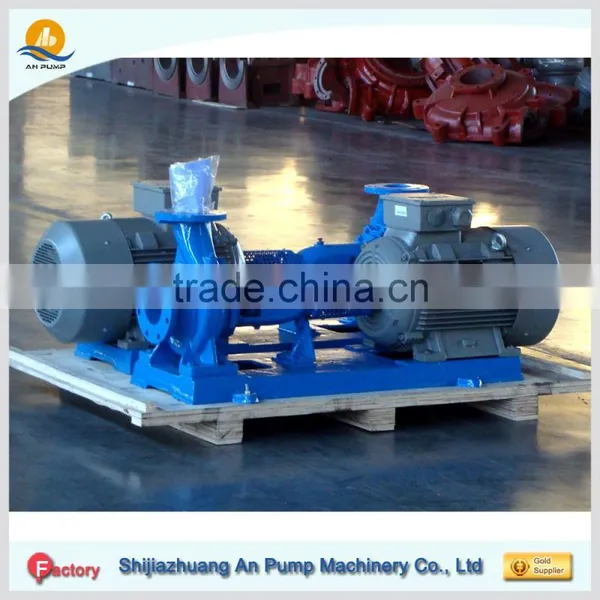

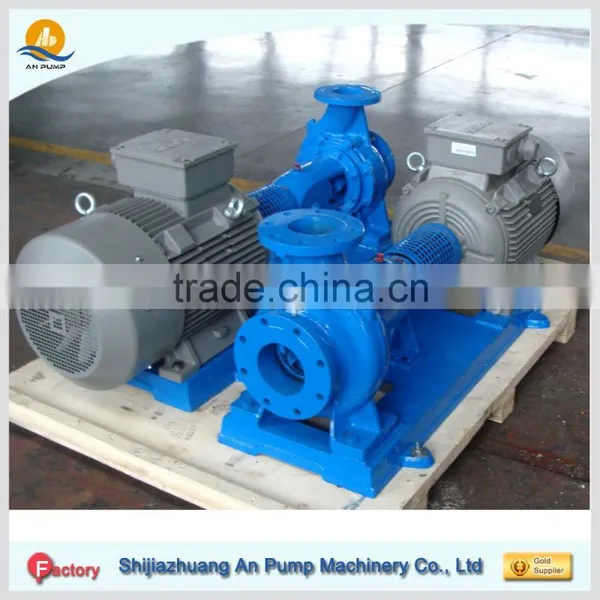

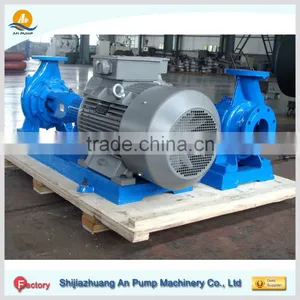

electric irrigation 45kw monoblock centrifugal water pump
Overview
QI modelchemical pump is single-stage end-suction (axial suction) cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar towater and without solid particles. The marked and rated performances and dimensions adopt ISO2858 international standard.
It has such characteristics as wide range of performance, high efficiency, high mechanical, chemical and physical level and convenient main tenance etc.
The temperature of transported media of QI model chemical pump is -20-180 C deg .
Through adopting cooling method, it can transport me dia with higher temperatur e if necessary,and is applied to tran sport various corrosive media or media in which pollution is forbidden similar to water in such industries as chemical industry, petroleum, metallurgy , electric power, papermaking, food, pharmacy and synthetic fiber etc.
Range of Performance
Capacity: 3 - 1200 m3/hr
Head: 3 - 128 m
Speed: 2900r/min and1450 rpm
Power of fitted motor: 0.55 - 132kW
Inlet diameter: 32 - 300 mm
The highest work pressure 1.6MPa
QI model pumps are classified as 29 basictypes, among which,22 two-speed (2900,1450r/min) types being
transformedafter cut by the impeller diameter of A and B and C models, the total specifications can be 112.
Pump Structure
| 1. Pump Casing | 4. Impeller nut | 7. Mid bracket |
| 2. Impeller | 5. Pump cover | 8. Shaft |
| 3. Sealing ring | 6. Seal parts | 9. Hanging stand |
QI Type Pump Performance Data
Pump Type |
Capacity |
Head |
Motor Power(kw) |
QI 50 |
3.1 - 14 |
3.7-82 |
0.55-11 |
QI 65 |
6.1 - 30 |
3.8-115.4 |
0.55-30 |
QI 80 |
12 - 60 |
3.6-128 |
0.55-37 |
QI 100 |
24.3 - 120 |
3.7-133 |
1.1-75 |
QI 125 |
51.4 - 240 |
8.4-133 |
4-110 |
QI 150 |
104 - 240 |
13-53 |
11-45 |
QI 200 |
194-460 |
13.1-55 |
22-90 |
QI 250 |
320-760 |
22.6-52 |
75-132 |
QI 300 |
530-1200 |
21.9-38 |
90-132 |

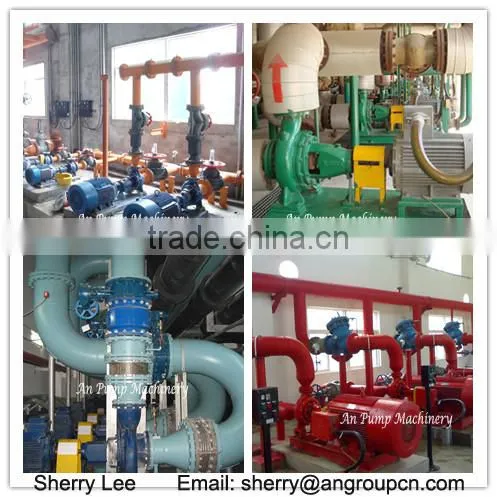

QI Series Pump Application
1. Cleanout system.
2. Every series of food machining and medicine produce
3. Environment protect system.
4. Waste water treatment for papermaking, metallurgy, galvanization, smelting, dye.
5. Electroplate and Dyeing system.
6. Industrial and chemical sump treatment
7. Explosion proof motor for oil, alcohol and other explosive liquid

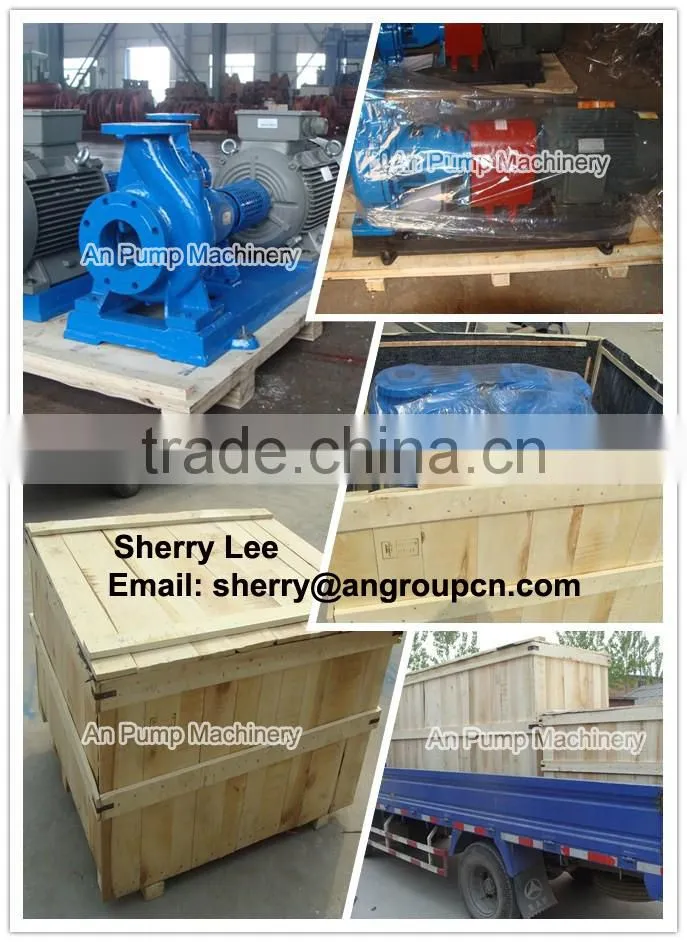

Packing and Shipping for sea water pump
We have our own factory produce pumps, include cast, mechanical process, lather process, heat treatment and assembly.
Our professional engineers team could offer suitable pump oslution, accoring your requirements.
And we also could offer on site service.
24-hours oliner, please fell free to contact ue any time, we are at your service.
Lots of centrifugal pump and parts in stock

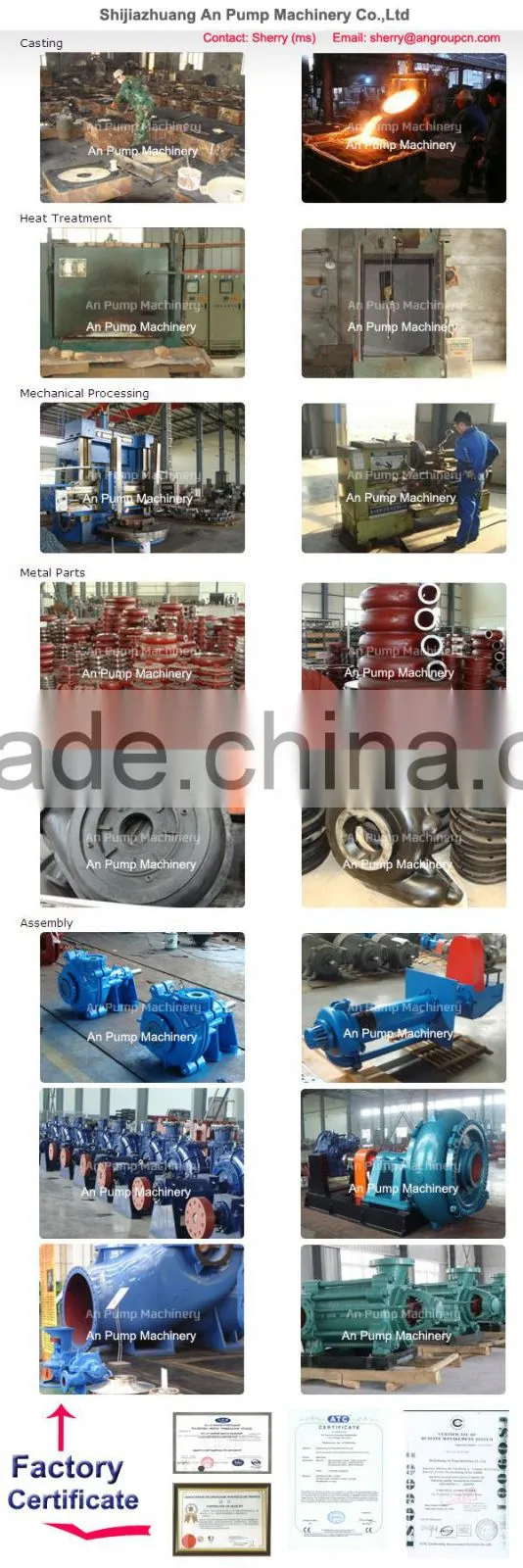

Factory of An Pump Machinery
FAQ
1. Q: Are you a trading company or manufacture?
A: An Pump Machinery Co., Ltd is a real large professional manufacturer more than 32 years, in China, produce with our own factory.
2. Q: what's your factory workshops ?
A: My factoryproduce include casting, mechanical process, lathe process, heat treatment, assembly, and test etc.
Warmly welcome to visit & test my factory any time.
3. Q: How about your submersible sewage pump price?
A: We are sure our price is factory price, and insist high quality for our long term cooperation.
4. Q: What is your QI series sea water pump material ?
A: QI sea water pump, we could produce cast iron, cast steel, stainless steel, bronze etc.
Produce as your requirements is ok.
5.Q: What kind of liquid can your QI end suction pump transfer?
A: Liquid range: water, sea water, hot water, sewage, chemical liquid, waster water etc.
6. Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Our factory has 15~30 QC.
7. Q: Is it easy for customers to change the parts by myself ?
A: yes, the structure is simple,customers can change it very easily. We will also supply you maintenance tools for free.
8. Q: How to do if the pump or parts have operation problem within your warranty?
A: Tell me details timely, and show me pictures, we will send you solution at once without any hesistation.
9. Q: Can you install the motor or diesel engine with the pump for us ?
A: yes, we can, it's no problem, we are experienced in this .
10: Q: .we don't know which pump model we need ,can you help us ?
A: yes, please tell me your detail requirements, include liquid, flow rate, head etc,
my engineers team wiil calculate & select most suitable pump model for you, offer pump solution for you.
11. Q:How long can you reply us if we send an inquiry ?
A: Generall with in 2 hours, we will send you official quotation sheet, with price, technology data, performance curve, dimension etc.
12. Q: How can i contact you ?
A: Contact detail onformation
Sherry Lee (Ms)
Email: sherry @ angroupcn dot com
Online Skype ID: pump_sales_sherry
Whatsapp No: 008615233116920
Anything thing need help, please call me any time, i will try best to help you
