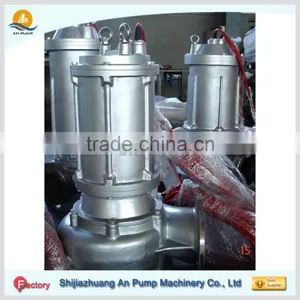

15HP submersible seawater treatment pump
- 8000 Set / Sets per Month
- Tianjin Port China
- T/T Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Hebei, China | Brand Name: | An Pump | Model Number: | ASW |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Diesel |
Pressure: | Other, standard | Application: | Sewage |
Product Description
The pump has a high efficiency energy-saving, non-blocking, anti-winding, long life and other notable features can be installed with an automatic coupling device. And a common type, auto-mixing type, auto-shredding type, auto-mixing chopped-and anti-flushing-type five kinds of models.
According to market needs, the pump is divided into common type (excluding the ultra-mild leakage
protection device) and full insurance-type two kinds. Full insurance-type submersible sewage pump must
an pump supporting the use of dedicated control cabinet to achieve the perfect results.
Performance das of 15HP submersible seawater treatment pump
No | Type | (mm) Outlet dia. | (m³/h) Capacity | (m) Head | (rpm) Speed | (Kw) Power |
28 | 80AQW43-13-3 | 80 | 22 | 14.5 | 2900 | 3 |
43 | 13 | |||||
52 | 11 | |||||
29 | 80AQW45-22-5.5 | 80 | 23 | 24.2 | 2900 | 5.5 |
45 | 22 | |||||
53.5 | 19.8 | |||||
30 | 80AQW50-10-3 | 80 | 35 | 11.5 | 2900 | 3 |
50 | 10 | |||||
60 | 8 | |||||
31 | 80AQW50-25-7.5 | 80 | 35 | 26.5 | 2900 | 7.5 |
50 | 25 | |||||
60 | 23.5 | |||||
32 | 80AQW30-13-4 | 80 | 42 | 14.5 | 2900 | 4 |
60 | 13 | |||||
72 | 11 | |||||
33 | 100AQW50-22-7.5 | 100 | 35 | 23.5 | 1450 | 7.5 |
50 | 22 | |||||
60 | 20.5 | |||||
34 | 100AQW65-15-5.5 | 100 | 45.5 | 17.5 | 1450 | 5.5 |
65 | 15 | |||||
78 | 12 | |||||
35 | 100AQW80-9-4 | 100 | 56 | 11 | 1450 | 4 |
80 | 9 | |||||
90 | 7 | |||||
36 | 100AQW80-20-7.5 | 100 | 56 | 22.5 | 1450 | 7.5 |
80 | 20 | |||||
96 | 17 | |||||
37 | 100AQW100-7-4 | 100 | 70 | 9.4 | 1450 | 4 |
100 | 7 | |||||
120 | 5.6 | |||||
38 | 100AQW100-15-7.5 | 100 | 70 | 17.5 | 1450 | 7.5 |
100 | 15 | |||||
120 | 12.5 |
Application of 15HP submersible seawater treatment pump
water
sewage, waste water
harbour construction
ash transfer
silt removal
sand and gravel pumping
barge and tank clean out
lime slurry
coal runoff sumps
food waste
Structure of 15HP submersible seawater treatment pump
Bearing:
Imported SKF of NTN bearing, which, with a reasonable configuration, can oxtend the duration of the pump.
Cooling:
The buit-in cooling system can have the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system.
Motor:
Of F class insulation, max. working temperatures 155 C, and of a protective grade IPX8 with the effective seal.
Mechanical seal:
Use high quality mechanic seal , two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
Oil chamber:
Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor.
Impeller:
With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.
Pump casing:
Use the know-how of CAD/CAM to make it of max. efficiency and min wearability
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft preven ts against contacting with the medium to protect is from corrosion.
Installation Type of sewage treatment high pressure water pump
Package of 15HP submersible seawater treatment pump
An Pump Machinery Company own main equipment introduction - Equipment advantages:
An Pump Machinery have sophisticated production equipment of slurry pump, sewage pump, water pump, chemical pump, fire pump, irrigation pump etc.
Casting workshop: Computer simulation molding and product application; precision casting aluminum mold; resin sand, coated sand casting technology. Three sets of casting medium frequency furnaces make a batch of clean, smooth casting products.
Casting technology advantages: 8 casting Engineers with more than 15 years experience, 28 operating technicians with more than 10 years experience.
Heat treatment workshop: 4 sets of fully automatic curve heat treatment furnace, controlled by computer, appropriately adjust heat treatment process.
Machining center: CNC vertical lathe, CNC wire-cut machine, CNC boring and milling machine, CNC grinding machines and other production line equipment constitute machining CNC centers, Processing precision of products fully meet the requirements.
Machining technology advantages: 15 Mechanical Engineers with more than 13 years experience, 32 operating technicians with more than 8 years working experience.
Assembly workshop: a variety of sophisticated assembly equipment and 4 operating technicians with 20 years working age and 11 operating technicians with more than 8 years working age,These experienced technicians assemble a batch of high precision and high stability of pump equipment.
Detection proofread: Using advanced detection equipment for the pump signal acquisition, digital filtering and calibration to ensure data accuracy and ensure highly consistent of three-dimensional animation simulation with the actual product.
Laboratory testing: bearing vibration analyzer, carbon and sulfur analyzer, universal testing machine, optical scales, spectrometers, liquid analyzers and other equipment constitute laboratory testing center, testing links control the material, material ratio, product hardness and processing precision practically and effectively.
These advanced manufacturing and testing equipment ensure the product quality with high precision and material stability of slurry pump, sewage pump, water pump, chemical pump, fire pump, irrigation pump. It is a powerful guarantee of quality and appearance of pumps and parts.
Quality Commitment: We pledge every order of An Pump Machinery with a detailed quality assurance, for your unworried, secure and relieved for using our products. We will do best to win your trust to An Pump!
Contact us for more details of 15HP submersible seawater treatment pump
