Power generation plant limestone gypsum wet flue pump
Power generation plant limestone gypsum wet flue pump Working Range
- Discharge Diameters 1” to 18” (25mm to 450mm)
- Heads Range to 240ft (73m)
- Flow Rate to 22,000gpm (5,000m3/h)
- Casing Pressure Tolerance 300psi (2,020kPa)
Power generation plant limestone gypsum wet flue pump Features
- Liners - Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints. Easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.
- Impeller - Hard metal and molded elastomer impellers are completely interchangeable. Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
- Throat bush - Hard metal and molded elastomer impellers are completely interchangeable. Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
- Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.
- Expeller Seal(Centrifugal Seal) - Available with low flow water flush or zero flow (grease lubricated) options to provide exceptional sealing where water introduction to the seal is intolerable or limited.
- Stuffing Box - Gland sealing with packing and lantern ring.
- Pump Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.
- Frame Base - A very robust one-piece frame cradles the cartridge type bearing and shaft assembly. An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.
Power generation plant limestone gypsum wet flue pump Markets
- Cement and Aggregate
- Fertilizer
- Food & Beverage
- Metals Processing
- Minerals Processing
- Mining
- Power Generation
- Pulp and Paper
- Water Treatment
Applications
- Cyclone, Filter, and Screen Feed
- Kiln Feed and Transfer
- Lime Slurry
- Loading/Unloading
- SAG and Ball Mill Discharge
- Slurry Transfer
- Tailings Transfer
- Thickener Under/Over Flow
Power generation plant limestone gypsum wet flue pump Design Features
| 1 | Extra Thick Wet End Components For extended wear life. |
| 2 | Replaceable Wear Liner Low maintenance cost. |
| 3 | Heavy Duty Power End Increased mean time between failures. |
| 4 | External Impeller Adjustment Maintains original efficiency; simple and fast. |
| 5 | Maximum Parts Interchangeability Entire line uses just five power ends. |
| 6 | Sealing Flexibility Choice of packing, mechanical seals or Dynamic Seal. |
Specifications details of Power generation plant limestone gypsum wet flue pump
| Model |
Flow (m3/h) |
Head (m) |
Frame Type |
Max.Power (kW) |
Max.Particle Size (mm) |
Material |
| AMB1.5x1 | 3-40 | 5-68 | B | 15 | 20 | High Cr Alloy / Rubber |
| AMB2x1.5 | 7-87 | 8-63 | B | 15 | 19 | High Cr Alloy / Rubber |
| AMC3x2 | 21-139 | 10-64 | C | 30 | 25 | High Cr Alloy / Rubber |
| AMC4x3 | 14-201 | 7-53 | C | 30 | 28 | High Cr Alloy / Rubber |
| AMD4x3 | 14-201 | 7-53 | D | 60 | 28 | High Cr Alloy / Rubber |
| AMD6x4 | 22-504 | 11-62 | D | 60 | 44 | High Cr Alloy / Rubber |
| AME6x4 | 22-504 | 11-62 | E | 120 | 44 | High Cr Alloy / Rubber |
| AME8x6 | 43-900 | 8-63 | F | 120 | 63 | High Cr Alloy / Rubber |
| AMST10x8 | 220-1800 | 9-65 | ST | 560 | 76 | High Cr Alloy / Rubber |
| AMST12x10 | 35-2088 | 7-67 | ST | 560 | 86 | High Cr Alloy |
| AMST14x12 | 40-3564 | 11-65 | ST | 560 | 90 | High Cr Alloy |
| AMTU16x14 | 324-4700 | 10-65 | TU | 1200 | 123 | High Cr Alloy |
| AMTU20x18 | 570-6700 | 11-59 | TU | 1200 | 130 | High Cr Alloy |
Power generation plant limestone gypsum wet flue pump performance

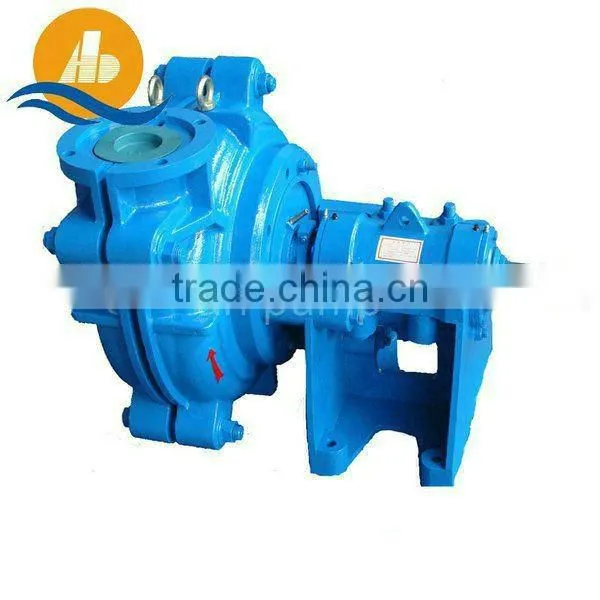

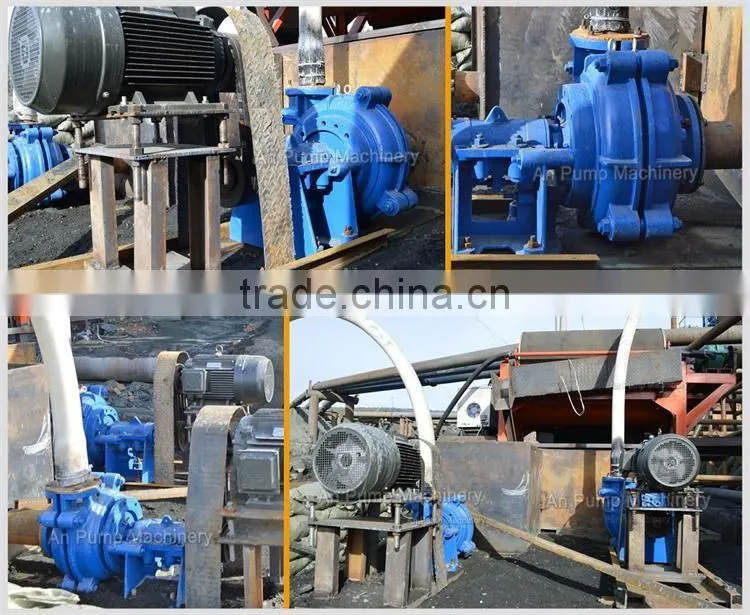

Power generation plant limestone gypsum wet flue pump photos
Power generation plant limestone gypsum wet flue pump Structure Show
- Standard wooden cases package, if special requirements, should be inform in advance;
- Shipping by sea, by air, by train and truck all available;
- Delivery date: vary from 5-30days according to different model and quantity.
- 1 year guarantee of whole machine set, except the flow parts
- 24hours *7 days service is available
- Calling or door to door service
- User manual and maintenance instruction is available
Q1. Are you a manufacturer?
Yes, we have been in centrifugal pumps manufacturing and marketing industry over 32 years.
Q2. What markets do your pumps export to?
Europe, North & South America, SouthEast Asia, Africa, Oceanica, Middle East countries. Our overseas agent in Italy, Russia, Canada, France, America, Middle East, Asia and Africa are gradually improving.
Q3. What information should I let you know if I want to get a quotation?
Please let us know the pump capacity, head, medium, operation situation, quantity, etc. As much as your provide, the precision
and accurate model selection.
Q4. Is it available to print our own brand on the pump?
Totally acceptable as international rules.
Q5. How can I get the price of your pump?
You can connect with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
